MagnaFlow 2022-2025 Volkswagen Golf R NEO Series Cat-Back Performance Exhaust System

Part Number:19617

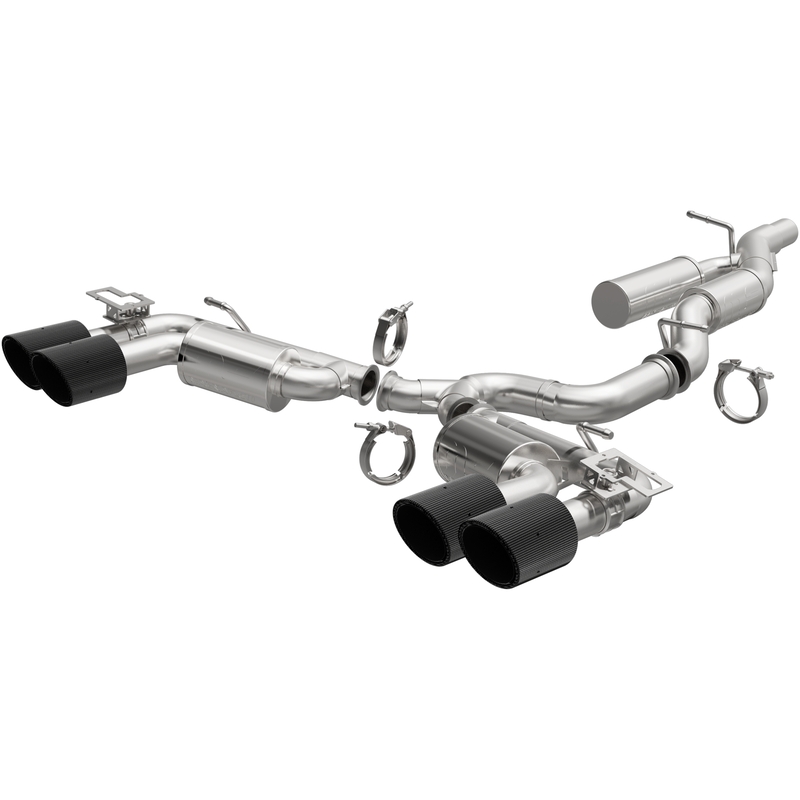

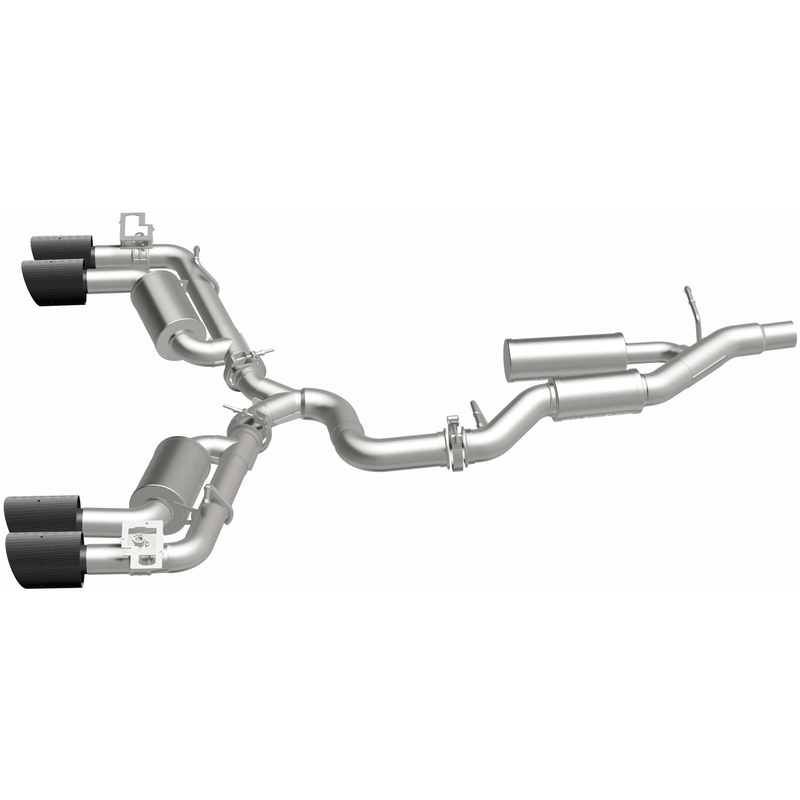

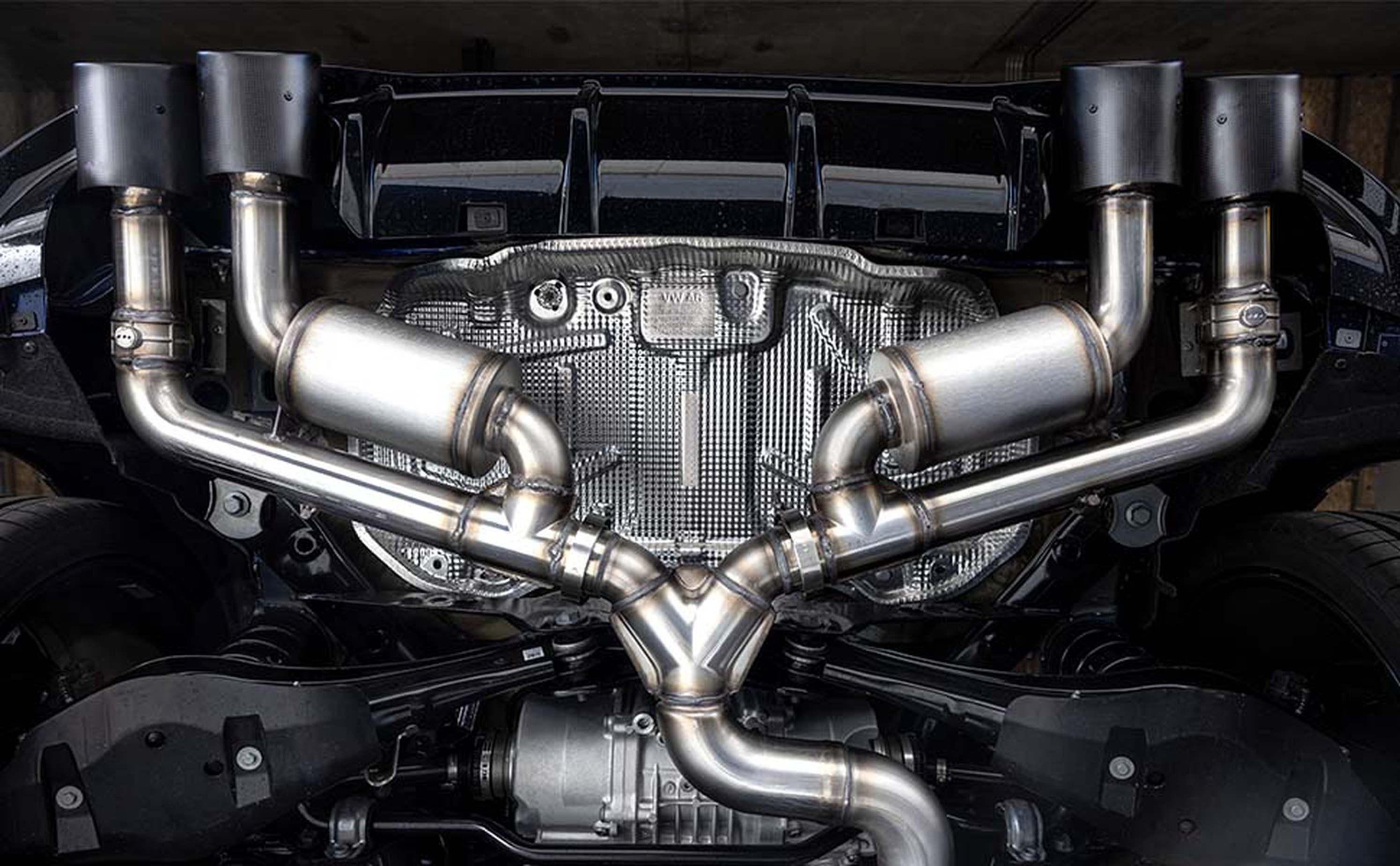

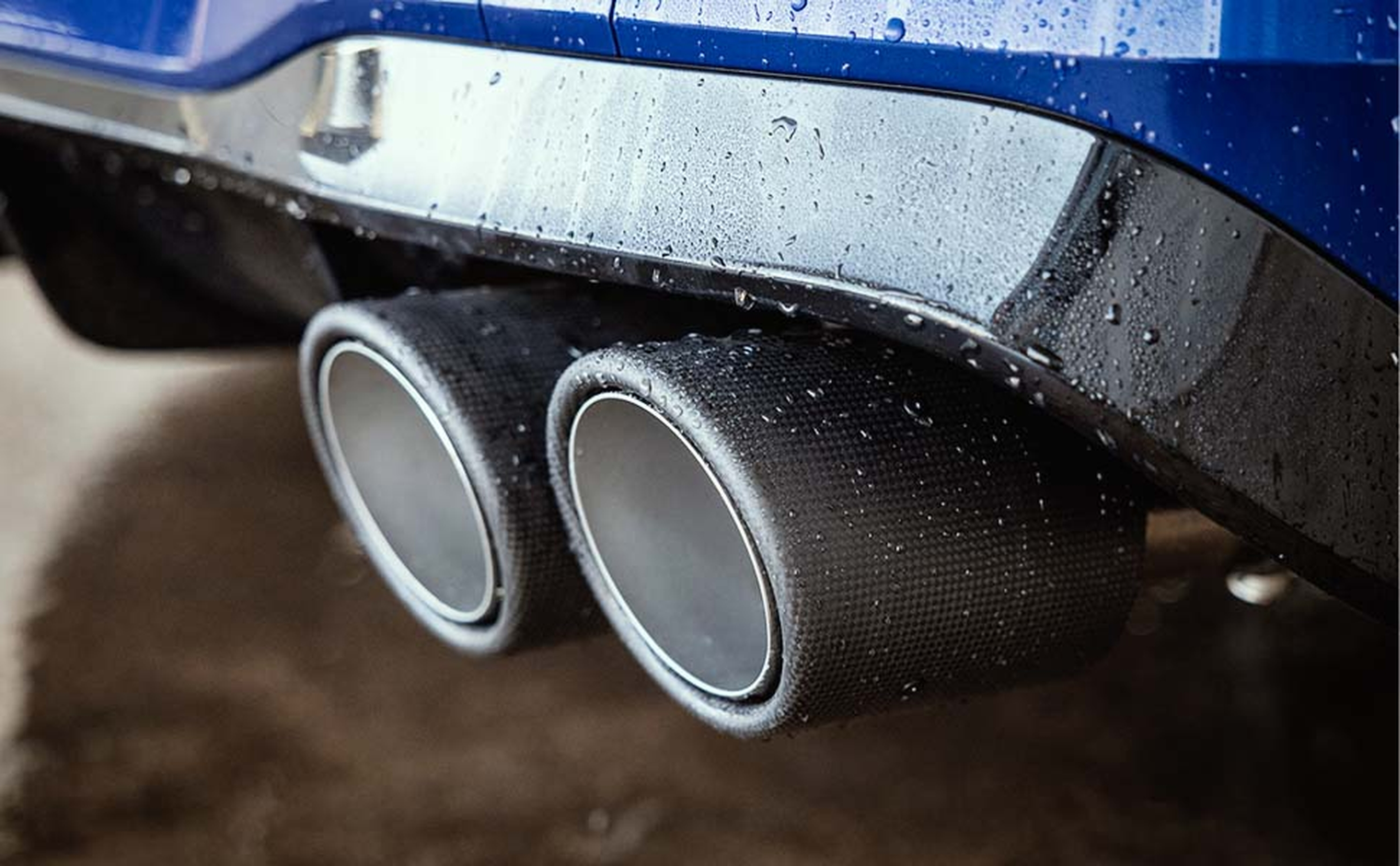

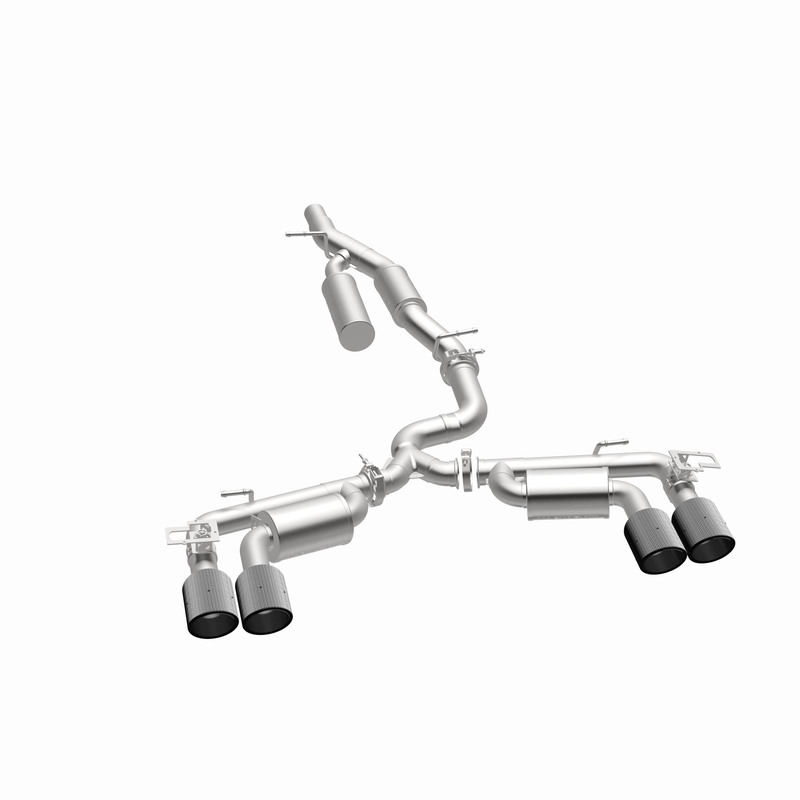

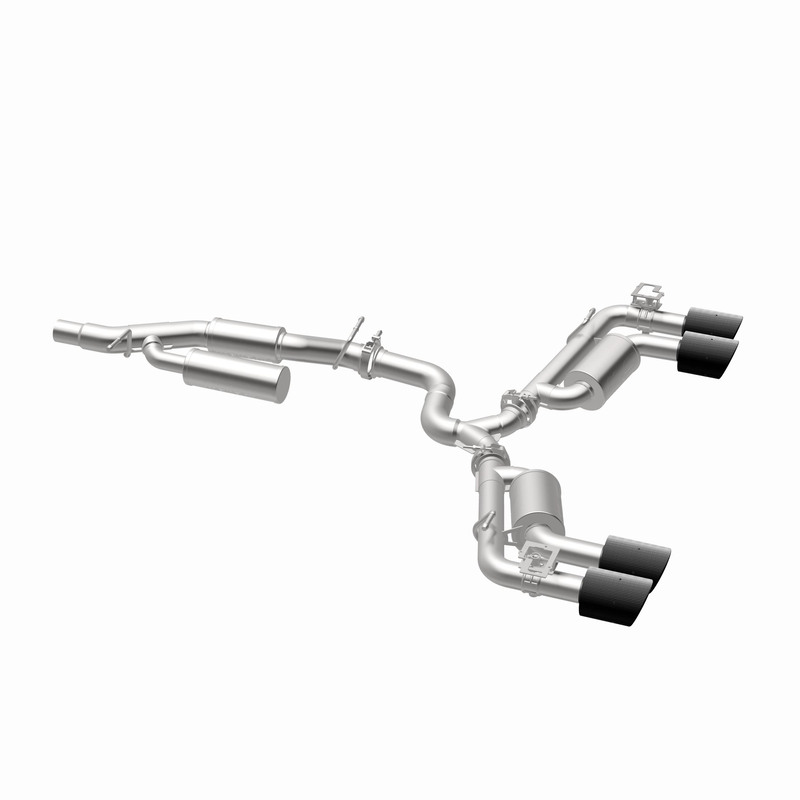

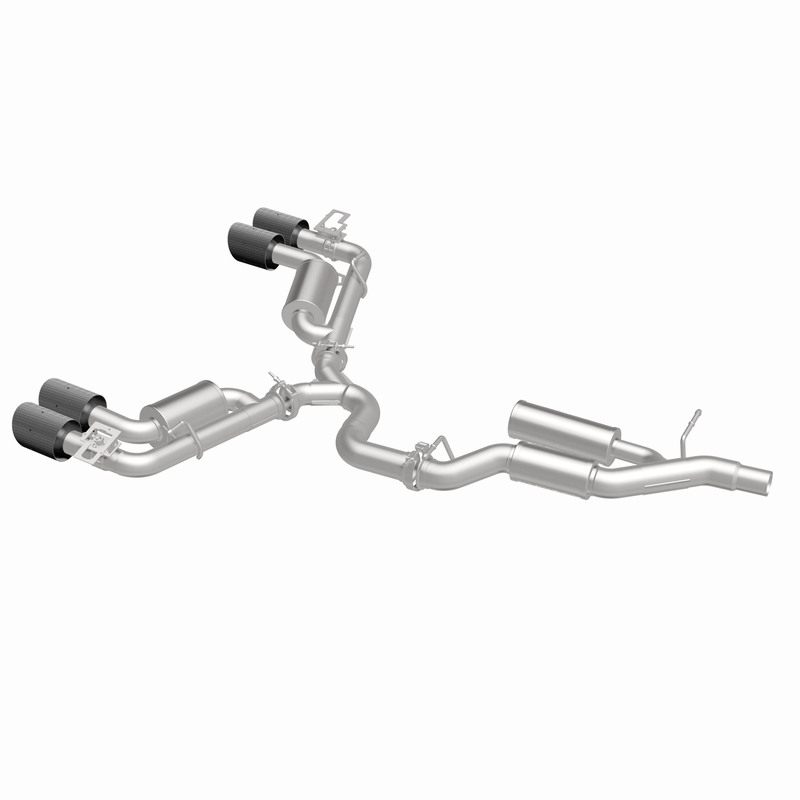

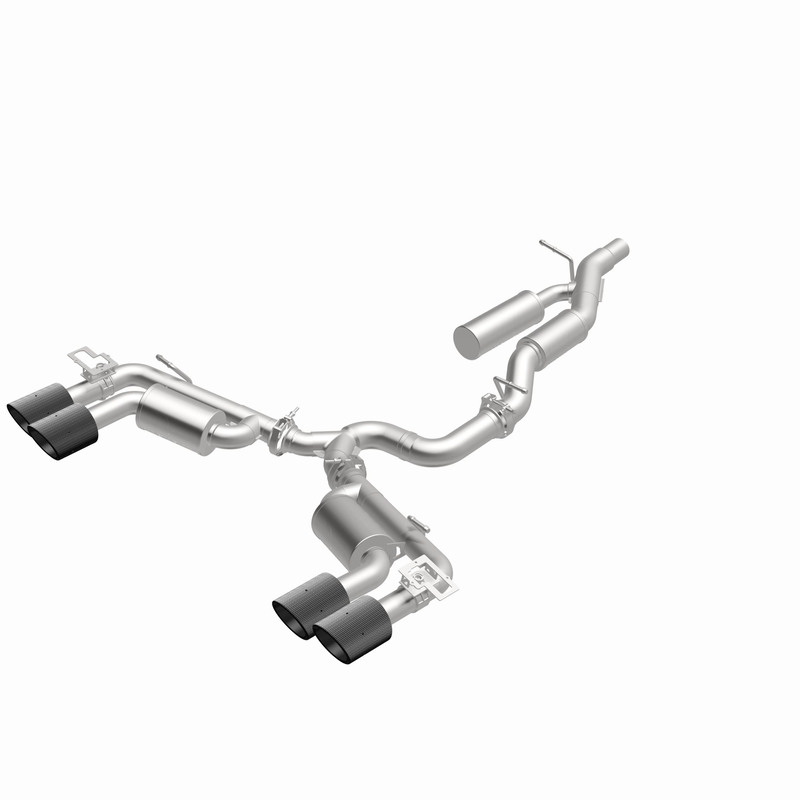

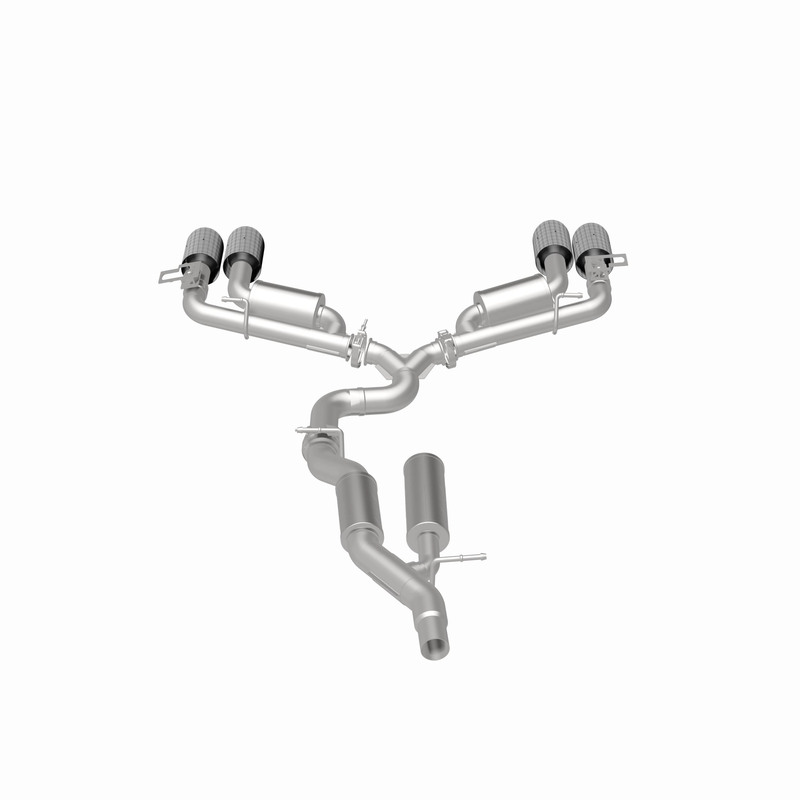

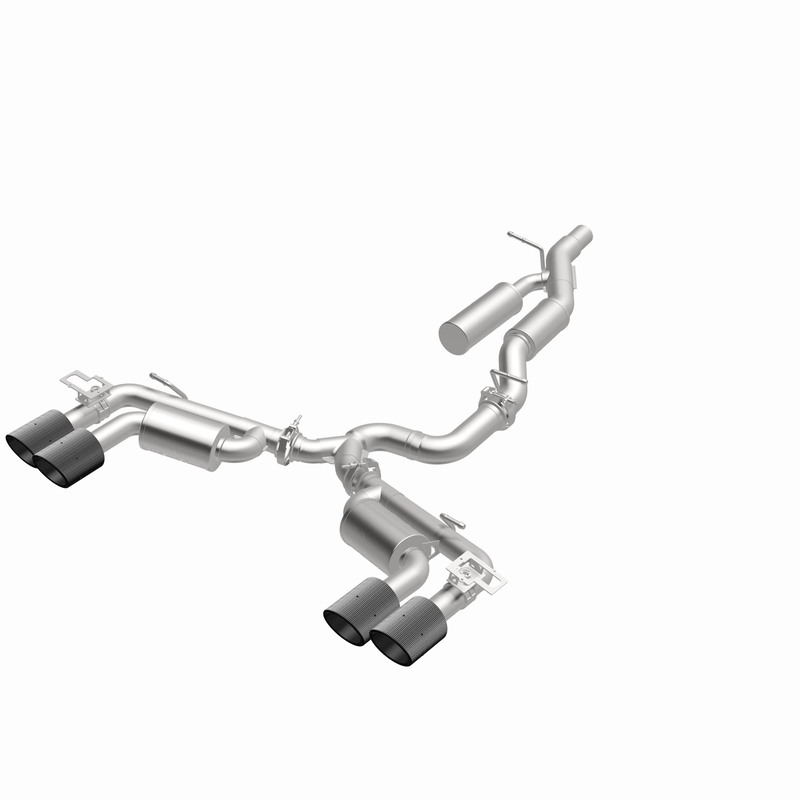

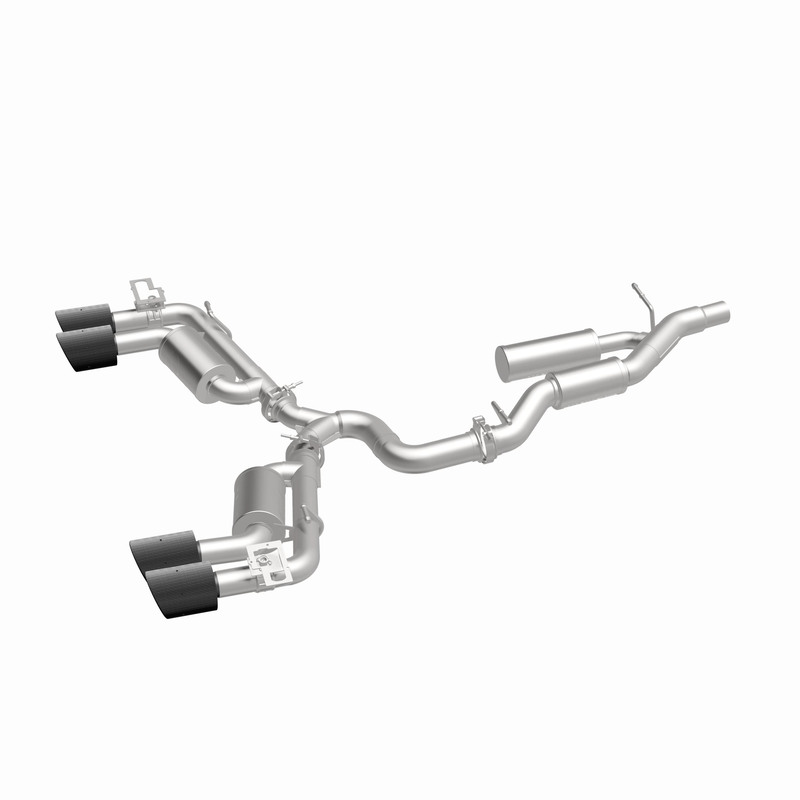

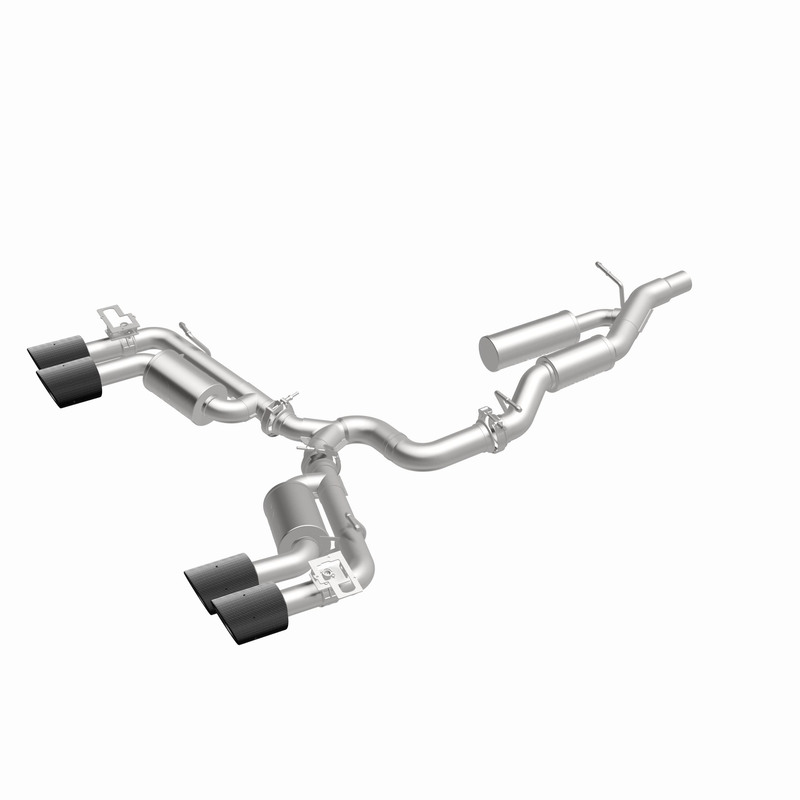

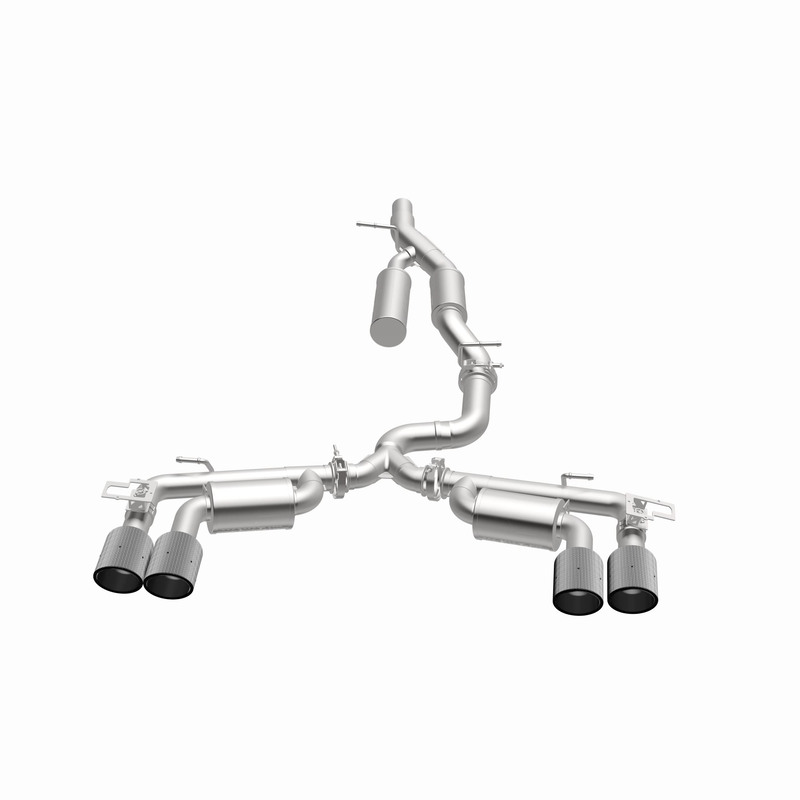

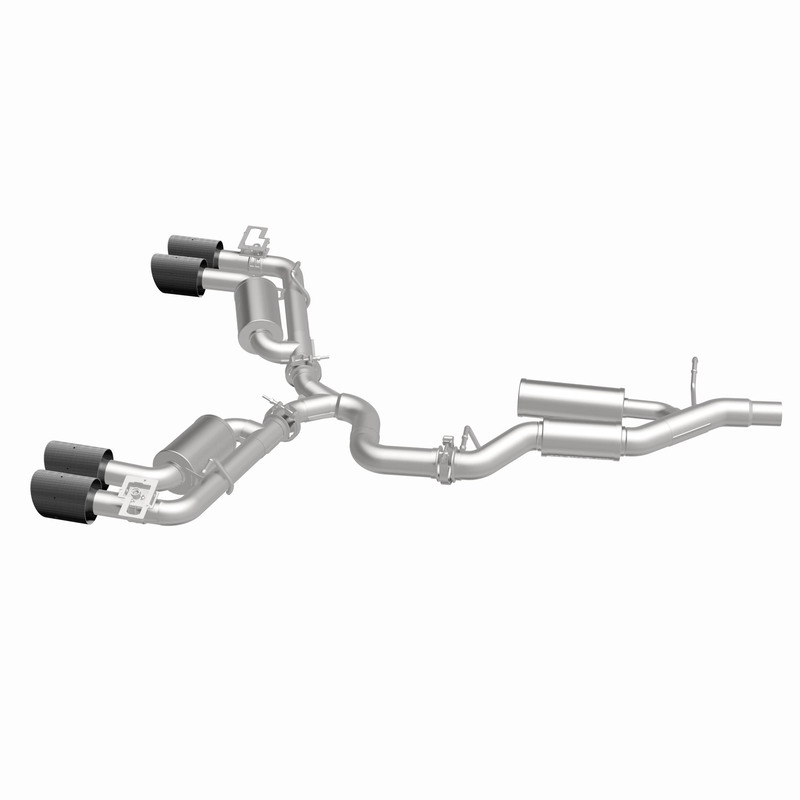

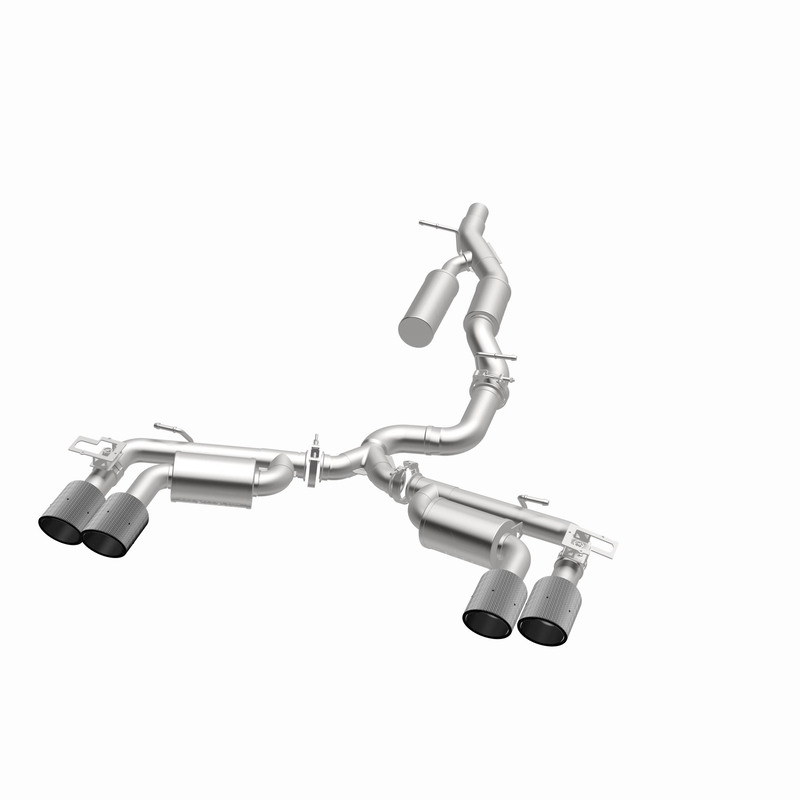

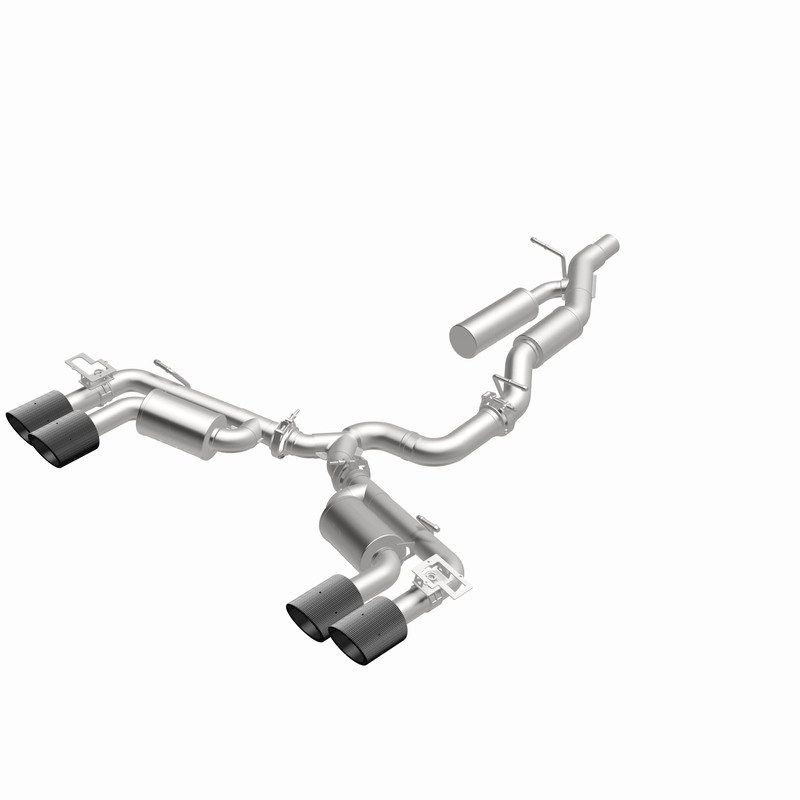

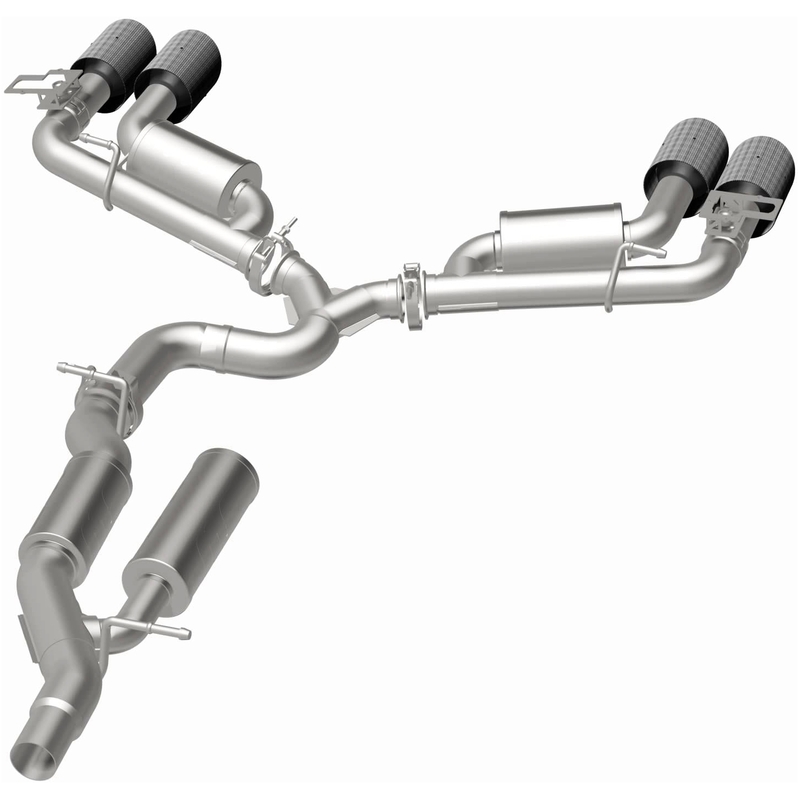

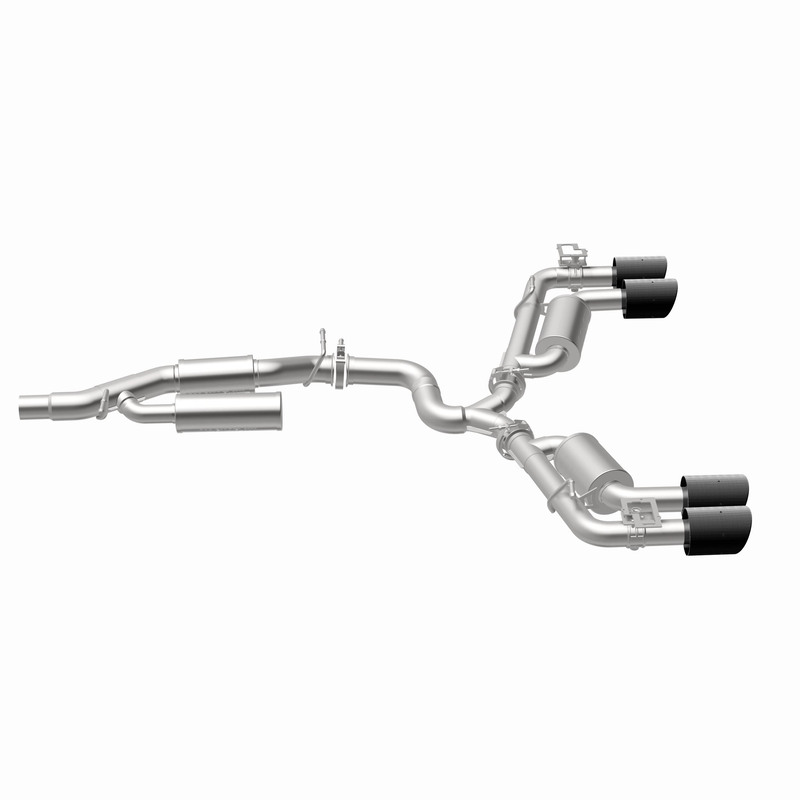

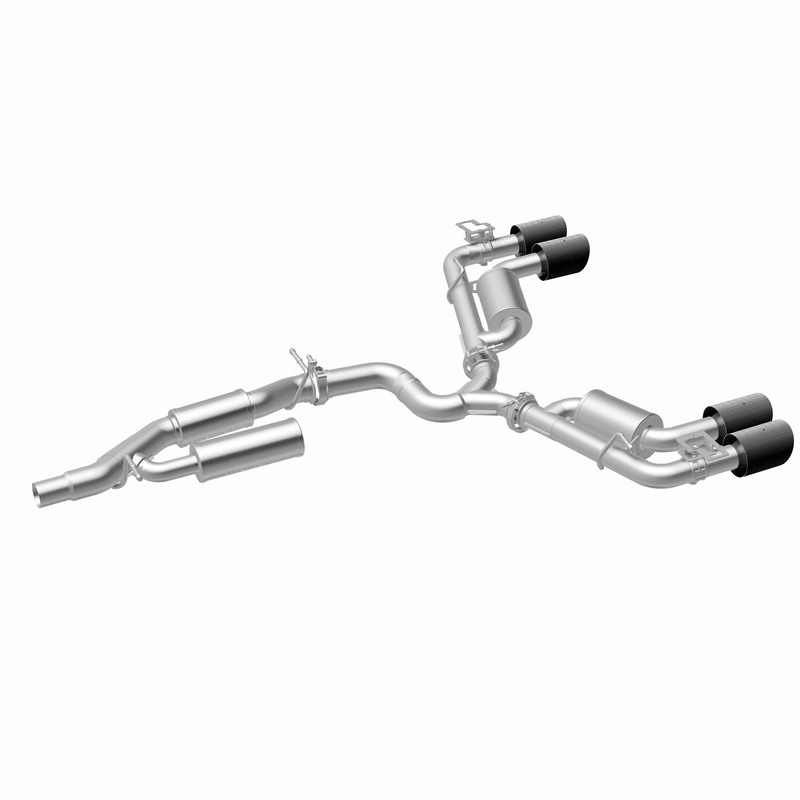

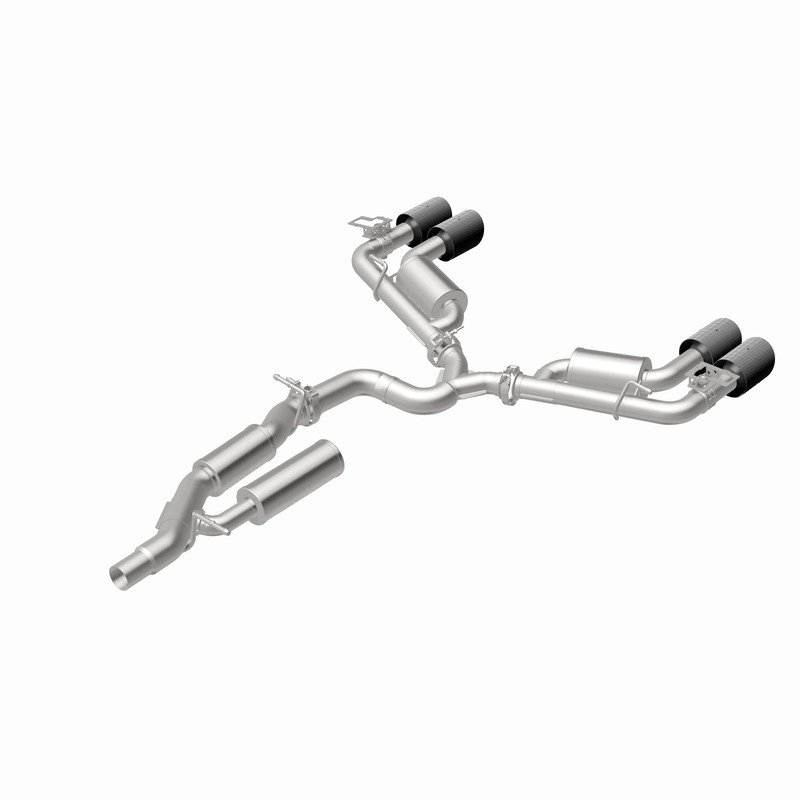

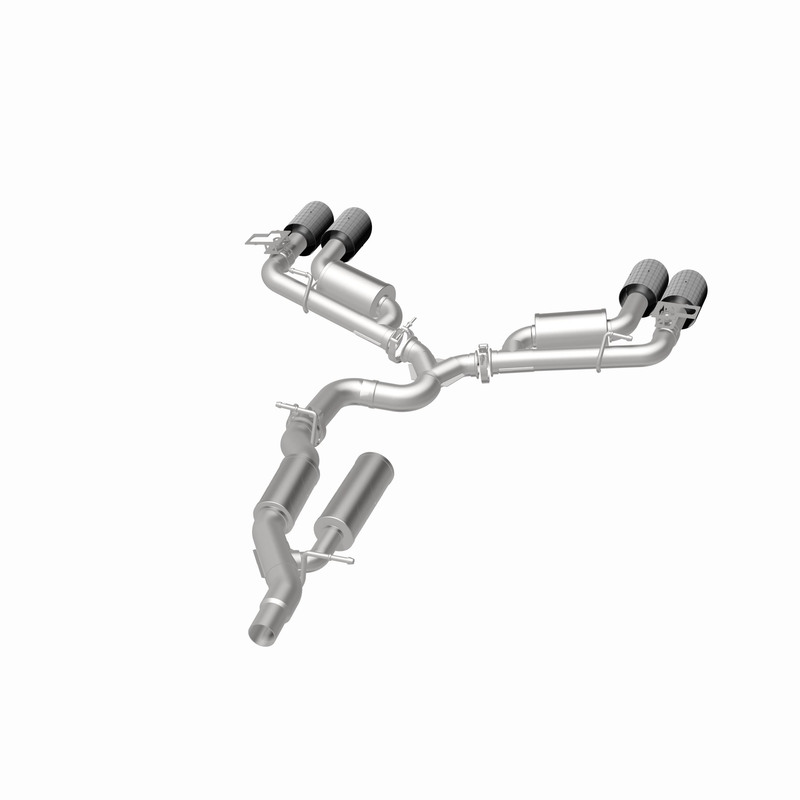

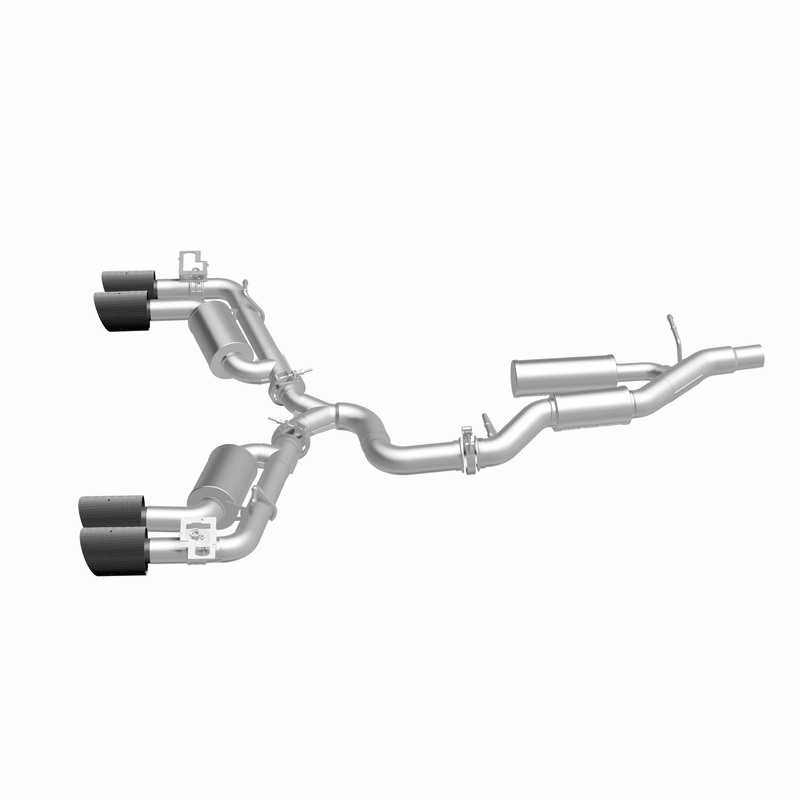

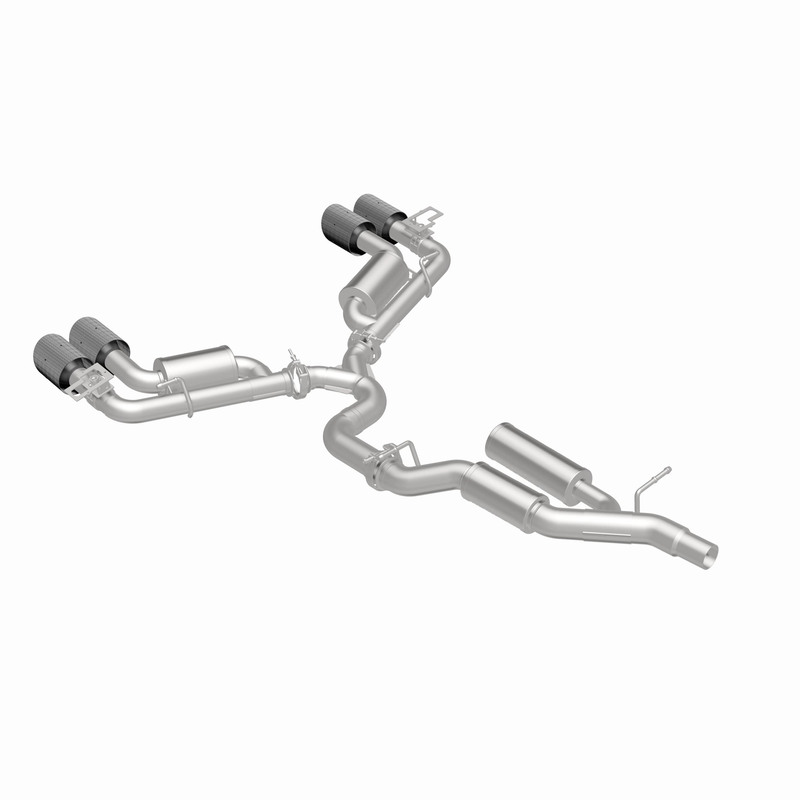

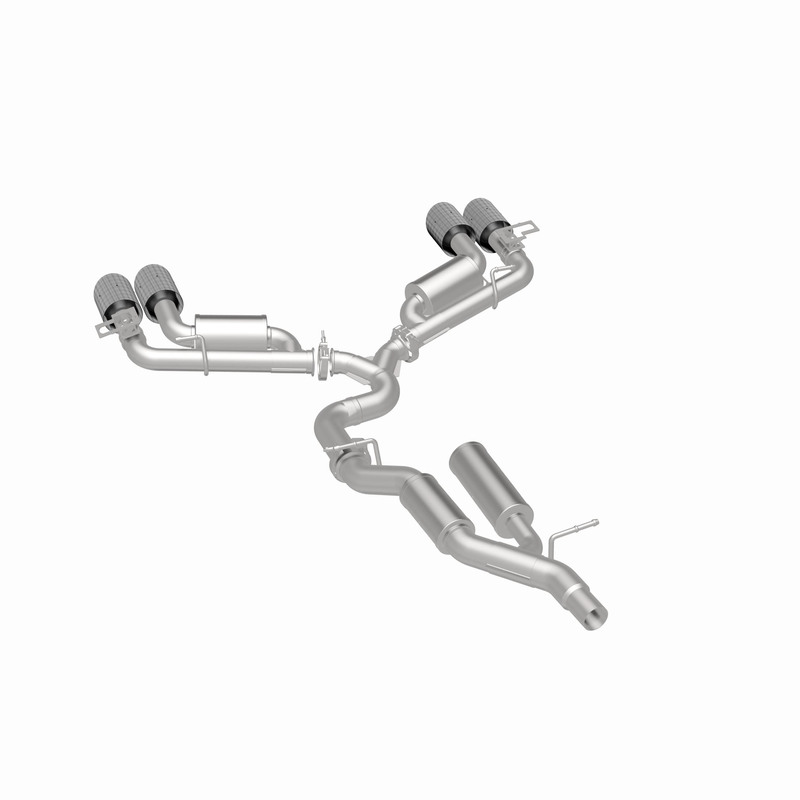

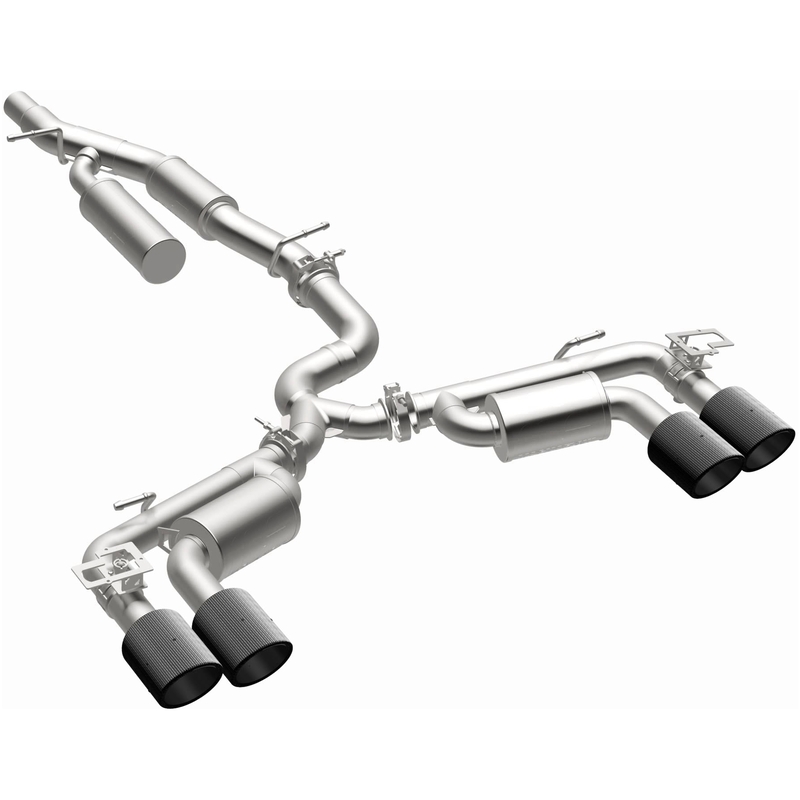

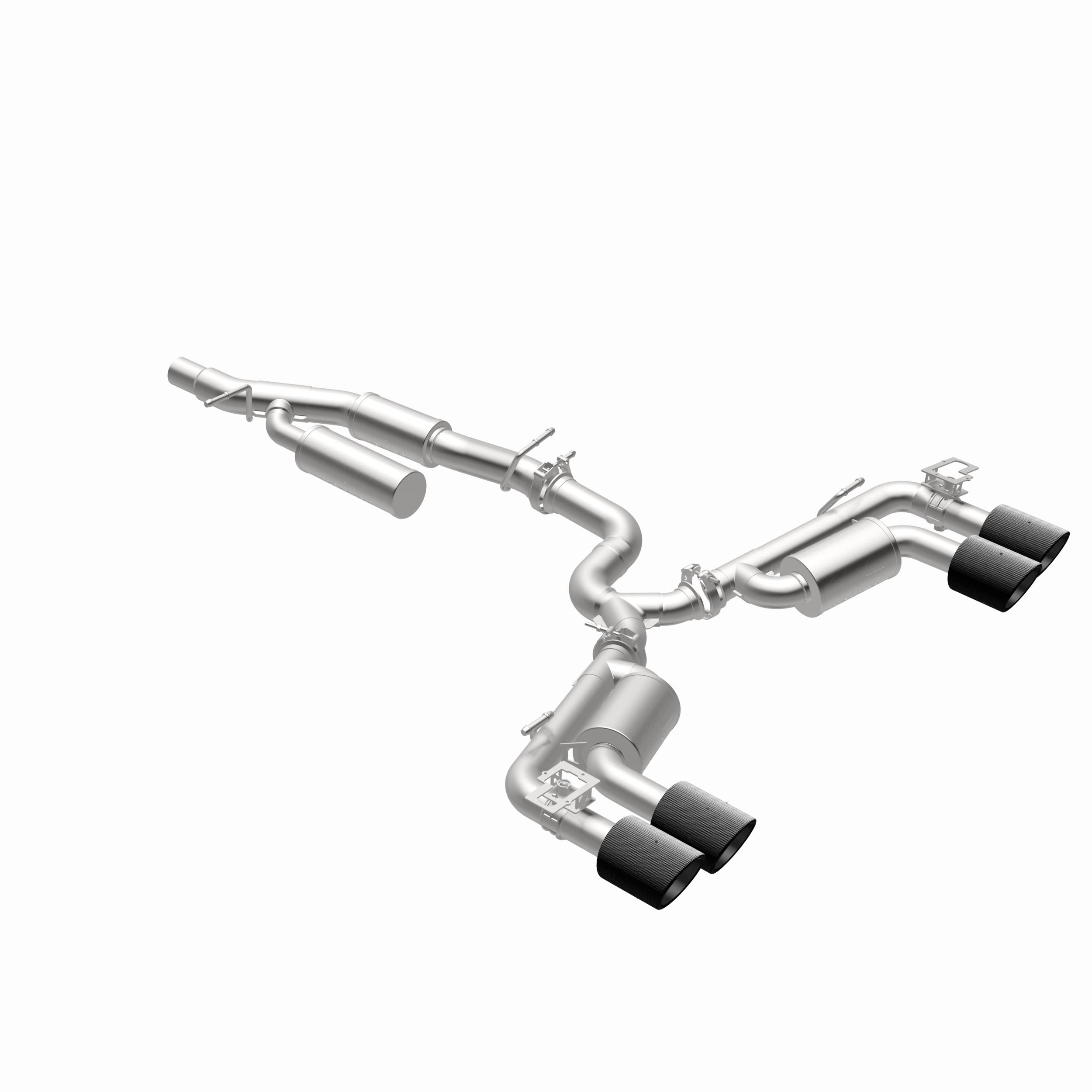

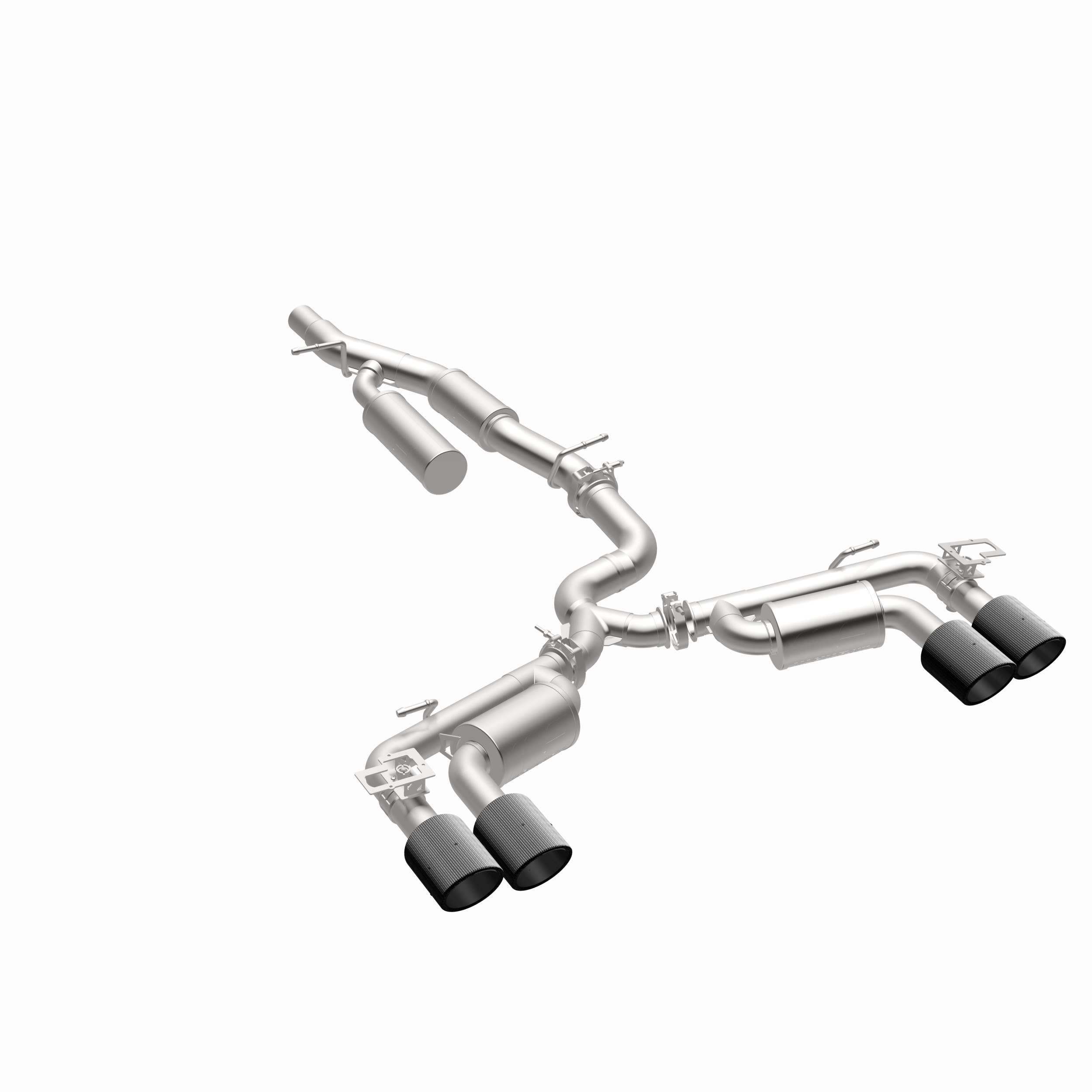

The MagnaFlow NEO Series Cat-back Volkswagen Golf R Performance Exhaust System #19617 is engineered to elevate the sound of the 2.0L I4 in your 2022-2024 Volkswagen Golf R to the next level while utilizing MagnaFlow’s No Drone Technology (NDT) technology to keep unwanted droning noises in check at cruising speeds. These NDT resonators are integrated into the performance exhaust system’s 3” mandrel bent main tubing which passes through three 4” x 4” x 8” straight-through mufflers before terminating in a quad split rear exit with 4.5” carbon fiber tips. Our Tech Center team has worked diligently to ensure that the fully functional valves in exhaust kit #19617 seamlessly integrate with the factory drive mode selections in your 2022-2024 Golf R. The direct-fit clamp-on inlet design is so easy to install that you can do it yourself and it replaces all your hot hatchback’s exhaust components from near the catalytic converter on back. The entire system is secured with quick-release racing-bred V-band clamps and made of durable, corrosion resistant stainless steel (except the carbon fiber tips), all backed by MagnaFlow’s limited lifetime construction warranty.
  • No-Drone-Technology (NDT) allows for a quiet cabin
  • Increased Horsepower and Torque
  • 100% Stainless Steel
Retail price
  • $4,395.39
Features
  • SKU
    19617
  • Brand
    MagnaFlow Exhaust Products
  • Baffle Design
    Straight-Through, Multi-Chamber
  • Clamp Style
    V-Band Clamp
  • Exhaust Tip Cut
    Angle
  • Exhaust Tip Diameter
    4.5 in.
  • Exhaust Tip Edge
    Rolled
  • Exhaust Tip Intercooled
    No
  • Exhaust Tip Length
    7.5 in.
  • Exhaust Tip Material
    Carbon Fiber
  • Exhaust Tip Quantity
    4
  • Exhaust Tip Shape
    Round
  • Exhaust Tip Wall
    Double
  • Exit Location
    Quad Split Rear
  • Includes Catalytic Converters
    No
  • Includes Clamps
    Yes
  • Includes Gasket or Seal
    No
  • Includes Hangers
    Yes
  • Includes Mounting Bracket
    No
  • Includes Valve
    Yes
  • Installation Method
    Clamp-On
  • Installation Method
    Weld-On
  • Main Piping Diameter
    3.0 in.
  • Muffler Body Height Position Front Left
    4.0 in.
  • Muffler Body Height Position Front Right
    4.0 in.
  • Muffler Body Height Position Rear
    5.0 in.
  • Muffler Body Length Position Front Left
    11.0 in.
  • Muffler Body Length Position Front Right
    8.0 in.
  • Muffler Body Length Position Rear
    8.0 in.
  • Muffler Body Material
    Stainless Steel
  • Muffler Body Width Position Front Left
    4.0 in.
  • Muffler Body Width Position Front Right
    4.0 in.
  • Muffler Body Width Position Rear
    5.0 in.
  • Muffler Finish
    Brushed
  • Muffler Quantity
    4
  • Muffler Type Position Front Left
    Tuned Chamber
  • Muffler Type Position Front Right
    Straight-Through
  • Muffler Type Position Rear
    Straight-Through
  • Pipe Material
    Stainless Steel
  • Product Type
    Cat-Back
  • Series
    NEO
  • Valve Type
    Actuated
