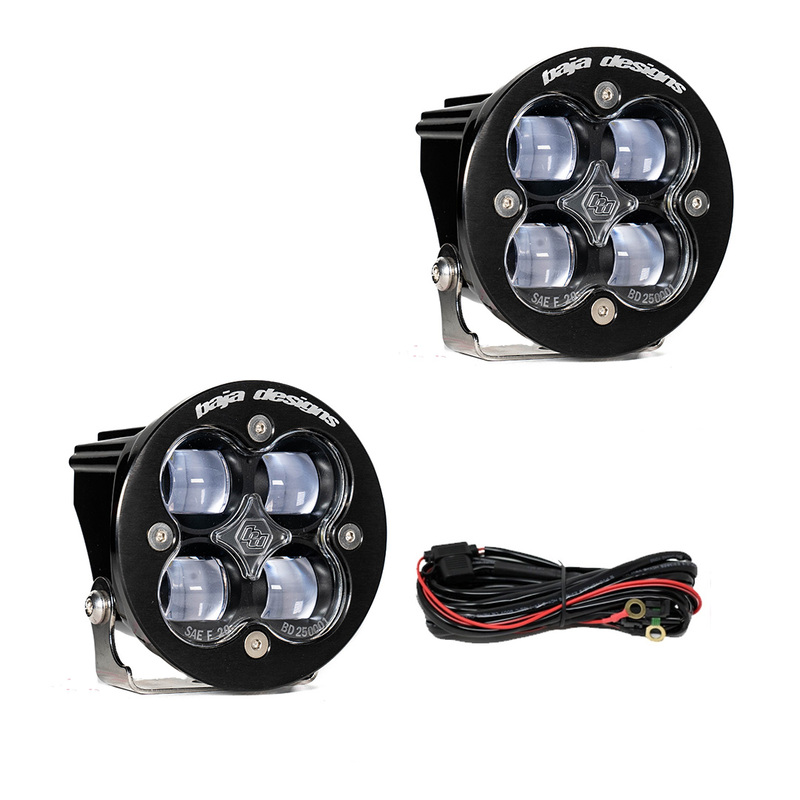

Squadron-R SAE LED Light Pod Pair (SAE Fog; Clear)
        Baja Designs

        Squadron-R SAE LED Light Pod Pair (SAE Fog; Clear)

        Part Number:247802
        Baja Designs next generation Squadron(R) SAE is the perfect road-legal auxiliary fog light on the market today. Engineered with all-new aspheric projector optics and with our advanced LED technology provides a performance increase in luminous flux of 56% over our previous generation SAE model. The all-new Squadron(R) SAE delivers 2,420 lumens per light with output reaching up to 15,800 candela at just 29 watts. Keeping you safe on the road or trails, the Squadron(R) SAE will illuminate Zone 1 with a controlled, sharp cutoff from the combination of the new LED technology and highly efficient aspheric projector optics. Designed to meet the current SAE J583 fog lamp requirements, the Squadron(R) SAE is fully compliant with on-road regulations. This innovative approach allows for a highly controlled light pattern with a sharp cutoff, making them an ideal choice for driving through dust, fog, and inclement weather. Backed by our limited lifetime warranty and 30-day satisfaction guarantee, giving you the ultimate in-purchase protection. USPTO Reg No. 5,766,659
        • 5000K Daylight – Less Driver Fatigue, Natural Color
        • ClearView – All The Light, Right Where You Need It
        • CopperDrive – Only LED Driven At 100 Percent
        • Limited Lifetime Warranty – Complete Purchase Protection
        • MoistureBlock – Waterproof, Rain Proof, Submersible
        • NOTE: uService(R) is NOT a feature of SAE products. If tampered, it will void the warranty. Our Limited Lifetime Warranty is valid only if sent back for repairs.
        • Satisfaction Guarantee – 30-Day Money Back Guarantee
        Retail price
        • $349.95
        Features
        • SKU
          247802
        • Brand
          Baja Designs
        • Amperage Rating
          2.1A
        • Average Rated Life (hr.)
          49930
        • Beam Pattern
          Beam
        • Beam Pattern
          Fog
        • Bezel Material
          Powder Coated Cast Aluminum
        • Chip Type
          CREE LED
        • Depth
          2.77 in.
        • Hardware Material
          Stainless Steel
        • Height
          3.07 in.
        • Housing Color
          Black
        • Housing Finish
          Hard Anodized and Powder Coated
        • IP Rating
          IP69K
        • Includes Mounting Hardware
          Yes
        • Includes Wiring Harness
          Yes
        • Length
          3.07 in.
        • Lens Color
          Clear
        • Lens Material
          Hardcoated Polycarbonate
        • Light Quantity
          2
        • Light Quantity
          4
        • Lighting Mode
          Low Beam
        • Lumens
          2420 lm
        • Material
          Cast Aluminum
        • Mechanical Impact Testing
          IK10 Compliant
        • Mil-Spec Testing
          Exceeds MIL-STD810G
        • Product Note
          Round; SAE Fog; Clear; Pair
        • Product Type
          Squadron-R SAE LED Light Pod Pair w/ Wiring Harness
        • Prop 65 - Required to list in California with Warning
          Yes
        • Prop 65 - Short Label
          CR
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Protection
          Built-In Overvoltage Protection
        • Recommended Additional Part
          Accessories-447113-Angled Bezel
        • Recommended Additional Part
          Accessories-660019-Flush Mount Bezel
        • Recommended Additional Part
          Accessories-668007-Rock Guard (Black)
        • Recommended Additional Part
          Accessories-668008-Light Cover (Clear)
        • Recommended Additional Part
          Accessories-668009-Light Cover (Amber)
        • Recommended Additional Part
          Accessories-668401-Lens Kit (Spot; Clear)
        • Recommended Additional Part
          Accessories-668403-Lens Kit (Driving/Combo; Clear)
        • Recommended Additional Part
          Accessories-668405-Lens Kit (Wide Cornering; Clear)
        • Recommended Additional Part
          Accessories-668406-Lens Kit (Work/Scene; Clear)
        • Recommended Additional Part
          Accessories-668413-Lens Kit (Driving/Combo; Amber)
        • Recommended Additional Part
          Accessories-668415-Lens Kit (Wide Cornering; Amber)
        • Recommended Additional Part
          Accessories-668416-Lens Kit (Work/Scene; Amber)
        • Recommended Additional Part
          Associated Products-660300-Anti Theft Hardware Kit - M6x16 Socket Pin Head Bolts
        • Recommended Additional Part
          Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts
        • Recommended Additional Part
          Compatible Products-613600-Harness/Splitter (3 Light Max)
        • Recommended Additional Part
          Compatible Products-613607-Harness Splitter
        • Recommended Additional Part
          Compatible Products-613609-Harness/Splitter (55 Inch)
        • Recommended Additional Part
          Compatible Products-640093-Upfitter Harness
        • Recommended Additional Part
          Compatible Products-640117-Harness/Splitter (On/Off)
        • Recommended Additional Part
          Compatible Products-640164-Wiring Harness (Hi/Low)
        • Recommended Additional Part
          Compatible Products-640165-Harness Extension (10 ft.)
        • SAE/DOT Compliant
          No
        • SAE/DOT Compliant
          Yes
        • Standards/Compliance (SAE)
          SAE Standard J583
        • Wattage
          29.0W
