2022-2023 Toyota Land Cruiser 300 Series, 2.5 VS Remote Reservoir CDCV Coilover Kit, Front
ICON Vehicle Dynamics

2022-2023 Toyota Land Cruiser 300 Series, 2.5 VS Remote Reservoir CDCV Coilover Kit, Front

Part Number:58761C

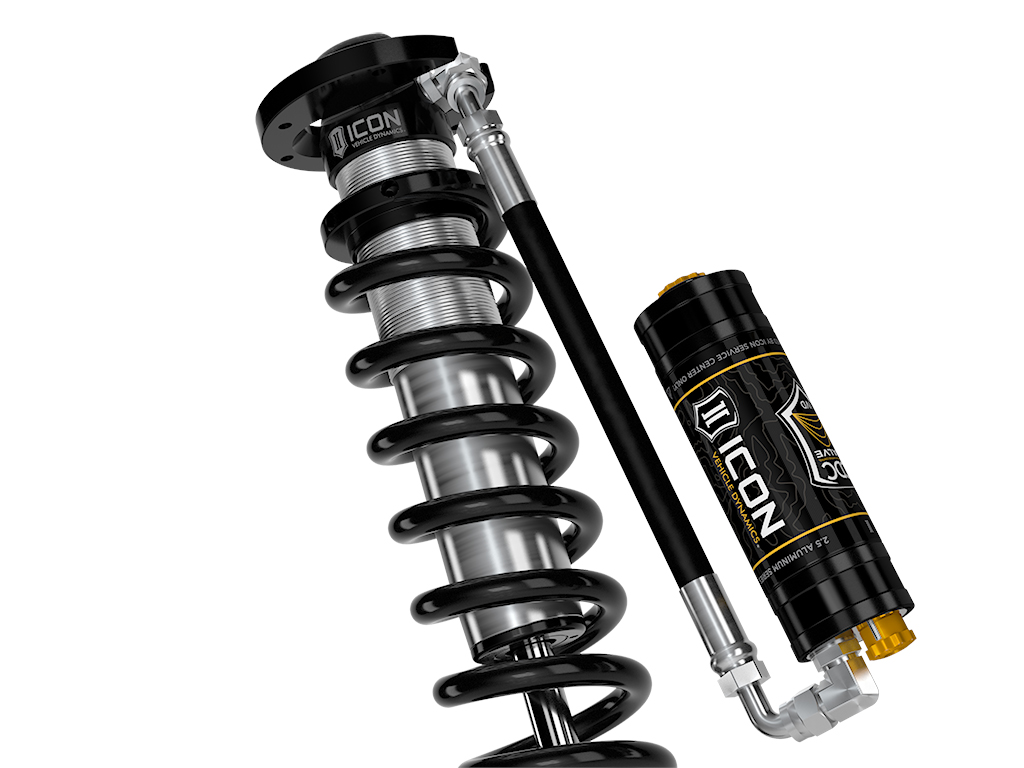

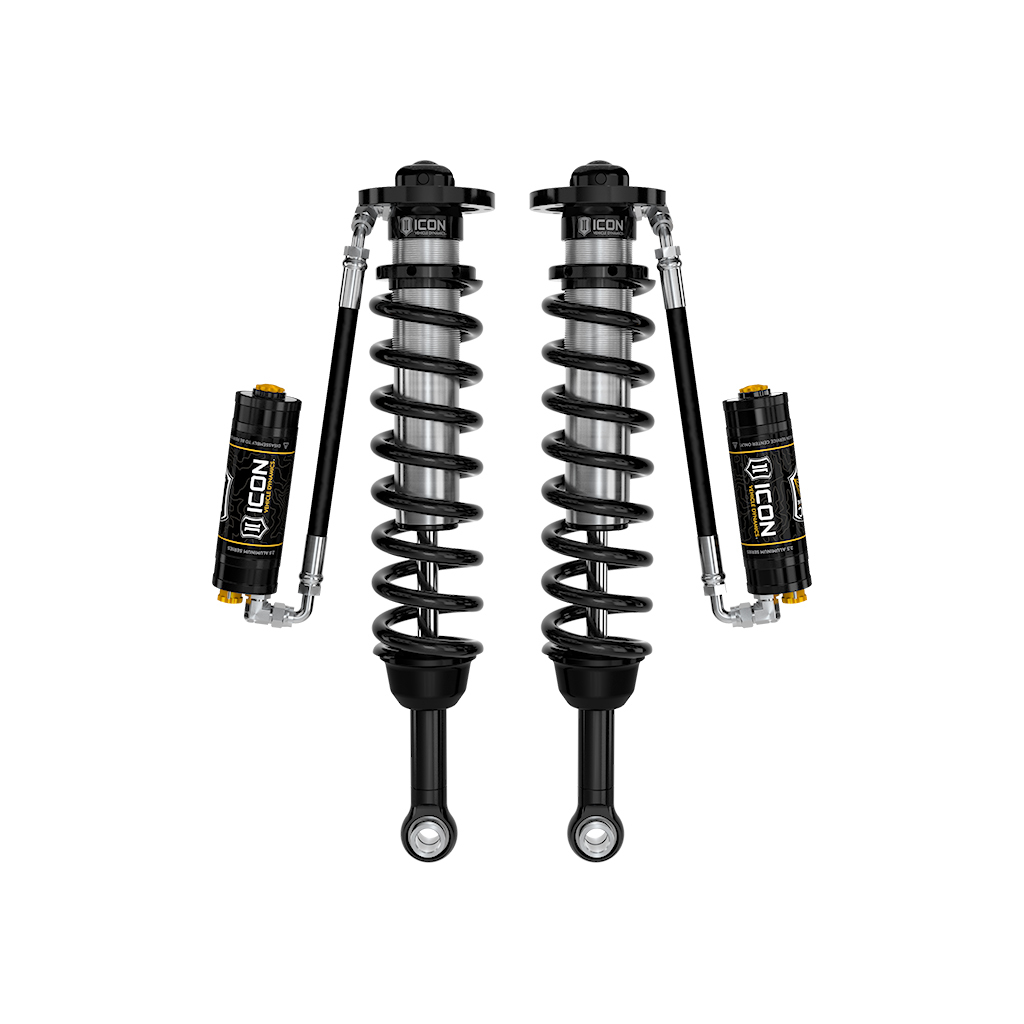

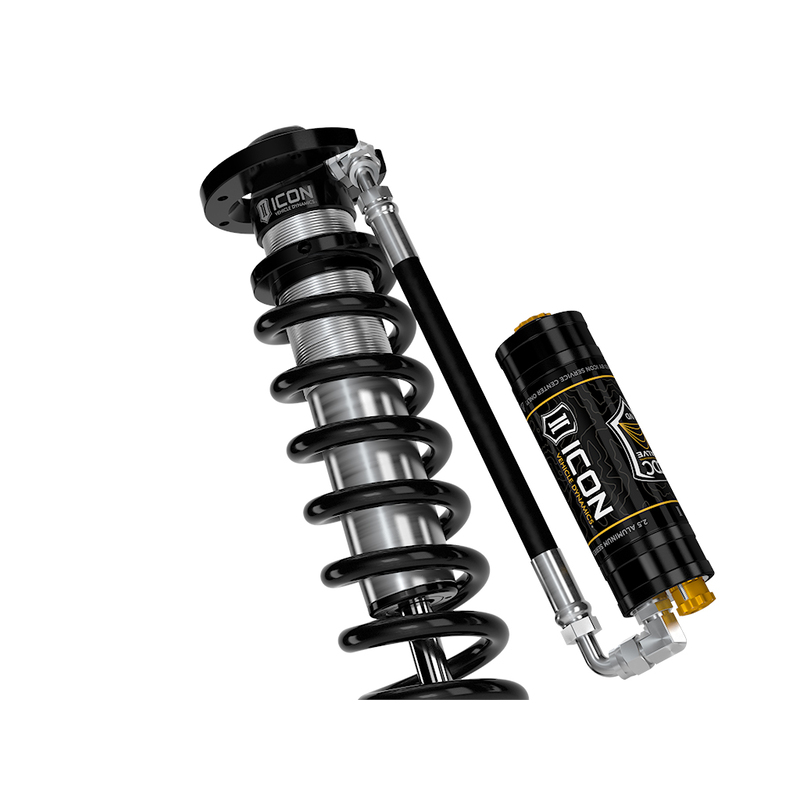

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2023 Toyota Land Cruiser 300 Series. These adjustable coilovers allow up to 1-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Land Cruiser 300 Series.
  • Increased wheel travel and improved ride quality over stock
  • Fully rebuildable and re-tunable
  • Vehicle specific tuned for superior shock damping and control
  • Adjustable ride height offers 1-3" of front lift over stock
  • Remote reservoirs maintain cooler operating temperatures during extended off-road use
  • ICON CDCV equipped for 10 settings of external compression damping adjustment
  • ICON engineered coil springs
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
  • FK rod end bearings for extended longevity and minimal deflection
Retail price
  • $2,511.55
Features
  • SKU
    58761C
  • Brand
    ICON Vehicle Dynamics
  • Adjustable Damping
    Yes
  • Adjustable Height
    Yes
  • Body Diameter
    2.5 in.
  • Damping Adjustment Type
    Manual
  • Damping Type
    Oil
  • Fitment Note
    Does fit OEM Wheels and Tires
  • Gas Charged
    Yes
  • Grade Type
    Performance
  • Housing Material
    Steel
  • Includes Boot
    No
  • Material
    Aluminum
  • Maximum Lift
    3.0 in.
  • Minimum Lift
    1.0 in.
  • Mount Type - Lower
    Eyelet
  • Mount Type - Upper
    Mounting Plate
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Recommended Additional Part
    191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
  • Recommended Additional Part
    198000 - 2 PIN COILOVER SPANNER WRENCH KIT
  • Recommended Additional Part
    198001 - BILLET SPANNER WRENCH KIT
  • Recommended Additional Part
    252011 - 2.5 Piggyback/remote Resi/bypass Rebuild Kit
  • Remote Reservoir
    Yes
  • Shaft Diameter
    0.875 in.
  • Shock Absorber Body End Measuring Point
    Center of Eyelet
  • Shock Absorber Rod End Measuring Point
    Top of Mounting Plate
  • Spring Color
    Black
  • Spring Material
    Steel
  • Spring Rate Type
    Linear
