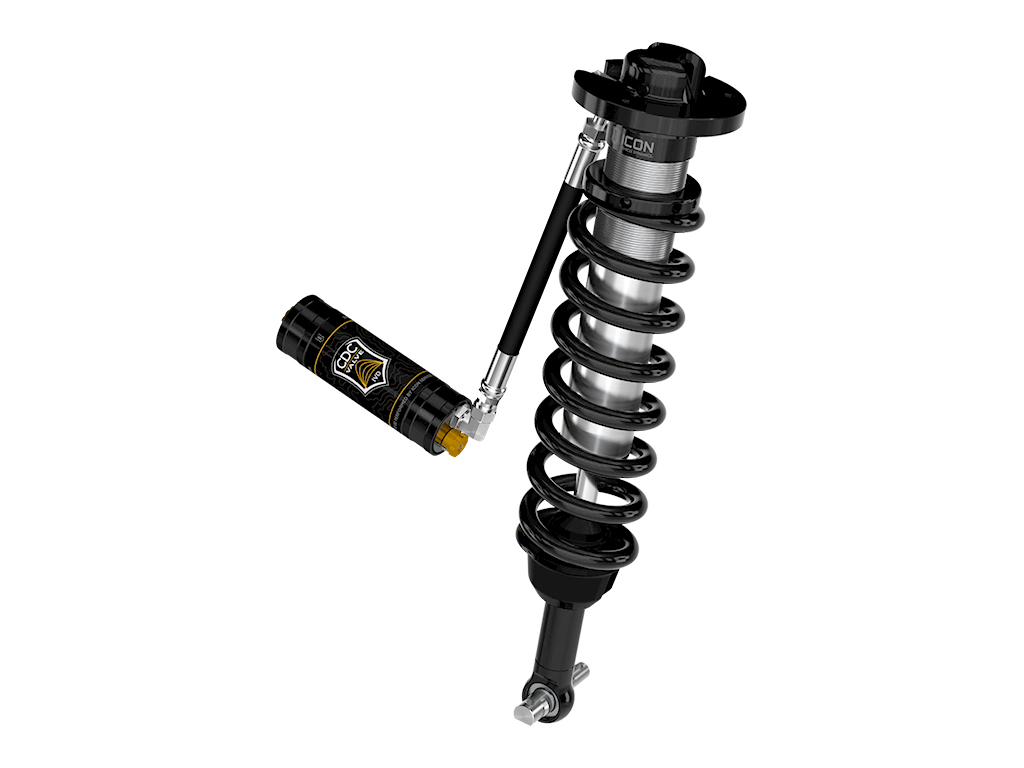

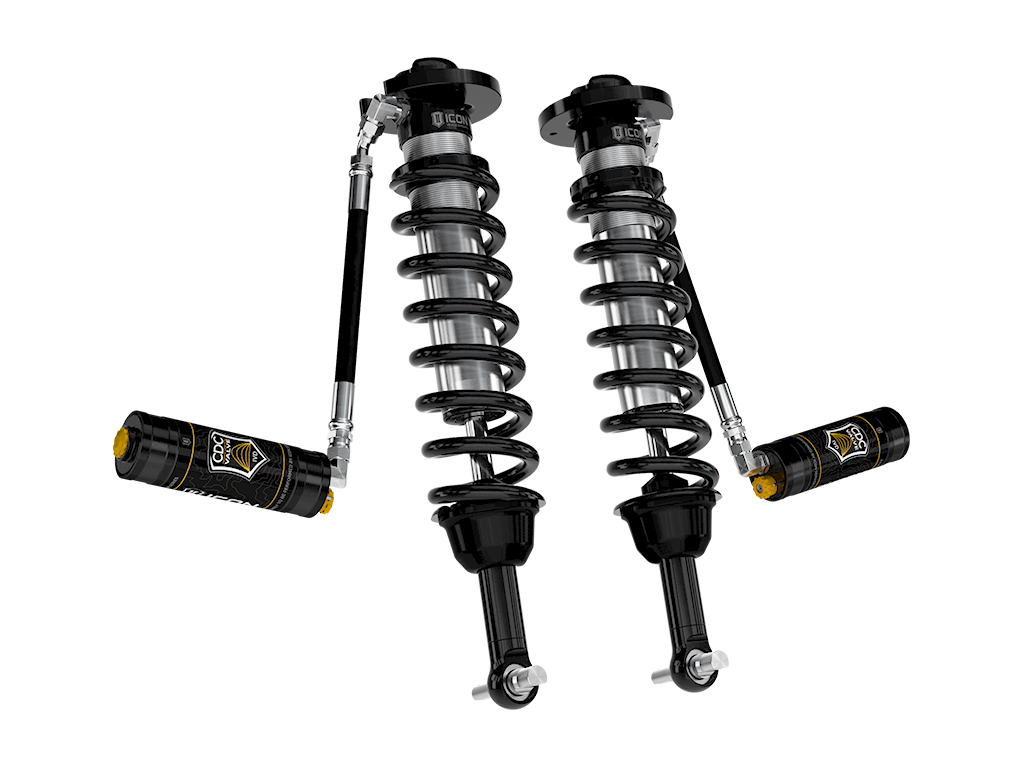

ICON 2021-2024 Ford F-150 4WD, 2.75-3.5" Lift, Front, V.S. 2.5 Series Coilovers, Remote Reservoir w/ CDCV, Pair
        ICON Vehicle Dynamics

        ICON 2021-2024 Ford F-150 4WD, 2.75-3.5" Lift, Front, V.S. 2.5 Series Coilovers, Remote Reservoir w/ CDCV, Pair

        Part Number:91825C
        ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2024 Ford F-150 4WD trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.75-3.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.
        • Increased wheel travel and ride quality over stock
        • High strength alloy CNC machined lower bar pin
        • 100% Bolt-on - no cutting or welding necessary for installation
        • FK rod end bearings for extended longevity and minimal deflection
        • Vehicle specific tuned for superior shock damping and control
        • Adjustable for 2.75-3.5" of lift height over stock
        • Remote reservoir to attain cooler operating temperatures during extended off-road use
        • ICON CDCV equipped for 10 settings of external compression damping adjustment
        • ICON engineered coil Springs
        • 6061 Aircraft grade aluminum CNC machined components
        • Corrosion resistant CAD plated shock body with 7/8" shaft
        Retail price
        • $2,402.35
        Features
        • SKU
          91825C
        • Brand
          ICON Vehicle Dynamics
        • AAP_UDA_12
          EA
        • AAP_UDA_22
          1
        • AAP_UDA_4
          55
        • Active or Passive Suspension
          Passive
        • Add-On Part
          97720CP - 09-24 F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB CDCV PAIR
        • Add-On Part
          98522DJ - 21-24 F150 TUBULAR UCA DJ PRO KIT
        • Add-On Part
          98523DJ - 21-24 F150 BILLET UCA DJ PRO KIT
        • Adjustable Compression
          Yes
        • Adjustable Damping
          Yes
        • Adjustable Height
          Yes
        • Adjustable Rebound
          No
        • Body Diameter
          2.5 in.
        • California Prop 65 Warning
          Yes
        • Cylinder Color
          Silver
        • Cylinder Finish
          Cadmium Plated
        • Cylinder Material
          Steel
        • Damping Adjustment Type
          Manual
        • Damping Type
          Oil
        • Dust Shield Included
          No
        • Fitment Note
          Does fit OEM Wheels and Tires
        • Gas Charged
          Yes
        • Grade Type
          Performance
        • Housing Material
          Steel
        • Includes Boot
          No
        • Internal Construction Type
          Single Tube
        • Material
          Aluminum
        • Maximum Lift
          3.5 in.
        • Minimum Lift
          2.75 in.
        • Mount Type - Lower
          Bar Pin
        • Mount Type - Upper
          Mounting Plate
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Recommended Additional Part
          191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
        • Recommended Additional Part
          198000 - 2 PIN COILOVER SPANNER WRENCH KIT
        • Recommended Additional Part
          198001 - BILLET SPANNER WRENCH KIT
        • Recommended Additional Part
          252001 - 2.5 Fixed Spanner Wrench
        • Recommended Additional Part
          252002 - Universal Spanner Wrench (2.0/2.5/3.0)
        • Recommended Additional Part
          252003 - Seal Install Tool 2.5/3.0
        • Recommended Additional Part
          252011 - 2.5 Piggyback/remote Resi/bypass Rebuild Kit
        • Recommended Additional Part
          252012 - -4 TO -10 HOSE SHIELD KIT
        • Recommended Additional Part
          254100G - 1.0 Gallon Icon Performance Shock Oil
        • Recommended Additional Part
          611019 - Coilover Hardware Kit Pair
        • Recommended Aftermarket Tires
          34.0 in. X 12.5 in. (Larger Tires may Fit but Fender Trimming and Modifications will be Required)
        • Recommended Aftermarket Wheels
          ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
        • Recommended Aftermarket Wheels
          ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
        • Recommended Aftermarket Wheels
          ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
        • Remote Reservoir
          Yes
        • Reservoir Style
          Remote
        • Self-Leveling
          No
        • Shaft Diameter
          0.875 in.
        • Shock Absorber Body End Measuring Point
          Top of Upper Mount Plate
        • Shock Absorber Rod End Measuring Point
          Center of Eyelet
        • Spring Color
          Black
        • Spring Material
          Steel
        • Spring Rate Type
          Linear
        • Valving Type
          Digressive
