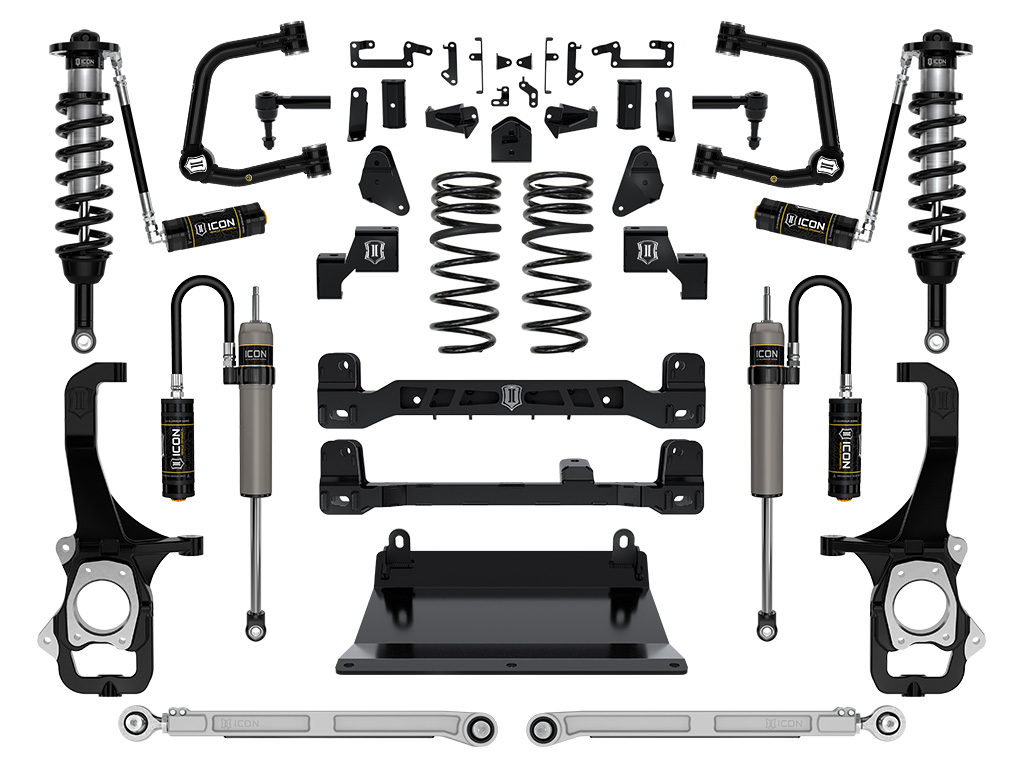

        ICON 2022-2023 Toyota Tundra, 6" Lift Stage 5 Suspension System with Tubular Upper Control Arms

        Part Number:K53275T
        ICON Vehicle Dynamics
        • 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling
        • Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
        • Included sway bar drop brackets reduce bind in OE sway bar links
        • Front and rear heavy-duty bump stop brackets
        • High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
        • ICON engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving
        • High clearance billet rear lower links with replaceable nylon rock sliders improve rear end articulation and allow on-vehicle adjustment for different ride heights and pinion angles using ICON's double adjuster system
        • Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
        • System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
        • Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
        • Maintains factory track width
        • Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
        • Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
        • Tubular UCAs with Delta Joint Pro for added strength, durability, and caster correction for improved drivability
        • Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
        • Single piece high-strength ductile iron steering knuckles with built-in 4" drop
        Retail price
        • $8,905.60
        Overview
        • 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling
        • Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
        • Included sway bar drop brackets reduce bind in OE sway bar links
        • Front and rear heavy-duty bump stop brackets
        • High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
        • ICON engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving
        • High clearance billet rear lower links with replaceable nylon rock sliders improve rear end articulation and allow on-vehicle adjustment for different ride heights and pinion angles using ICON's double adjuster system
        • Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
        • System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
        • Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
        • Maintains factory track width
        • Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
        • Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
        • Tubular UCAs with Delta Joint Pro for added strength, durability, and caster correction for improved drivability
        • Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
        • Single piece high-strength ductile iron steering knuckles with built-in 4" drop
        Features
          • SKU
            K53275T
          • Brand
            ICON Vehicle Dynamics
          • Bushings Included
            No
          • Fitment Note
            Does not fit OEM Wheels and Tires
          • Front Coils Quantity
            2
          • Front Spring Rate Type
            Linear
          • Grade Type
            Performance
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Rear Coils Quantity
            2
          • Rear Spring Rate Type
            Progressive Triple Rate
          • Recommended Additional Part
            191013 - NIPPLE GREASING ADAPTER KIT
          • Recommended Additional Part
            198000 - 2 PIN COILOVER SPANNER WRENCH KIT
          • Recommended Additional Part
            198001 - BILLET SPANNER WRENCH KIT
          • Recommended Aftermarket Tires
            37.0 in. X 12.5 in. (Larger Tires may Fit but Fender Trimming and Modifications will be Required.)
          • Shocks Included
            Yes
          • Spring Material
            Steel
        Fitment
        Make Model Submodel Year
        Toyota Tundra Limited TRD Off-Road 2022
        Toyota Tundra Platinum 1794 Edition 2022
        Toyota Tundra SR TRD Off-Road 2022
        Toyota Tundra SR5 TRD Off-Road 2022
