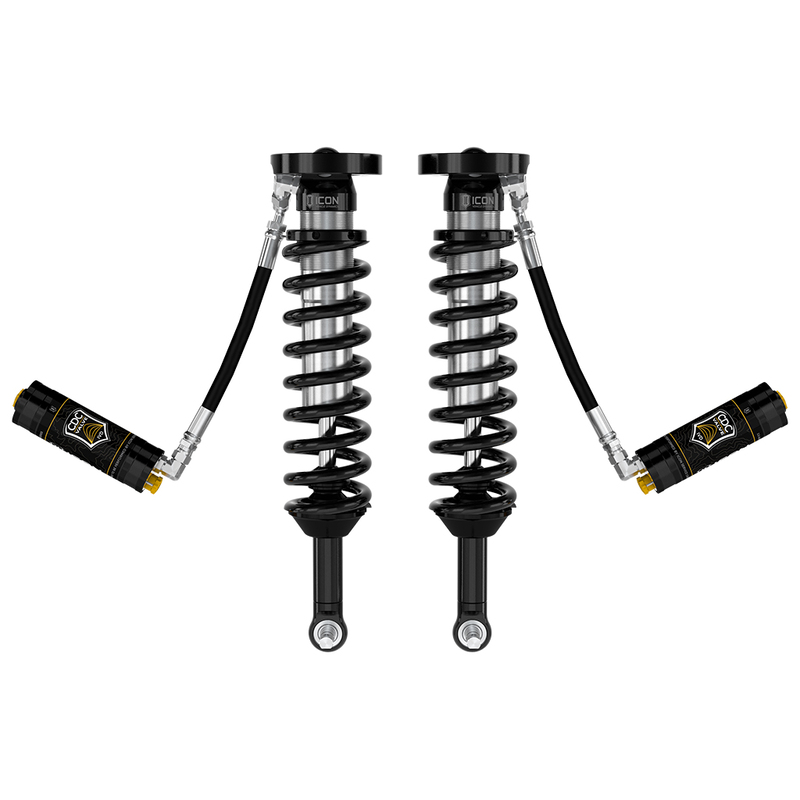

ICON 2023-2024 Chevrolet Colorado WT, LT & Z71, 2.5 Series Coilover Kit, Remote Reservoir w/ CDCV
ICON Vehicle Dynamics

ICON 2023-2024 Chevrolet Colorado WT, LT & Z71, 2.5 Series Coilover Kit, Remote Reservoir w/ CDCV

Part Number:71671C
ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2023-2024 Chevrolet Colorado WT, LT, and Z71 trucks. Specifically designed for the narrower track width of these Colorado submodels, their longer length offers a 20% increase in total front wheel travel compared to stock, for a total of 9.5” of front wheel travel. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-2.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 2023-2024 Chevrolet Colorado WT, LT, and Z71.
  • 20% increase in front wheel travel and improved ride quality over stock
  • PTFE lined spherical bearings for extended longevity and minimal deflection
  • High strength alloy CNC machined lower bar pin and application specific mounting hardware
  • Fully rebuildable and re-tunable
  • 100% Bolt-on - no drilling, cutting, or welding necessary for installation
  • Vehicle specific tuned for superior shock damping and control
  • Adjustable for 1.75-2.5" of front lift height over stock
  • Remote reservoirs maintain cooler operating temperatures during extended off-road use
  • ICON CDCV equipped for 10 settings of external compression damping adjustment
  • ICON engineered coil springs
  • Corrosion resistant CAD plated 2.5” diameter shock bodies
  • 7/8" diameter hardened chrome plated shafts
  • 6061 Aircraft grade aluminum CNC machined components
Retail price
  • $2,456.95
Features
  • SKU
    71671C
  • Brand
    ICON Vehicle Dynamics
  • Adjustable Damping
    Yes
  • Adjustable Height
    Yes
  • Body Diameter
    2.5 in.
  • Damping Adjustment Type
    Manual
  • Damping Type
    Oil
  • Fitment Note
    Does fit OEM Wheels and Tires
  • Gas Charged
    Yes
  • Grade Type
    Performance
  • Housing Material
    Steel
  • Includes Boot
    No
  • Material
    Aluminum
  • Mount Type - Lower
    Bar Pin
  • Mount Type - Upper
    Mounting Plate
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Recommended Additional Part
    191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
  • Recommended Additional Part
    198000 - 2 PIN COILOVER SPANNER WRENCH KIT
  • Recommended Additional Part
    198001 - BILLET SPANNER WRENCH KIT
  • Recommended Additional Part
    252011 - 2.5 Piggyback/remote Resi/bypass Rebuild Kit
  • Remote Reservoir
    Yes
  • Shaft Diameter
    0.875 in.
  • Shock Absorber Body End Measuring Point
    Top of Upper Mount Plate
  • Shock Absorber Rod End Measuring Point
    Flat on Bar Pin
  • Spring Color
    Black
  • Spring Material
    Steel
  • Spring Rate Type
    Linear
