Transmission Clutch Kit - T1S-S01

        Transmission Clutch Kit - T1S-S01

        Part Number:T1S-S01
        Advanced Clutch

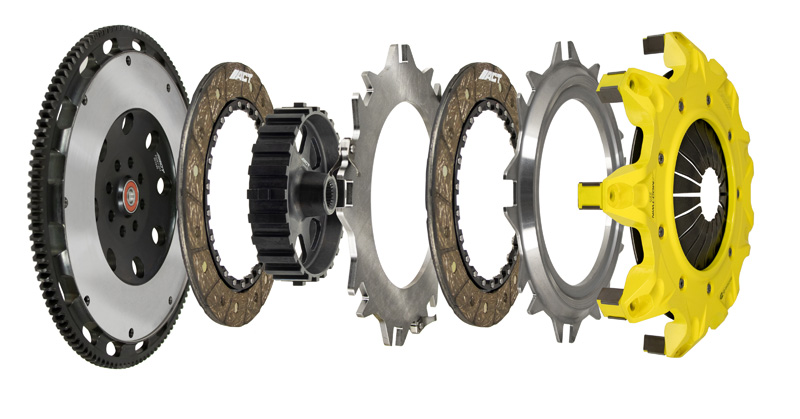

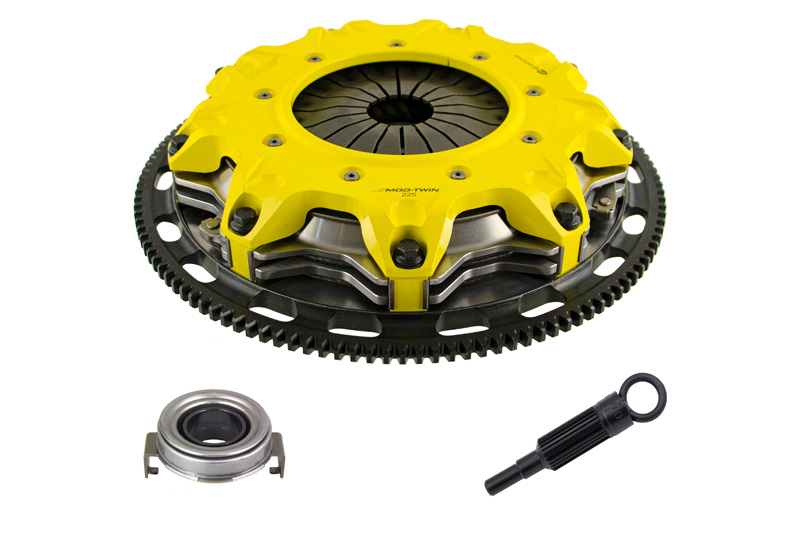

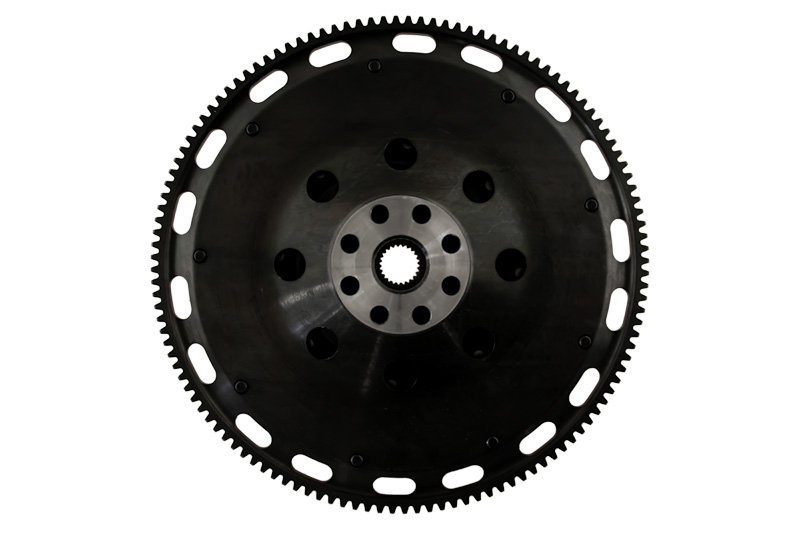

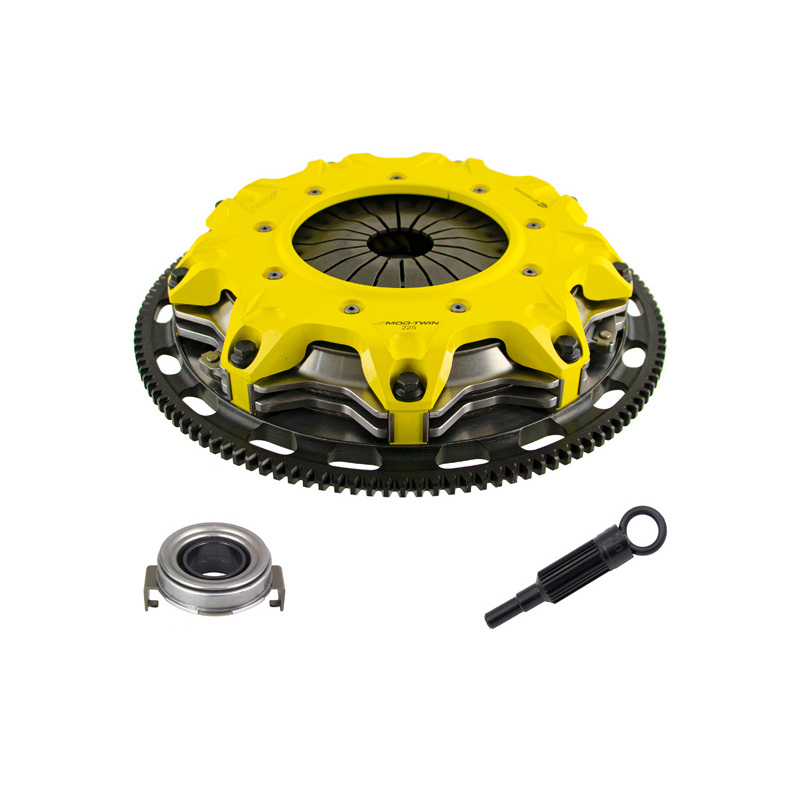

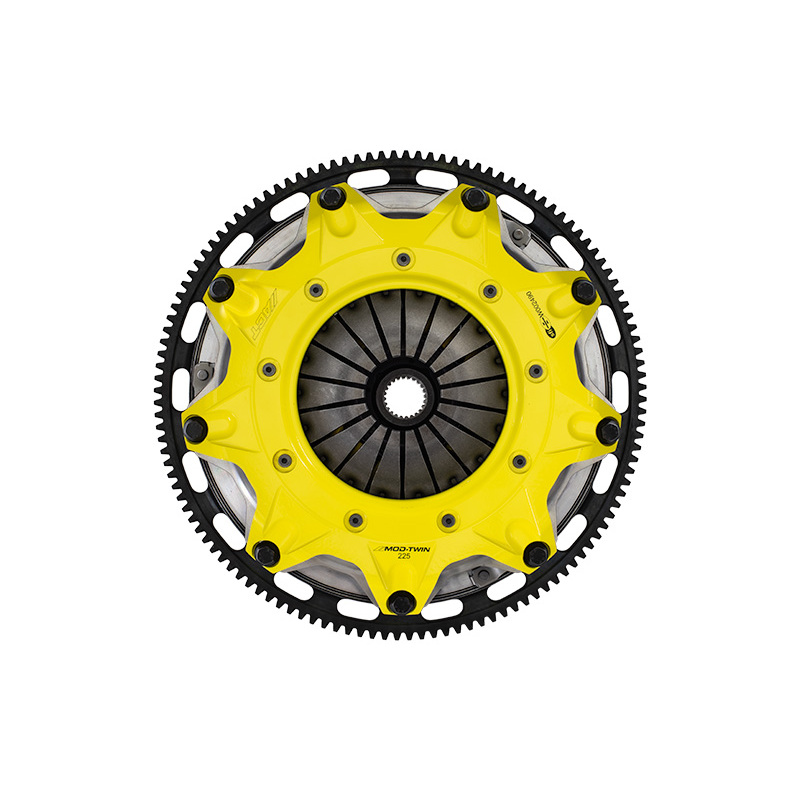

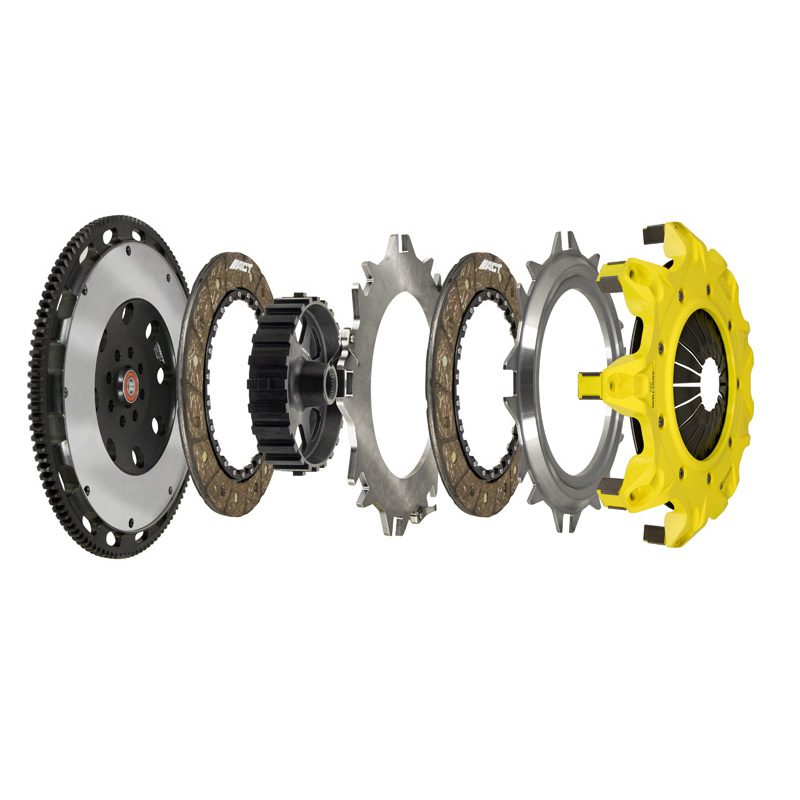

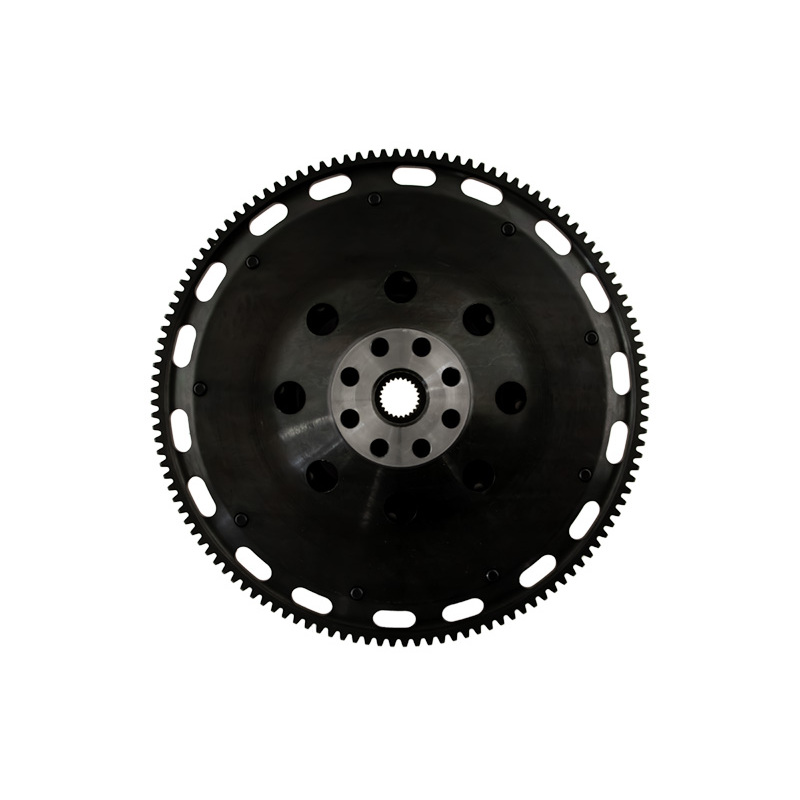

        T1S-S01 Mod-Twin 225 HD Rigid Street Kit blends easy pedal feel, smooth but positive engagement with quick shifting for high powered AWD's by combining twice the organic friction surfaces with a no-nonsense rigid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive chrome-moly hub which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Retail price
        • $1,896.00
        Features
          • SKU
            T1S-S01
          • Brand
            Advanced Clutch
          • Alignment Tool Included
            Yes
          • Clutch Disc Diameter
            225 mm
          • Clutch Disc Diameter
            8.80 in.
          • Disc Material
            Organic
          • Flywheel Included
            Yes
          • Input Shaft Diameter
            1.0 in.
          • Input Spline Quantity
            24
          • Pressure Plate Series
            Heavy Duty
          • Prop 65 - Required to list in California with Warning
            Yes
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Release Bearing Included
            Yes
          • SFI Certification Rating
            1.2
          • Torque Capacity
            625 ft/lbs.
