        ACT Mod-Twin 10.5 XT Rigid Race

        Part Number:T2R-F12

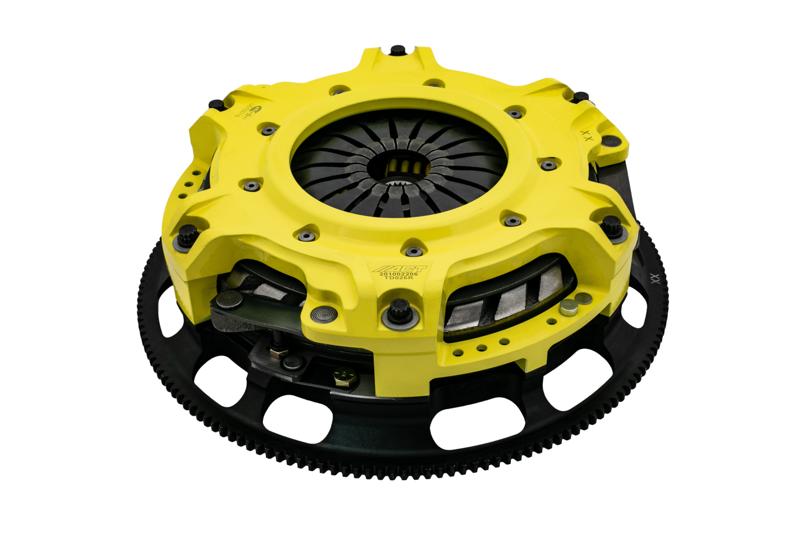

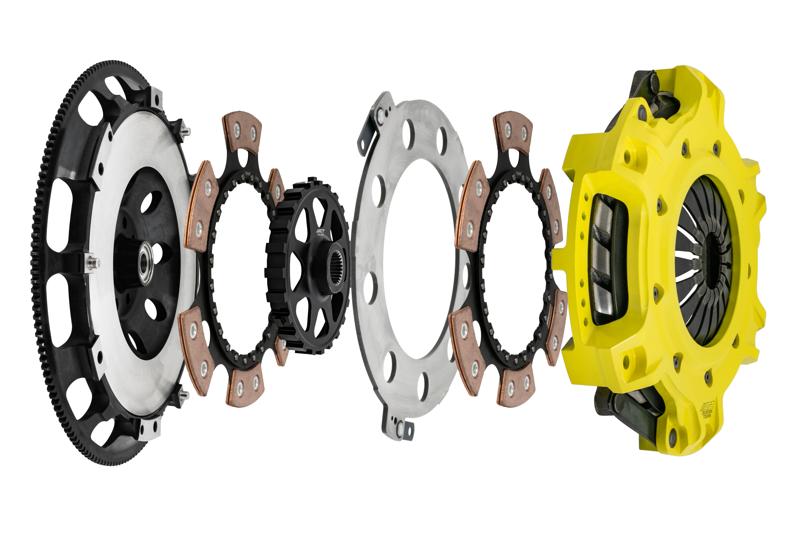

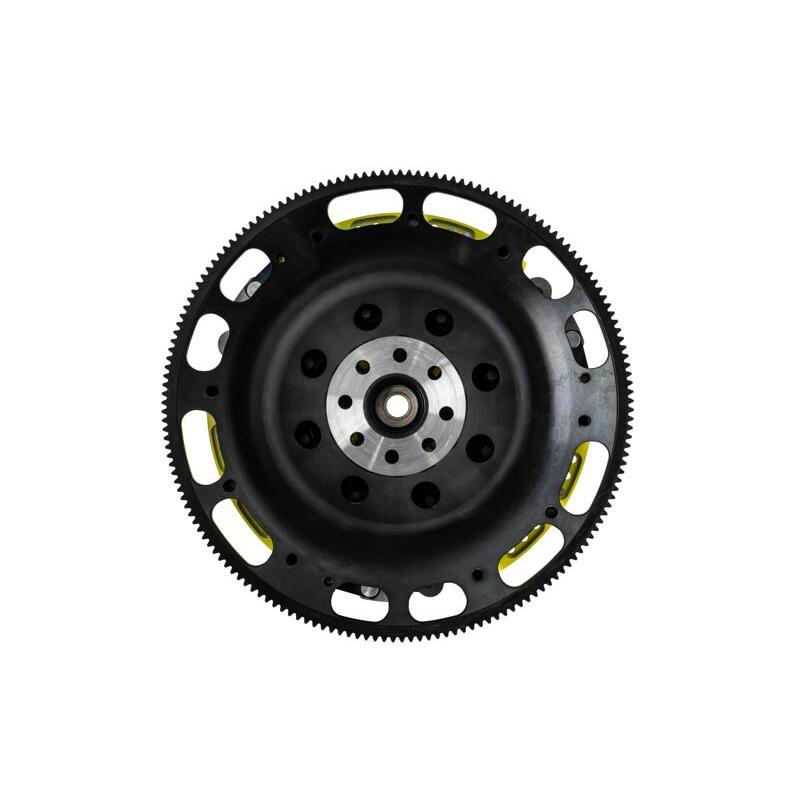

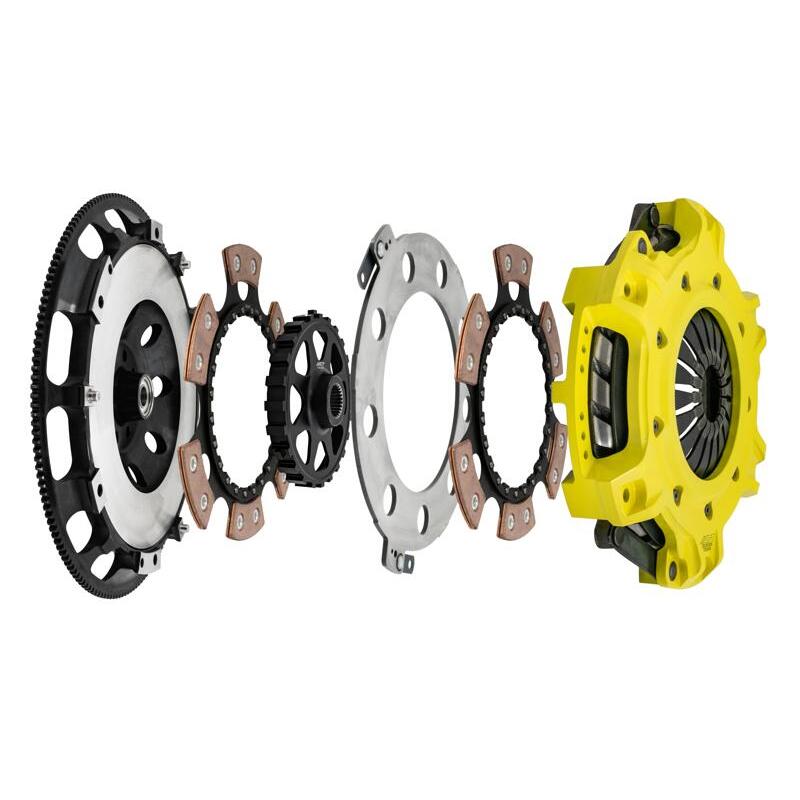

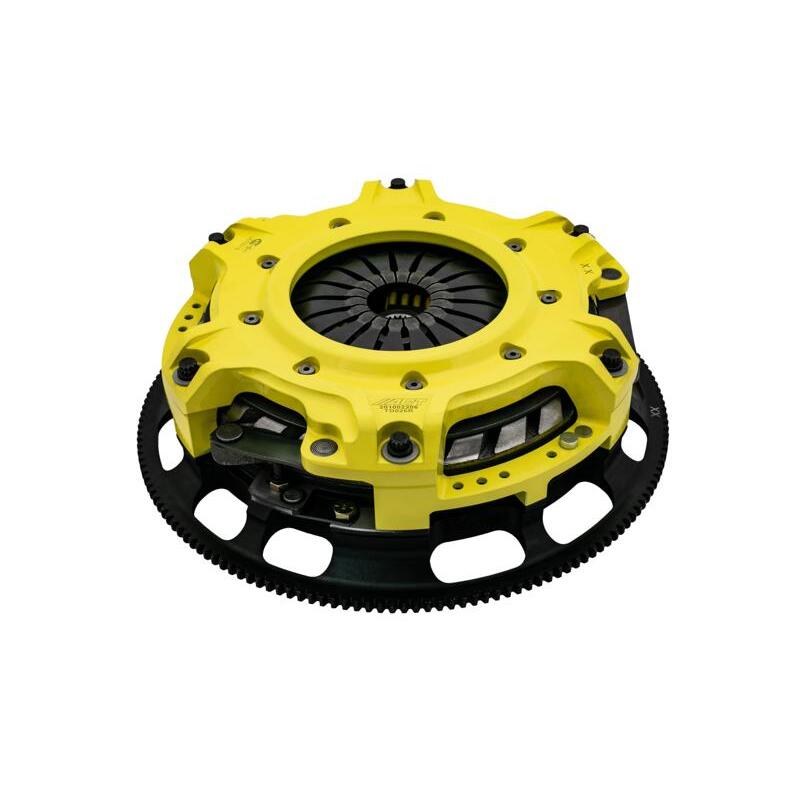

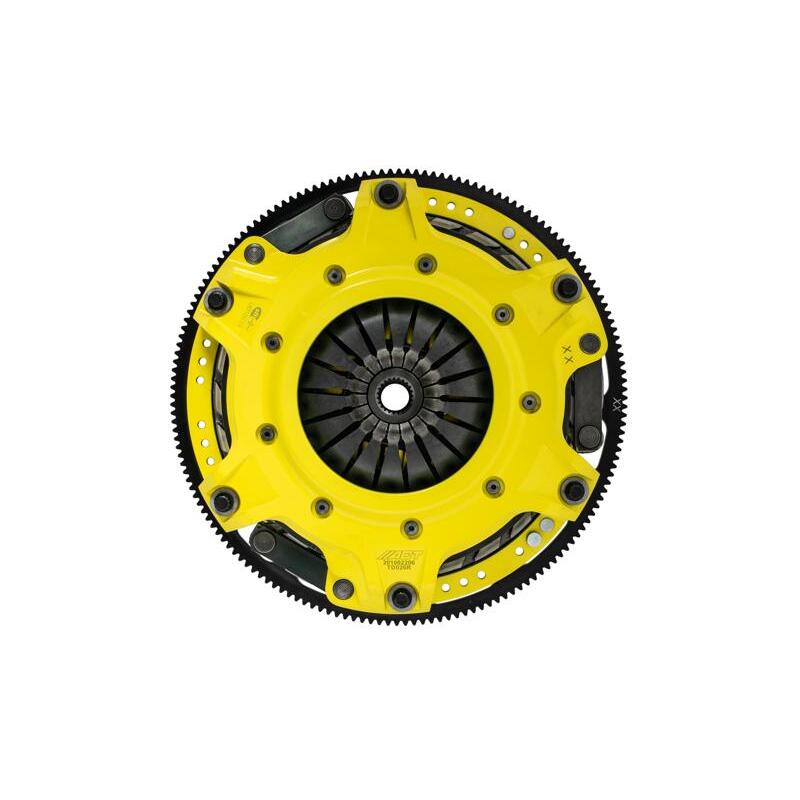

        T2R-F12 Mod-Twin 10.5 XT Rigid Race Kit tackles aggressive launches and rapid shifting of high-powered machines by combining twice the ceramic friction surfaces with a no-nonsense solid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process to provide a consistent light pedal feel. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive Chromoly hub, which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (where applicable). Mod-Twin clutches are fully rebuildable, and replacement discs may be ordered separately.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Retail price
        • $2,628.00
        Features
        • SKU
          T2R-F12
        • Brand
          Advanced Clutch
        • Clutch Disc Diameter
          10.5 in.
        • Clutch Disc Diameter
          267 mm
        • Clutch Master Cylinder Included
          No
        • Clutch Slave Cylinder Included
          No
        • Disc Material
          Ceramic
        • Disc Type Sprung Solid
          Solid
        • Flywheel Bolts Included
          Yes
        • Grade Type
          Performance
        • Grease Included
          Yes
        • Includes Alignment Tool
          Yes
        • Includes Flywheel
          Yes
        • Input Shaft Diameter
          1.0 in.
        • Input Spline Quantity
          23
        • Pilot Bearing Included
          Yes
        • Pilot Bushing Included
          No
        • Pressure Plate Bolts Included
          No
        • Pressure Plate Series
          Xtreme
        • Product Weight (lbs.)
          44.5
        • Prop 65 - Required to list in California with Warning
          Yes
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Prop 65 Long Label
          Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
        • Release Bearing Included
          No
        • SFI Certification Rating
          1.2
        • Torque Capacity
          1,263 ft/lbs.
        • Torque Capacity Percentage Over Stock
          108%
