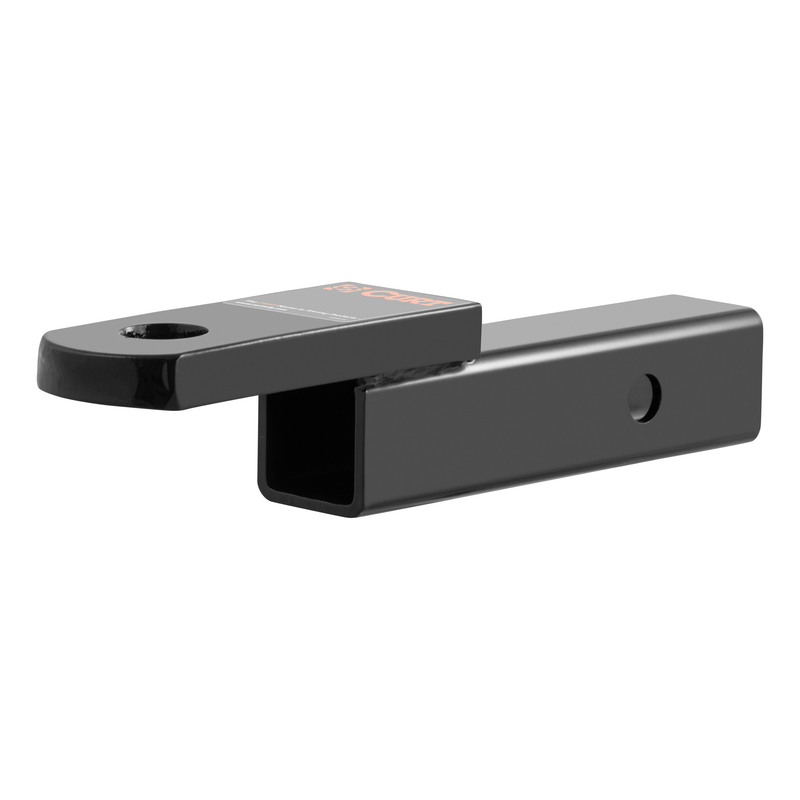

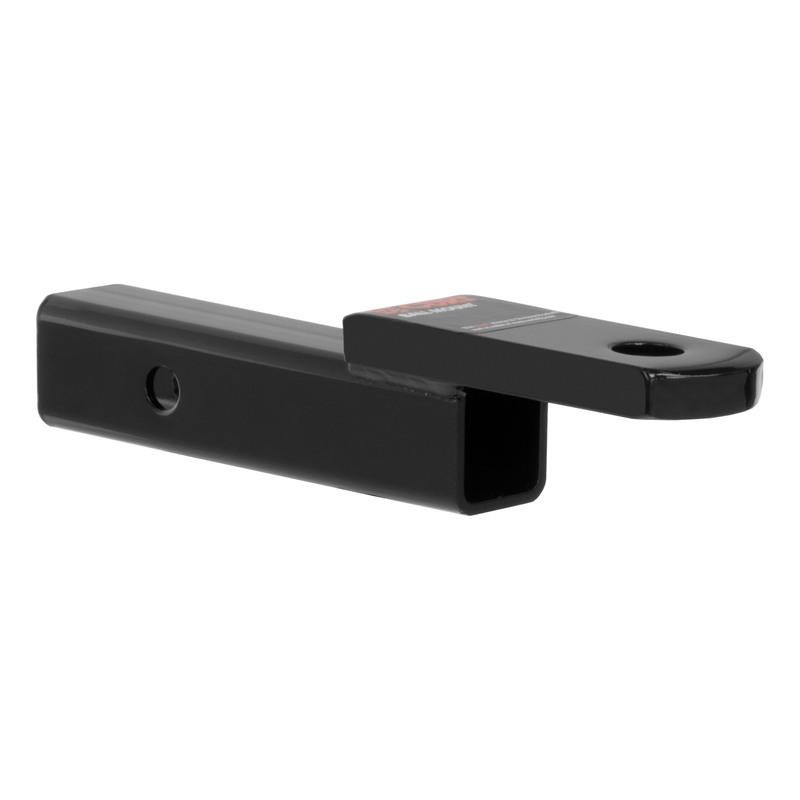

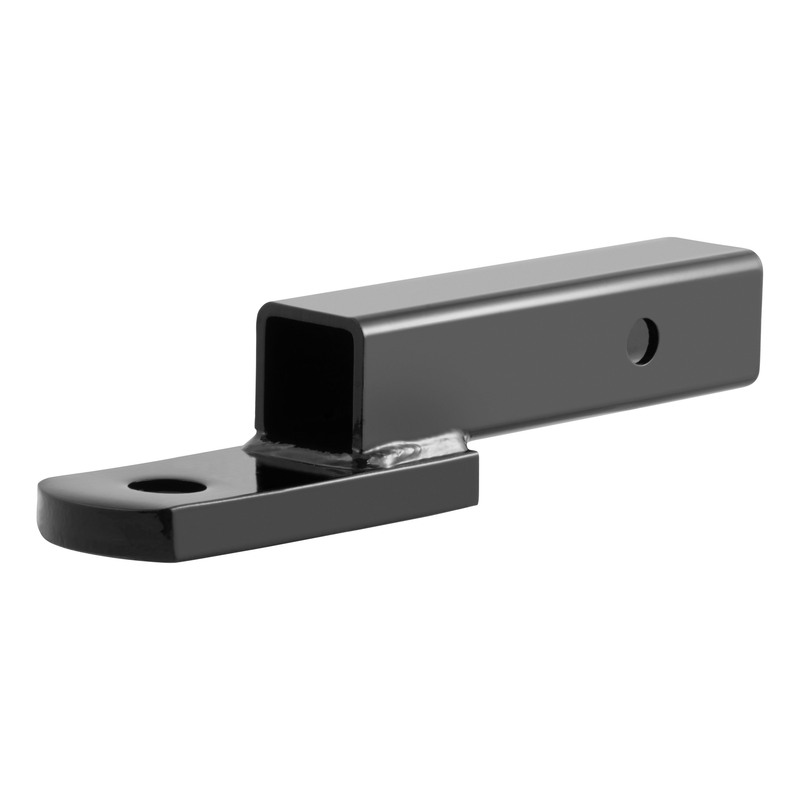

CURT 45828 Class 3 Trailer Hitch Ball Mount, Imported Fits 2-Inch Receiver, 7,500 lbs, 1-Inch Hole, 2-In Drop, 3/4-Inch Rise
        CURT

        CURT 45828 Class 3 Trailer Hitch Ball Mount, Imported Fits 2-Inch Receiver, 7,500 lbs, 1-Inch Hole, 2-In Drop, 3/4-Inch Rise

        Part Number:45828

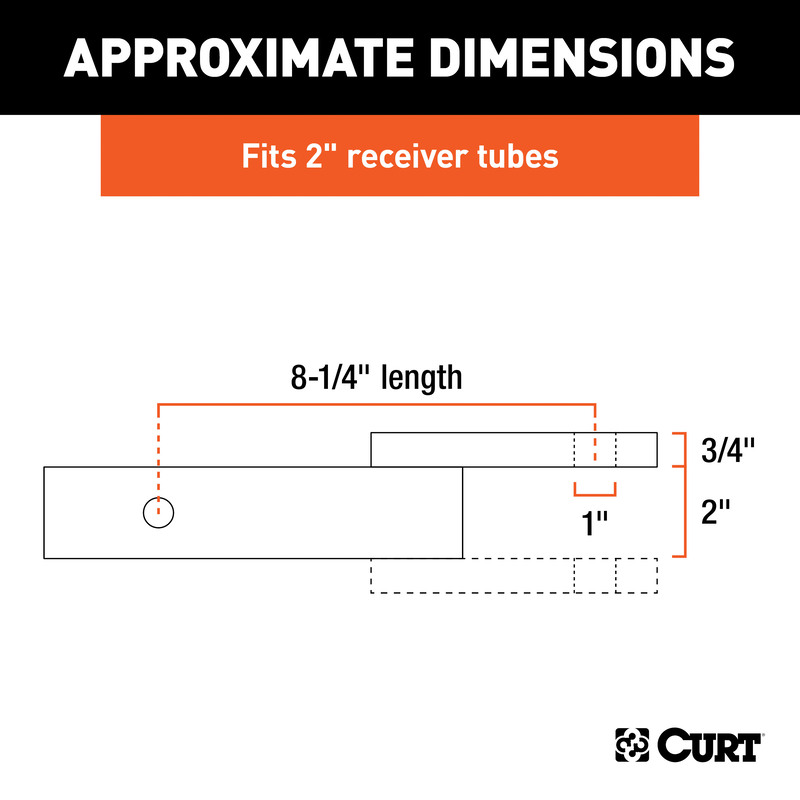

        CURT class 3, or standard-duty, ball mounts are a step up from classes 1 and 2. They feature a 2" x 2" shank and have a higher weight capacity for towing heavy-duty trailers, including utility trailers, boat trailers, campers, single-horse livestock trailers and most recreational vehicle trailers. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This particular class 3 ball mount has a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs. It features a length of 8-1/4", a drop of 2" and a possible rise of 3/4". Class 3 ball mounts are CNC-formed and robotically welded to ensure unwavering precision and dependable strength in each and every unit. We mechanically descale each one to provide a smooth surface for a long-lasting finish. This class 3 ball mount comes with a durable gloss black powder coat finish to protect against corrosion, scratches, UV damage and more to give it the thick skin it needs to face the road ahead.

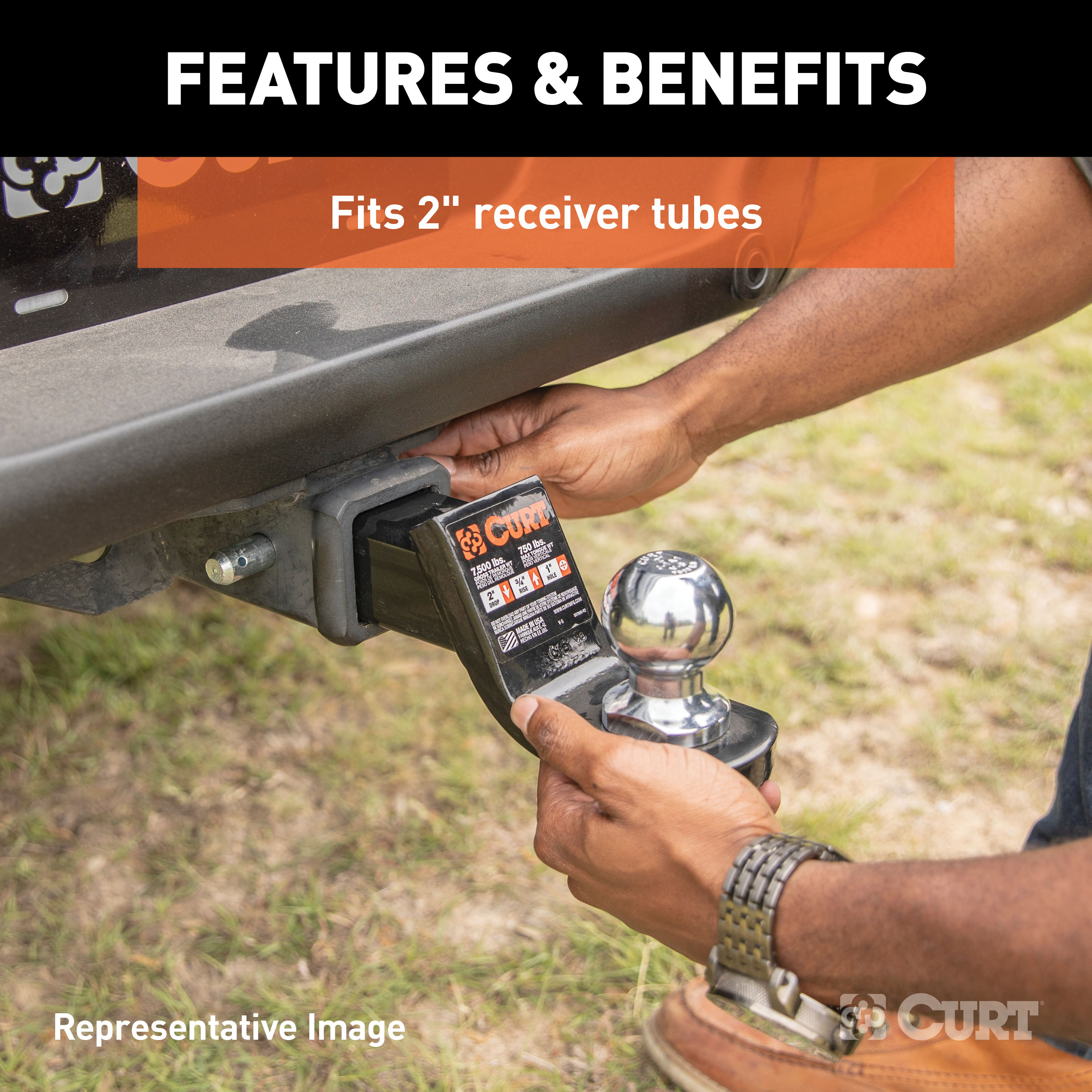

        • Fits trailer hitches with a 2" x 2" receiver tube opening

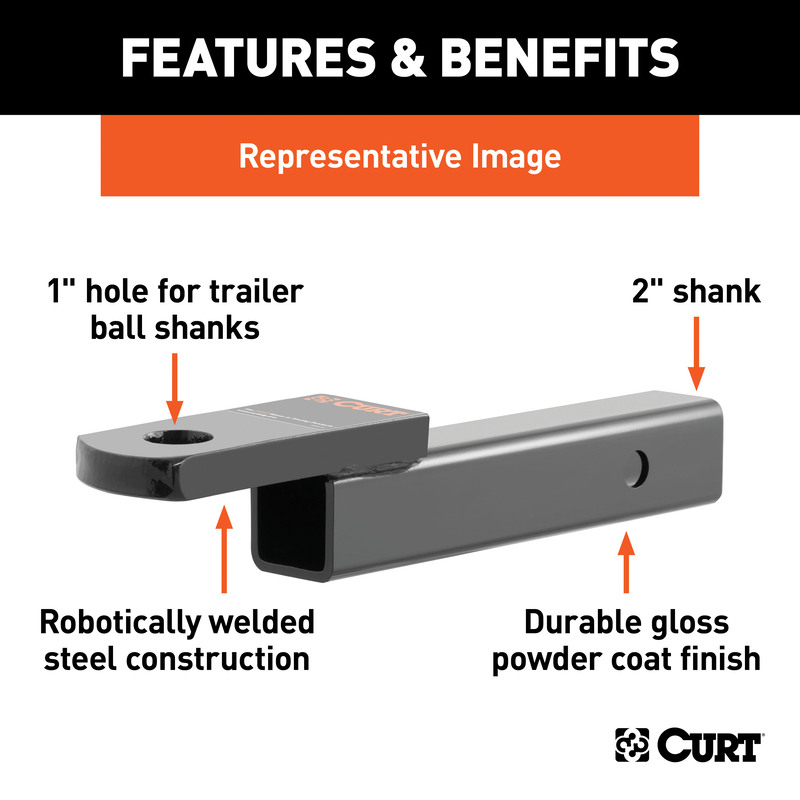

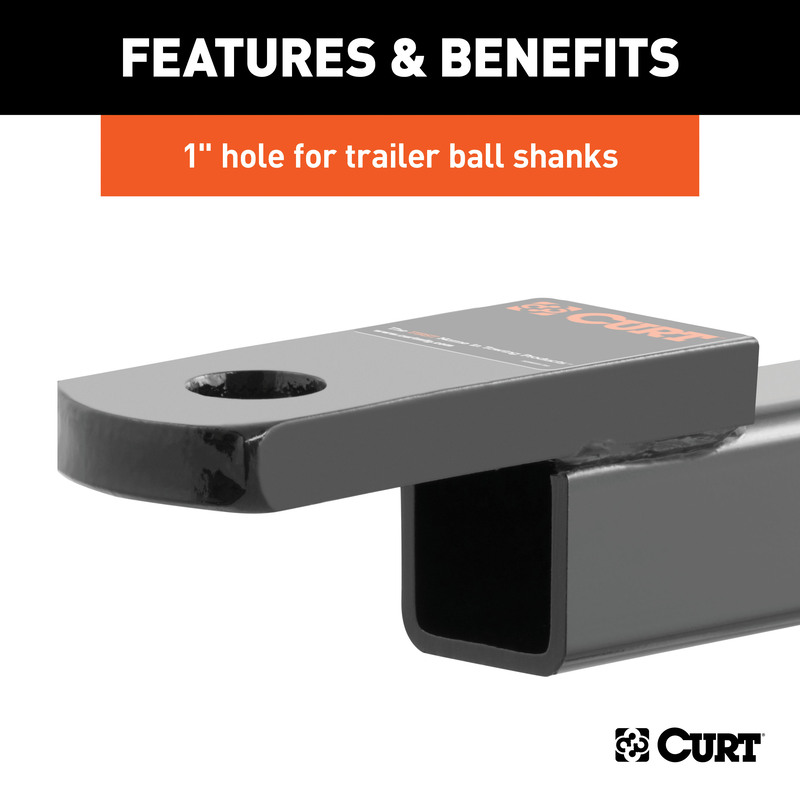

        • Equipped with a 1" hole to accept a trailer ball shank
        • 3/4" rise or 2" drop for precise trailer leveling
        • Hollow shank weighs less and can be used with an anti-rattle kit
        • CNC-formed, robotically welded and mechanically descaled for a perfect fit
        • Protected by a durable powder coat finish
        • Limited lifetime warranty (one-year finish, one-year parts)
        Retail price
        • $31.95
        Features
        • SKU
          45828
        • Brand
          CURT
        • Box Height in Inches - XA
          0
        • Box Length in Inches - XA
          0
        • Box Width in Inches - XA
          0
        • Container Cases Qty - XA
          1920
        • Container Pallet Qty - XA
          20
        • Container Type - XA
          40GP
        • Container Unit Qty - XA
          3840
        • Container Volume Cubic Feet - XA
          0.00000
        • Container Volume Cubic Meter - XA
          0.00000
        • Container Weight KG - XA
          11746
        • Container Weight Lbs - XA
          25840
        • Finish - XA
          Blank
        • Freight Rate Class
          60.0
        • Gross Trailer Weight
          7,500 lbs.
        • Item Class
          OBS
        • Item Height - XA
          0.000
        • Item Length - XA
          0.000
        • Item Width - XA
          0.000
        • Master Case Height Inches - XA
          3.145
        • Master Case ITF14
          20612314458282
        • Master Case ITF14 - XA
          20612314458282
        • Master Case Inner Pack Qty - XA
          0
        • Master Case Length Inches - XA
          12.992
        • Master Case Qty - XA
          2
        • Master Case Volume Cubic Feet - XA
          0.00000
        • Master Case Weight Lbs - XA
          13.000
        • Master Case Width Inches - XA
          5.512
        • Material
          Carbon Steel
        • Mount Type Description - XA
          Blank
        • Pallet Case Per - XA
          96
        • Pallet Case Per Layer - XA
          12
        • Pallet Cases Per - XA
          96
        • Pallet Cases Per Layer - XA
          12
        • Pallet Layer of Cases - XA
          8
        • Pallet Qty - XA
          0.000
        • Pallet Total Height Inches - XA
          30.197
        • Pallet Total Weight Per - XA
          1292.000
        • Parcel Allowed
          Yes
        • Product Weight - XA
          0.000
        • Prop 65 Label Text - XA
          Blanks
        • Prop 65 Material - XA
          Unknown
        • Prop 65 Reason - XA
          Unknown
        • Prop 65 Warning Label Type - XA
          Unknown
        • Prop 65 Warning Y/N - XA
          Unknown
        • Receiver Tube Size
          2.0 in.
        • Sales Family Code - XA
          ACCES
        • Sales Family Description - XA
          ACCESSORIES
        • Sales Group Description - XA
          BALL MOUNT
        • Shank Diameter
          2.0 in.
        • Shipping Weight - XA
          6.000
        • Side Application Type Description - XA
          Blank
        • Tariff 301
          Yes
        • Truckload Cases Qty - XA
          2304
        • Truckload Dom Pickup Location - XA
          Eau Claire, Wi
        • Truckload Pallets Qty - XA
          24
        • Truckload Units Qty - XA
          2304
        • Truckload Volume Cubic Feet - XA
          134.00000
        • Truckload Weight - XA
          29508
        • Warranty
          Limited Lifetime - One Year on Finish, One Year on Parts
