Diode Dynamics - SS5 7-Pod CrossLink Mounting Kit for Prinsu/Sherpa Roof Racks, Pro White Combo
        Diode Dynamics

        Diode Dynamics - SS5 7-Pod CrossLink Mounting Kit for Prinsu/Sherpa Roof Racks, Pro White Combo

        Part Number:DD7828

        Features

        • Compatible with Prinsu and Sherpa roof racks with a 40-inch lightbar cutout.
        • Allows you to mount a 6-pod or 7-pod SS5 CrossLink lightbar.

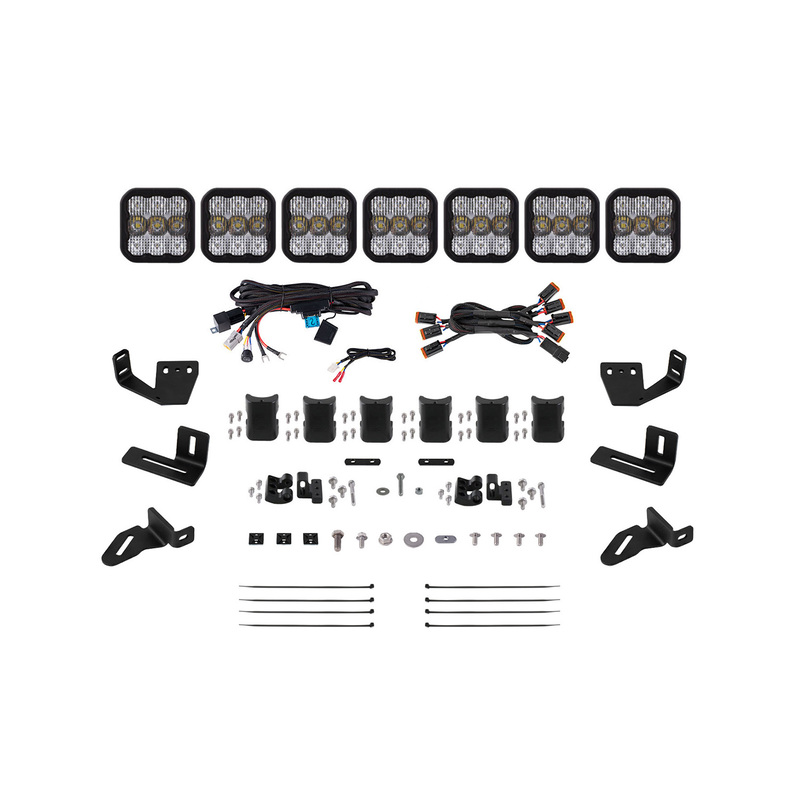

        • Included support brackets provide extra stabilization and load distribution.
        • Does not require removal of wind deflector.
        • Durable stainless steel construction.
        • Simple installation no modification needed.

        Overview

        Have you wanted to mount an SS5 CrossLink Lightbar to your roof rack but didn't want to fabricate custom brackets or remove the wind deflector? If the answer is yes this new kit is for you! This kit allows you to mount a 6-pod or 7-pod SS5 CrossLink lightbar directly to your roof rack without having to remove the wind deflector. Unlike other options on the market the kit includes support brackets for additional stabilization and load distribution reducing excessive vibration.

        Bolt-On Installation. The application-specific brackets included in this kit were CAD-designed to bolt into existing mounting points. No cutting or drilling required! This kit is compatible with Prinsu roof racks with a cutout for a 40-inch lightbar and Sherpa roof racks with the half-height wind deflector.

        Focused. The custom-engineered TIR optic in the SS5 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.

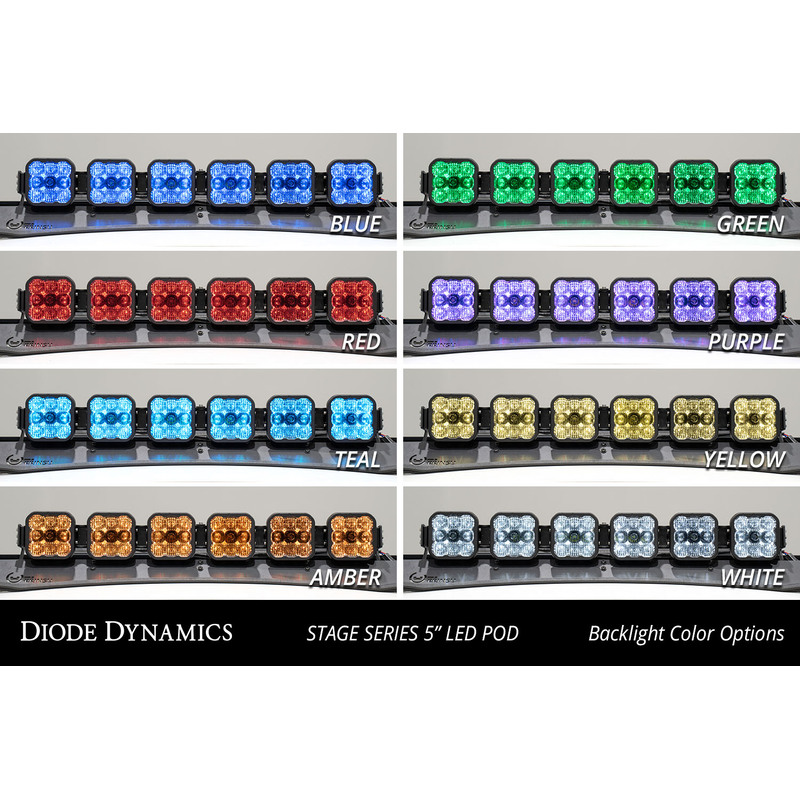

        Selectable Backlight. The SS5 LED Pods included in this kit feature a selectable backlight with eight different color options. Selecting your backlight color is easy - simply alternate the power on and off. There(TM) s no complicated programming with a controller! NOTE: Due to the yellow lens the Yellow kit is only available with an Amber backlight color.

        • Advanced TIR optics provide high efficiency and focus
        • Intense Focus on Quality
        • High-intensity automotive-type LEDs
        • US-Based Company
        • Pin-fin heatsink design
        • Industry Leading Warranties
        • Integrated Deutsch-style connector
        • Durable powdercoated aluminum construction
        Retail price
        • $2,849.95
        Features
        • SKU
          DD7828
        • Brand
          Diode Dynamics
        • Add-On
          N/A
        • Base Color
          Black
        • Base Material
          Steel
        • Bolt Thread Type
          Medium
        • Color Temperature
          6,000K
        • Compliance Description
          Durability Test
        • Compliance Rating
          SAE J575
        • IP Rating
          IP69K
        • Includes Mounting Hardware
          Yes
        • Input Power
          90.0W
        • Installation Method
          Bolt-On
        • Lumens
          9,700 lm
        • Luminous Intensity (candela)
          75,700 cd
        • Operating Temperature
          -40C to +80C (-40F to +185F)
        • Prop 65 - Required to list in California with Warning
          No
        • Sheen Level
          Flat
        • Universal Or Specific Fit
          Specific
        • Voltage
          9.0-16.0V DC
