LEED Brakes Power Front Kit with Drilled Rotors and Anodized Calipers

LEED Brakes Power Front Kit with Drilled Rotors and Anodized Calipers

Part Number:FC2006-P405X

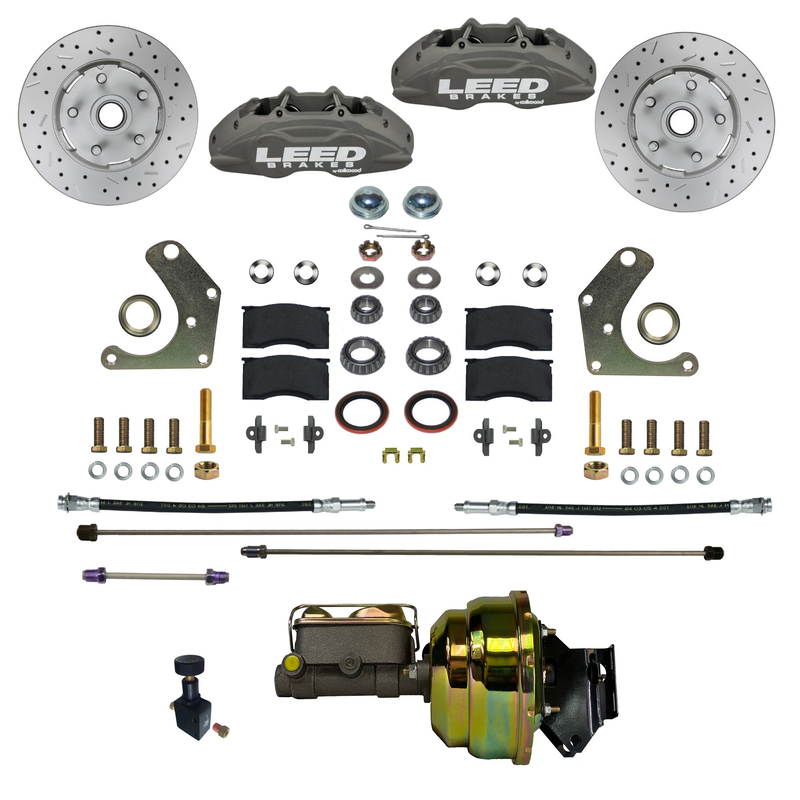

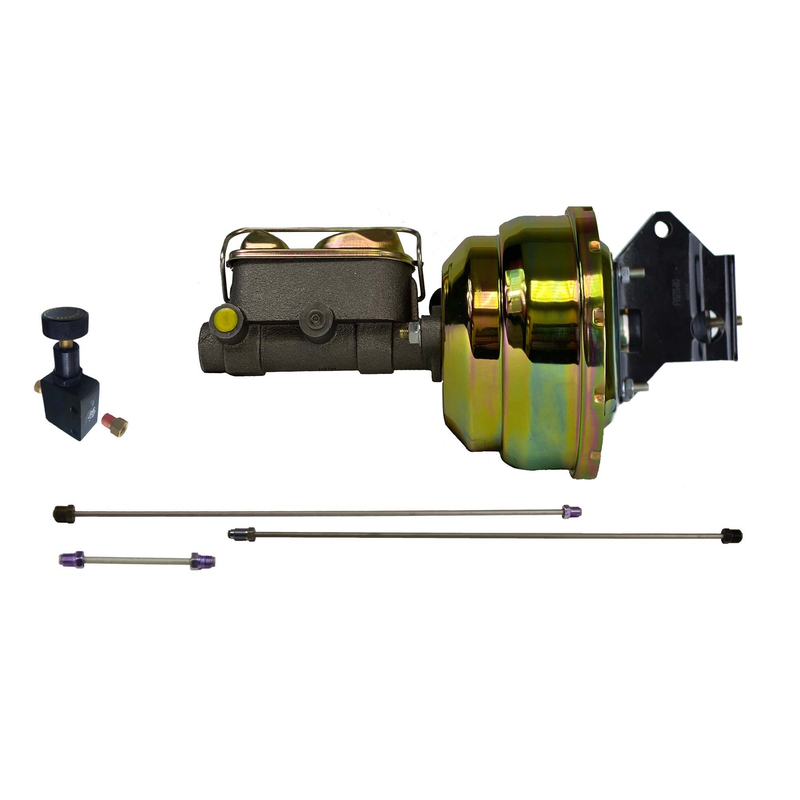

Add the safety, reliability and performance of disc brakes to your vehicle with our power drum to power disc brake conversion. In this kit you receive everything you need to mount Max Grip Lite 4 piston disc brakes to the original drum brake spindles currently on your vehicle. As an upgrade to our standard kit, this kit includes our MaxGrip XDS Cross Drilled & Slotted Rotors as well as Braided Hoses. This kit is a direct bolt on with NO cutting or welding required. The included power brake booster is a replacement for cars with factory power brakes. All components used in these kits are new high quality, precision machined products. A great kit with a modern performance look and easy installation! Kit is designed to work on Factory Power Brake Cars Only. If you have a factory manual brake car, please use Power Disc Brake kit number FC2006-8405X

Bolts directly to factory drum brake spindles
THE LEED BRAKES DIFFERENCE

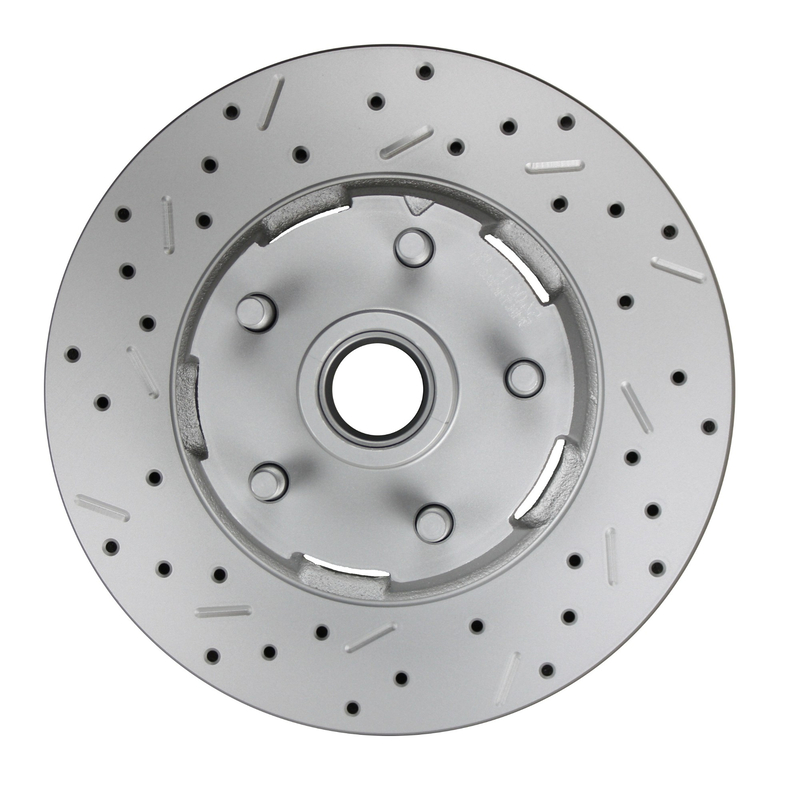

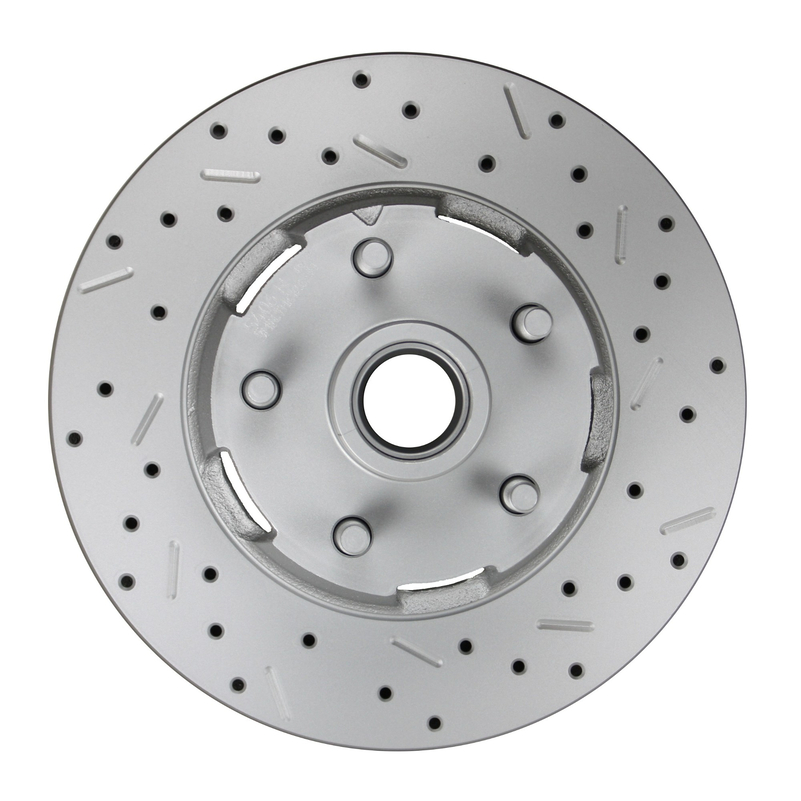

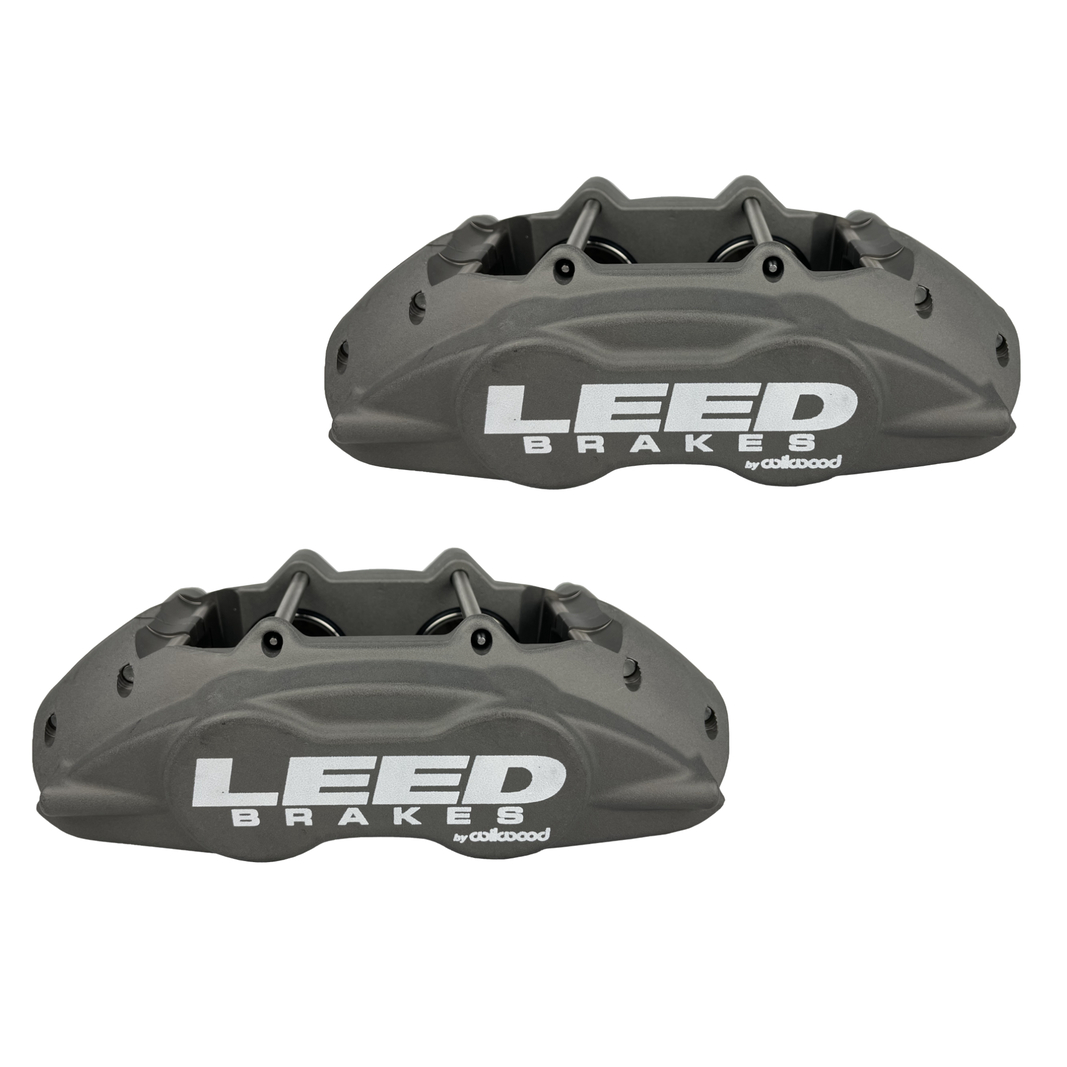

Includes 4-Piston Aluminum calipers and 11-1/4" drilled and slotted rotors
Expert Advice- Need help with your brake system, contact us today!
Fast Shipping Most orders ship within 1-2 business days
Warranty Each LEED Brakes product is backed by a 1year warranty
EZ Returns Fast returns or refunds
HAVE A QUESTION? ASK THE PROS - 1-716-852-2139 Mon-Fri 9am-430pm EST

Retail price

Features
Fitment
Installation
More Detail
Videos

Features

SKU
FC2006-P405X
Brand
Leed Brakes
Brake Booster Diameter
8 in.
Brake Booster Finish
Zinc Plated
Brake Booster Type
Dual Diaphragm
Brake Pad Material
Semi-Metallic
Caliper Bracket Color
Silver
Caliper Bracket Material
Steel
Caliper Bracket Mount Hole Center To Center Length
2.75 in.
Caliper Bracket Mount Hole Diameter
7/16 - 20 UNF
Caliper Finish
Anodized
Caliper Material
Aluminum
Caliper Piston Material
Stainless Steel
Caliper Piston Quantity
3
Disc Brake Rotor Type
Vented
Fitment Note
Will Fit Most 14 in. Mopar Wheels. For Cars with Factory Power Brakes, Includes Booster to Replace Factory Power Booster. See FC2003-8405 for Cars with Factory Manual Brakes.
Flex Hose 1 Bracket
Is not Attached
Flex Hose 1 Length
12.25 in.
Flex Hose 2 Bracket
Is not Attached
Flex Hose Fitting Gender - End 1
Female
Flex Hose Fitting Gender - End 2
Male
Flex Hose Thread Diameter - End 1
3/8 - 24 UNF
Grade Type
Performance
Includes Brake Booster
Yes
Includes Brake Lines
Yes - From Master Cylinder to Valve
Includes Brake Pedal Pushrod
Yes
Includes Brake Rotor
Yes
Includes Caliper
Yes
Includes Master Cylinder
Yes
Includes Spindles
No - Fits Stock Drum Brake Spindle
Master Cylinder Bore Size
1.0 in.
Master Cylinder Finish
Raw
Master Cylinder Material
Cast Iron
Minimum Recommended Wheel Diameter
14 in.
Position
Front
Prop 65 - Required to list in California with Warning
Yes
Prop 65 - Short Label
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 - Type
Cancer and Reproductive
Prop 65 - Warning Image Label
Prop 65 sticker web use.png
Rotor Diameter
11.28 in.
Rotor Finish
Zinc Plated
Rotor Material
Cast Iron
Rotor Outside Diameter
11.29 in.
Rotor Style
Cross Drilled and Slotted
Rotor Style
Slotted and Drilled
Rotor Thickness
0.810 in.
Thread Diameter - Flex Hose End 2
0.125 in.
Wheel Lug Hole Quantity
5

Rotor Thickness
.810
Status
NEW
Title
LEED Brakes Power Front Kit with Drilled Rotors and Anodized Calipers

See More

Fitment

Installation

INS0169 FC2006-P405X Mopar Power Kit Instructions.pdf
