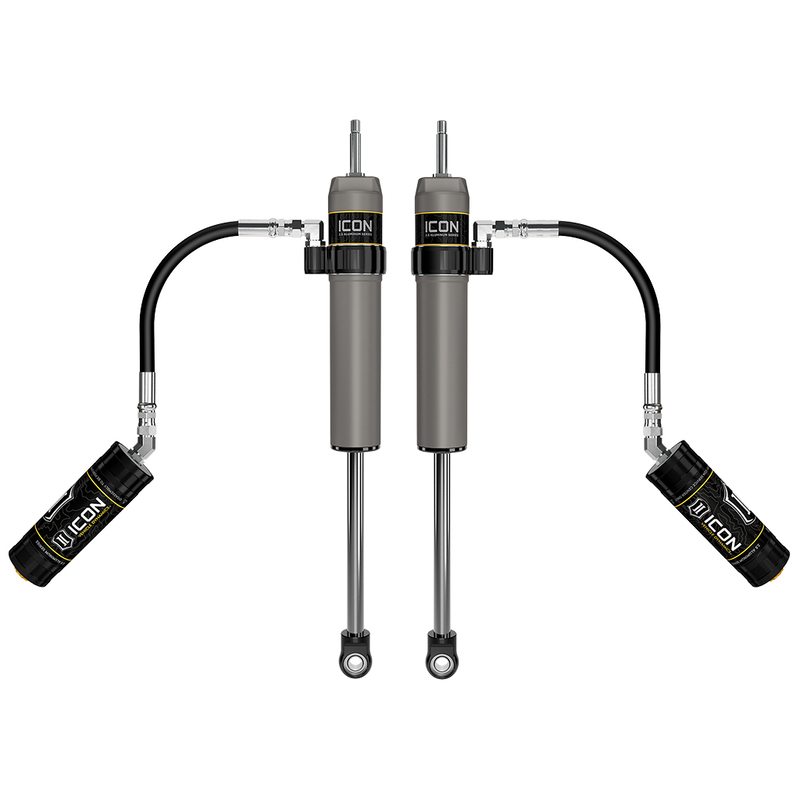

ICON 2024-2025 Toyota Tacoma, 0-1” Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Remote Reservoir, Pair
        ICON Vehicle Dynamics

        ICON 2024-2025 Toyota Tacoma, 0-1” Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Remote Reservoir, Pair

        Part Number:57808P
        ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
        • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
        • PTFE lined spherical bearings and application specific mounting hardware
        • 6061 aircraft grade aluminum CNC machined components
        • Fully rebuildable and re-tunable
        • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
        • One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
        • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
        • Nitrogen charged monotube design with remote reservoir
        • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
        • All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
        • 7/8” diameter induction hardened, chrome plated shock shaft
        • Rubber dust boot included for added shaft protection
        Retail price
        • $1,287.51
        Features
        • SKU
          57808P
        • Brand
          ICON Vehicle Dynamics
        • AAP_UDA_12
          EA
        • AAP_UDA_22
          1
        • AAP_UDA_4
          55
        • Active or Passive Suspension
          Passive
        • Adjustable
          No
        • Adjustable Compression
          No
        • Adjustable Damping
          No
        • Adjustable Rebound
          No
        • Bore Diameter
          57.15.0 mm
        • California Prop 65 Warning
          Yes
        • Cylinder Color
          Grey
        • Cylinder Diameter
          2.5 in.
        • Cylinder Material
          Aluminum
        • Damping Type
          Oil
        • External Reservoir
          Yes
        • Gas Charged
          Yes
        • Grade Type
          Performance
        • Includes Boot
          Yes
        • Includes Bump Stops
          No
        • Includes Mounting Hardware
          Yes
        • Lower Mount Type
          Eyelet
        • Mount Type - Upper
          Stem
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Recommended Additional Part
          252011 - 2.5 Piggyback/remote Reservoir/bypass Rebuild Kit
        • Recommended Additional Part
          252012 - -4 TO -10 HOSE SHIELD KIT
        • Reservoir Type
          Remote Reservoir
        • Shaft Diameter
          0.875 in.
        • Shaft Material
          Chrome
        • Shock Absorber Body End Measuring Point
          Shoulder of Stem
        • Shock Absorber Rod End Measuring Point
          Center of Eyelet
        • Title
          ICON 2024-2025 Toyota Tacoma, 0-1” Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Remote Reservoir, Pair
        • Tube Outside Diameter
          2.5 in.
        • Valving Type
          Digressive
