ACT Mod-Twin 10.5 XX Sprung Race
Advanced Clutch

ACT Mod-Twin 10.5 XX Sprung Race

Part Number:T3RS-G14

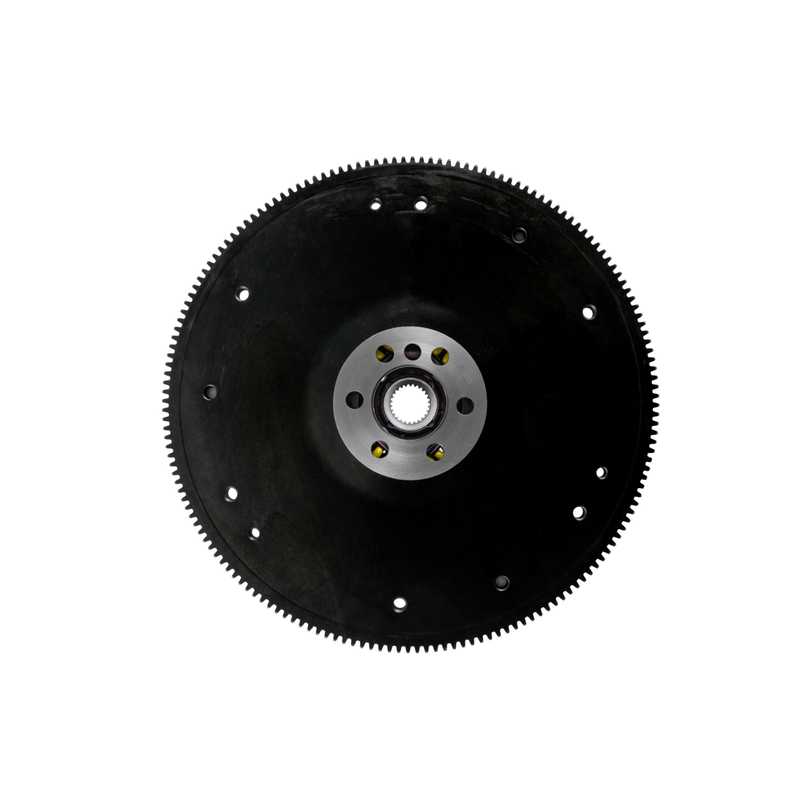

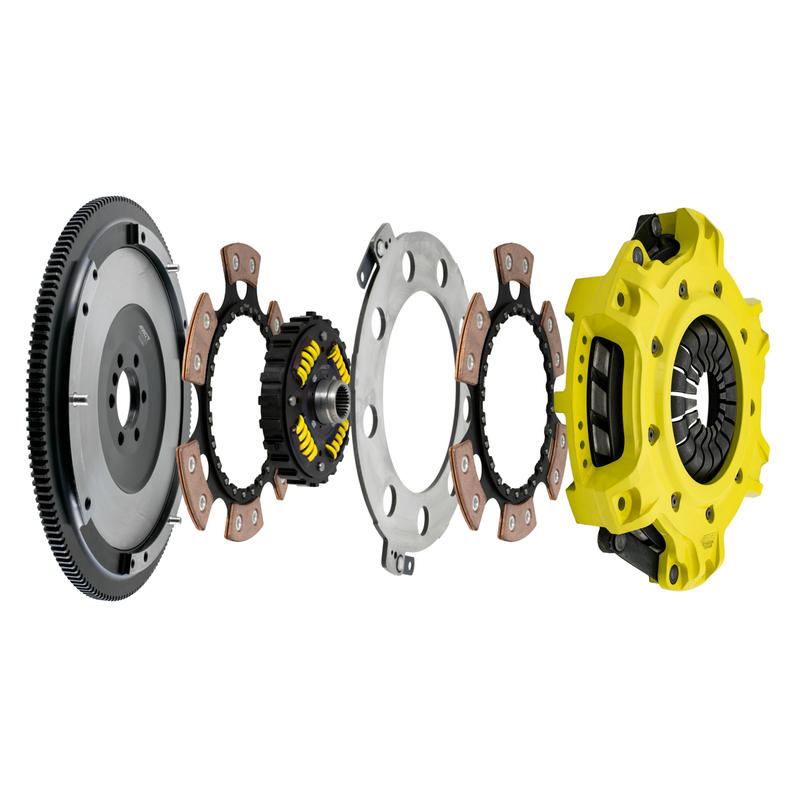

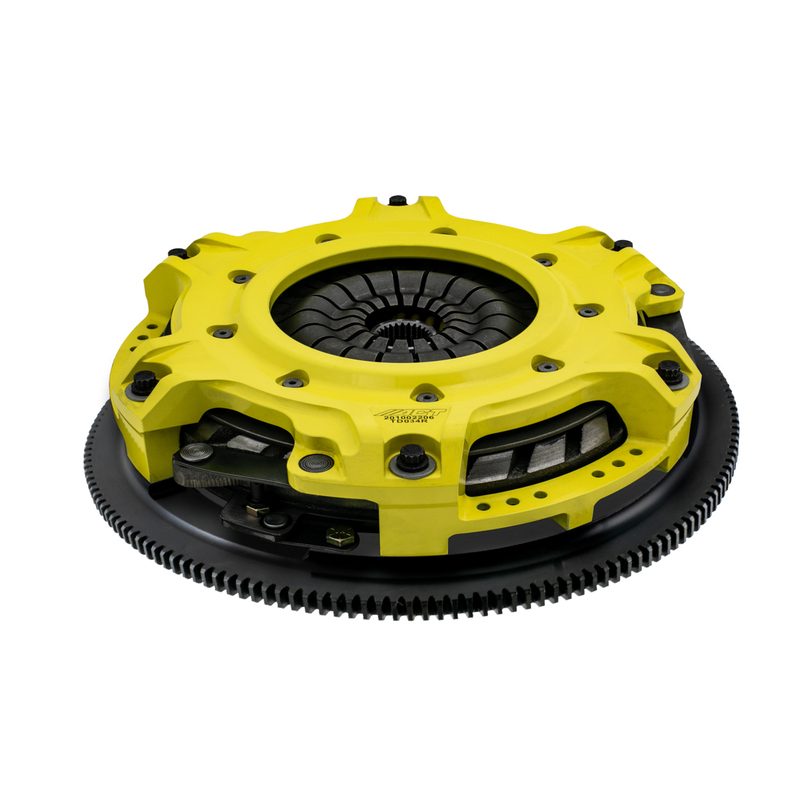

T3RS-G14 Mod-Twin 10.5 XX Sprung Race Kit performs aggressive launches and smoother shifting in high-powered machines by combining twice the ceramic friction surfaces with an ultra-durable sprung Mono-Drive hub assembly in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process to provide a consistent pedal feel requiring moderate effort. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive sprung hub assembly, which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, alignment tool and pilot bearing (where applicable). Mod-Twin clutches are fully rebuildable, and replacement discs may be ordered separately.
  • "Excellence in Performance", backed by the best one-year warranty in the industry!
Retail price
  • $2,349.00
Features
  • SKU
    T3RS-G14
  • Brand
    Advanced Clutch
  • Clutch Disc Diameter
    10.5 in.
  • Clutch Disc Diameter
    267 mm
  • Disc Material
    Ceramic
  • Grade Type
    Performance
  • Includes Alignment Tool
    Yes
  • Includes Flywheel
    Yes
  • Input Shaft Diameter
    1.125 in.
  • Input Spline Quantity
    26
  • Pressure Plate Series
    MaXX Xtreme
  • Prop 65 - Required to list in California with Warning
    Yes
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • SFI Certification Rating
    1.2
  • Torque Capacity
    1,496 ft/lbs.
  • Weight
    45.1 lbs. (20.5 kg)
