ACT Mod-Twin 10.5 XX Rigid Street
Advanced Clutch

ACT Mod-Twin 10.5 XX Rigid Street

Part Number:T3S-G13

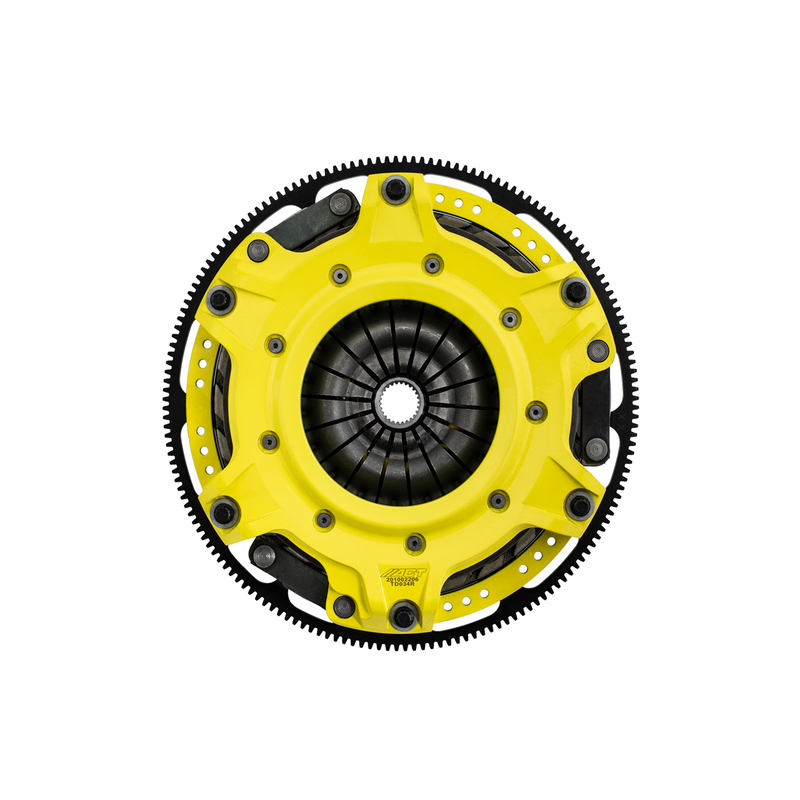

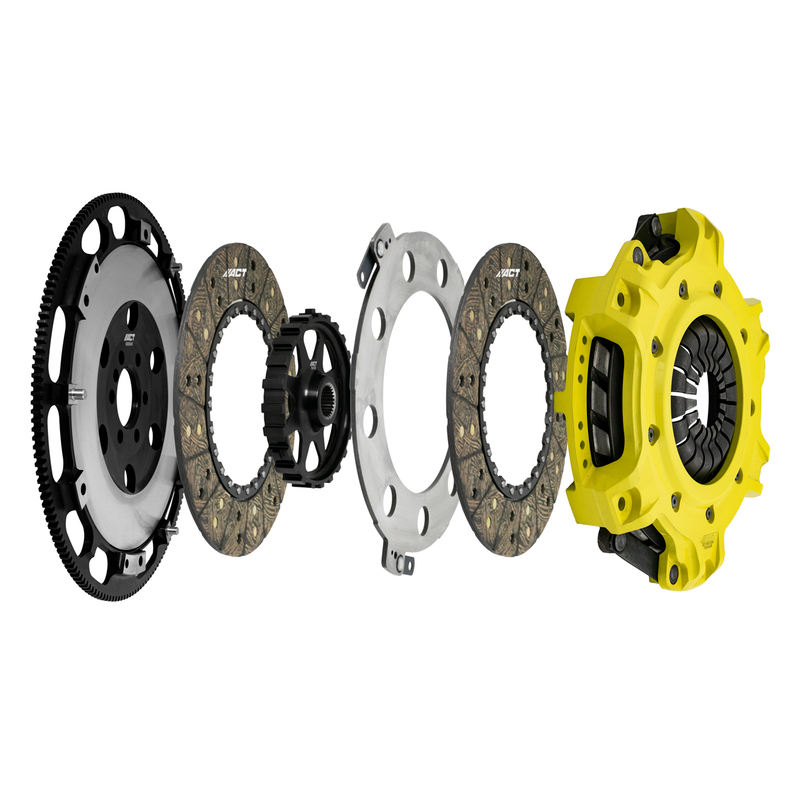

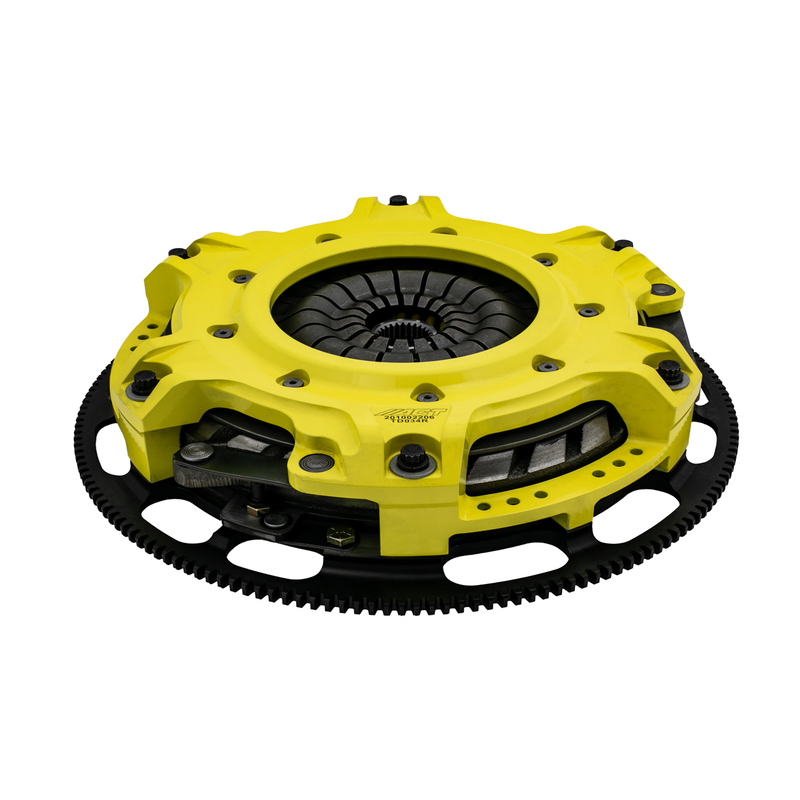

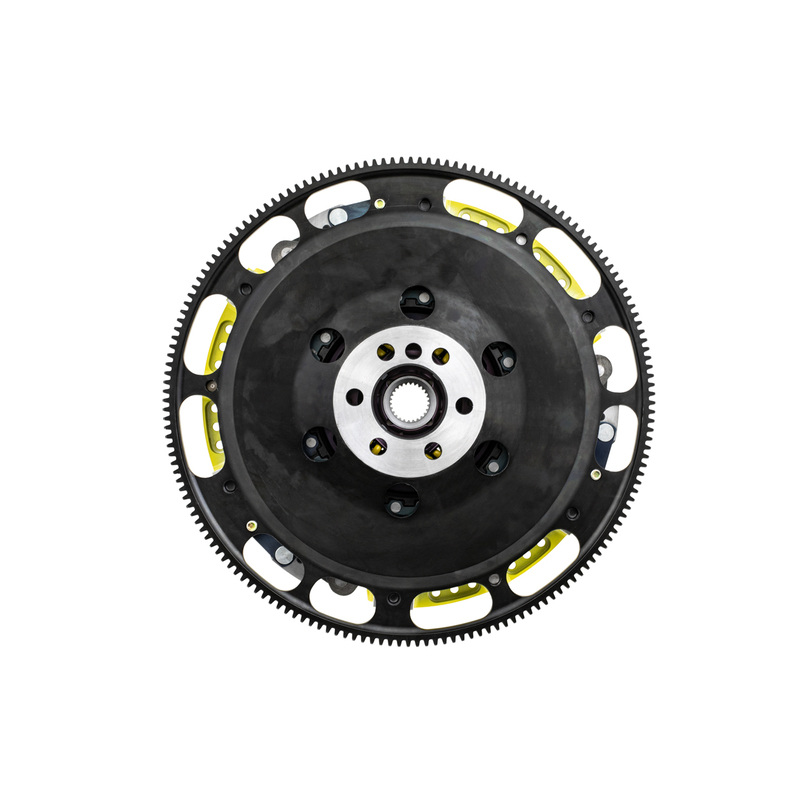

T3S-G13 Mod-Twin 10.5 XX Rigid Street Kit blends smooth but positive engagement with quick shifting for high-powered street machines by combining twice the organic friction surfaces with a no-nonsense solid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process to provide a consistent pedal feel requiring moderate effort. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive Chromoly hub, which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable, and replacement discs may be ordered separately.
  • "Excellence in Performance", backed by the best one-year warranty in the industry!
Retail price
  • $2,217.00
Features
  • SKU
    T3S-G13
  • Brand
    Advanced Clutch
  • Clutch Disc Diameter
    10.5 in.
  • Clutch Disc Diameter
    267 mm
  • Disc Material
    Organic
  • Grade Type
    Performance
  • Includes Alignment Tool
    Yes
  • Includes Flywheel
    Yes
  • Input Shaft Diameter
    1.125 in.
  • Input Spline Quantity
    26
  • Pressure Plate Series
    MaXX Xtreme
  • Prop 65 - Required to list in California with Warning
    Yes
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • SFI Certification Rating
    1.2
  • Torque Capacity
    1,169 ft/lbs.
