ACT Mod-Twin 10.5 XT Sprung Street
Advanced Clutch

ACT Mod-Twin 10.5 XT Sprung Street

Part Number:T2SS-G20

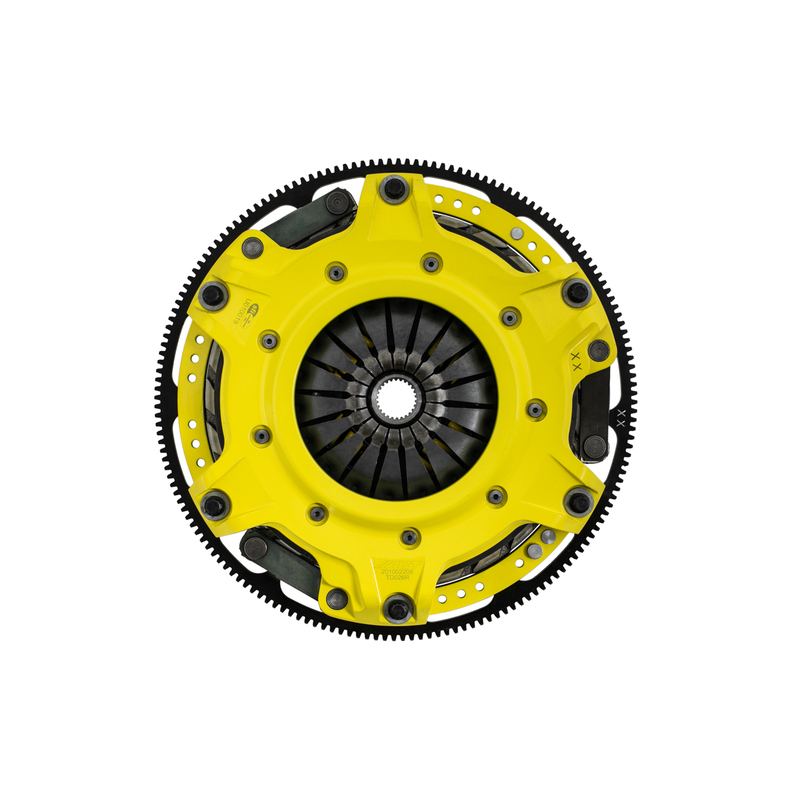

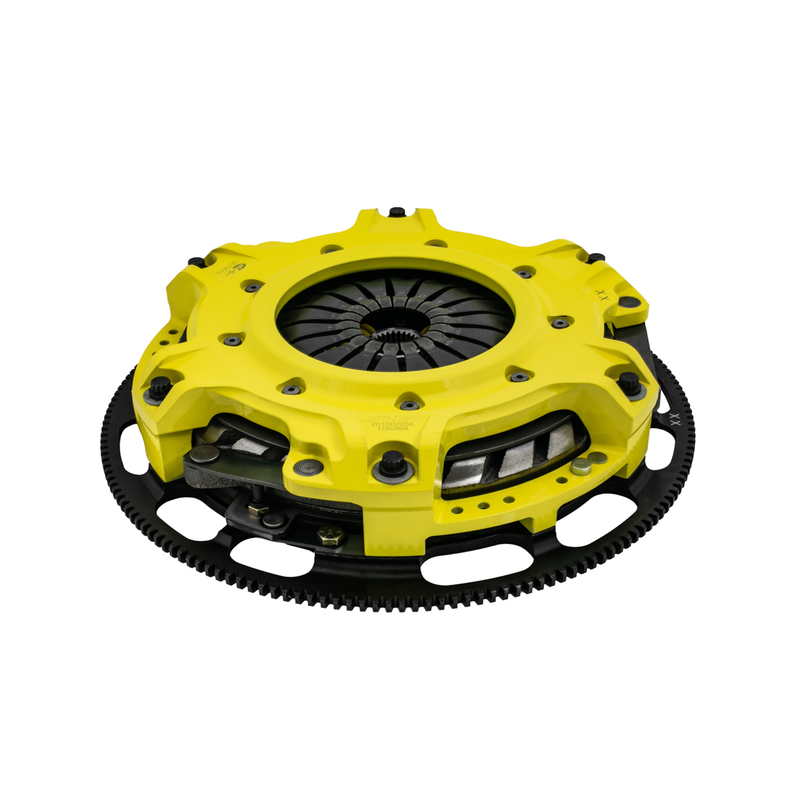

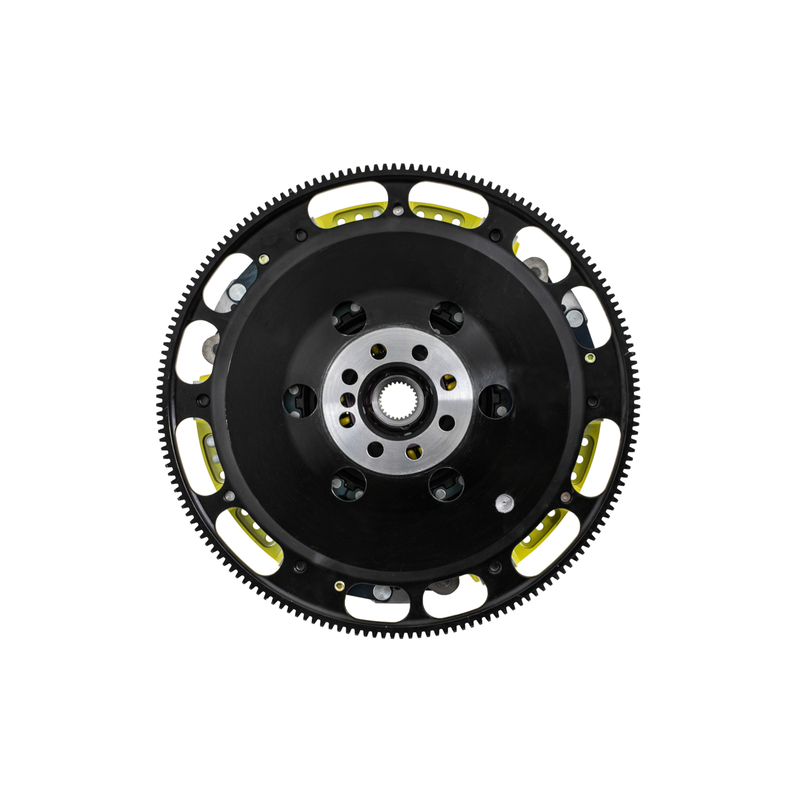

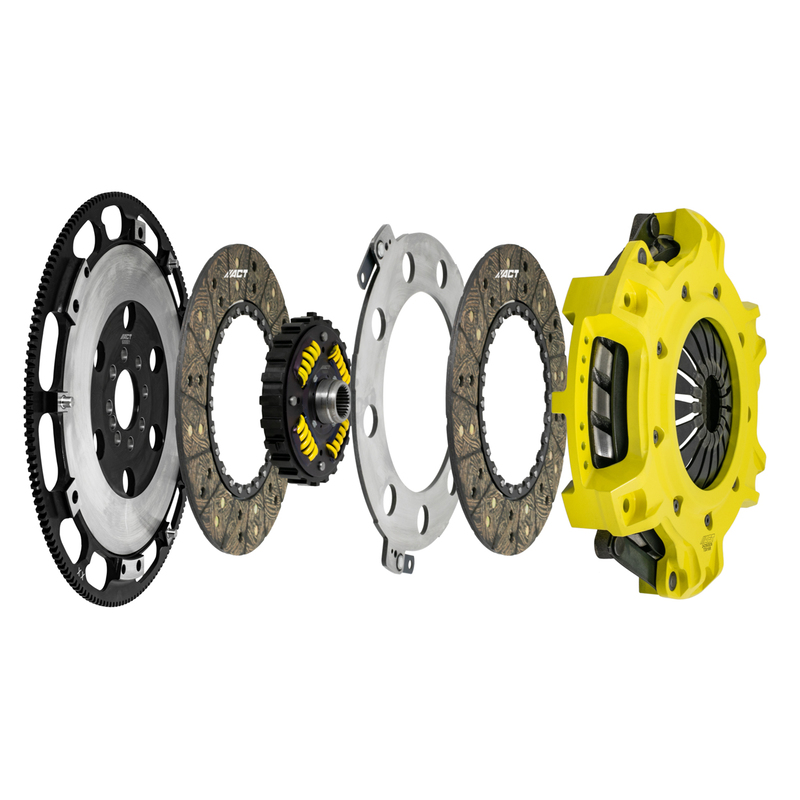

T2SS-G20 Mod-Twin 10.5 HD Sprung Street Kit is designed for high-powered street machines. It unites uncompromised pedal feel, durability, engagement quality with very high torque capacity by combining twice the organic friction surfaces with an ultra-durable sprung Mono-Drive hub assembly in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process to provide a consistent light pedal feel. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to the Mono-Drive sprung hub assembly, which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, alignment tool and pilot bearing (where applicable). Mod-Twin clutches are fully rebuildable, and replacement discs may be ordered separately.
  • "Excellence in Performance", backed by the best one-year warranty in the industry!
Retail price
  • $2,345.00
Features
  • SKU
    T2SS-G20
  • Brand
    Advanced Clutch
  • Clutch Disc Diameter
    10.5 in.
  • Clutch Disc Diameter
    267 mm
  • Disc Material
    Organic
  • Grade Type
    Performance
  • Includes Alignment Tool
    Yes
  • Includes Flywheel
    Yes
  • Input Shaft Diameter
    1.125 in.
  • Input Spline Quantity
    26
  • Pressure Plate Series
    Xtreme
  • Prop 65 - Required to list in California with Warning
    Yes
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • SFI Certification Rating
    1.2
  • Torque Capacity
    1,169 ft/lbs.
  • Torque Capacity Percentage Over Stock
    49%
  • Weight
    41.2 lbs. (18.7 kg)
