HEDMAN HEDDERS FORWARD FACING, TURBOCHARGER HEADERS FOR GM LS SERIES ENGINES (4.8L, 5.3L, 6.0L GEN III/IV); 1-3/4 IN. TUBE, T304 STAINLESS STEEL CONST
Hedman Hedders

HEDMAN HEDDERS FORWARD FACING, TURBOCHARGER HEADERS FOR GM LS SERIES ENGINES (4.8L, 5.3L, 6.0L GEN III/IV); 1-3/4 IN. TUBE, T304 STAINLESS STEEL CONST

Part Number:62120
Discontinued

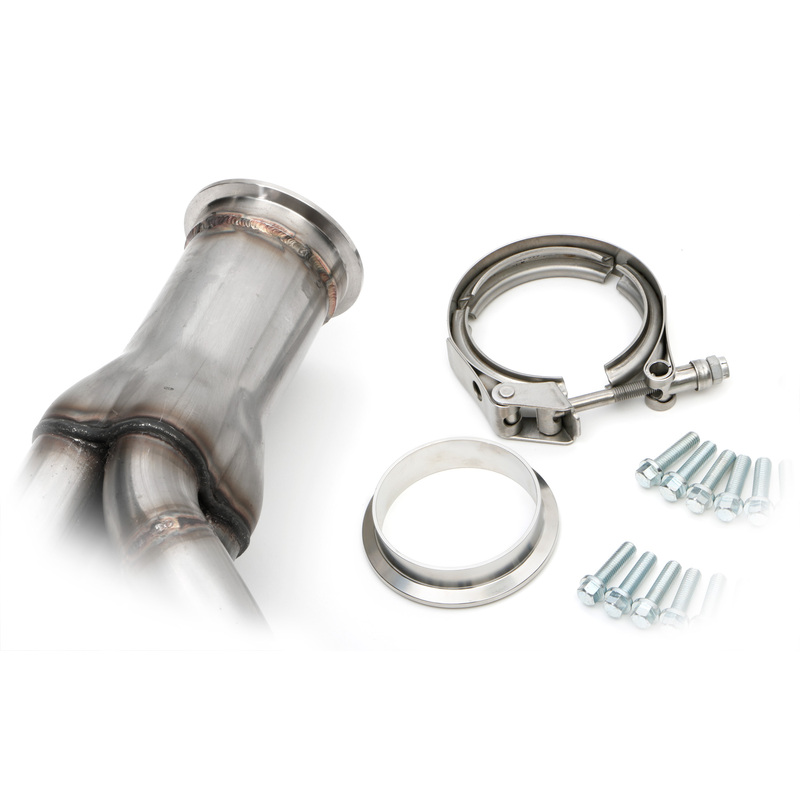

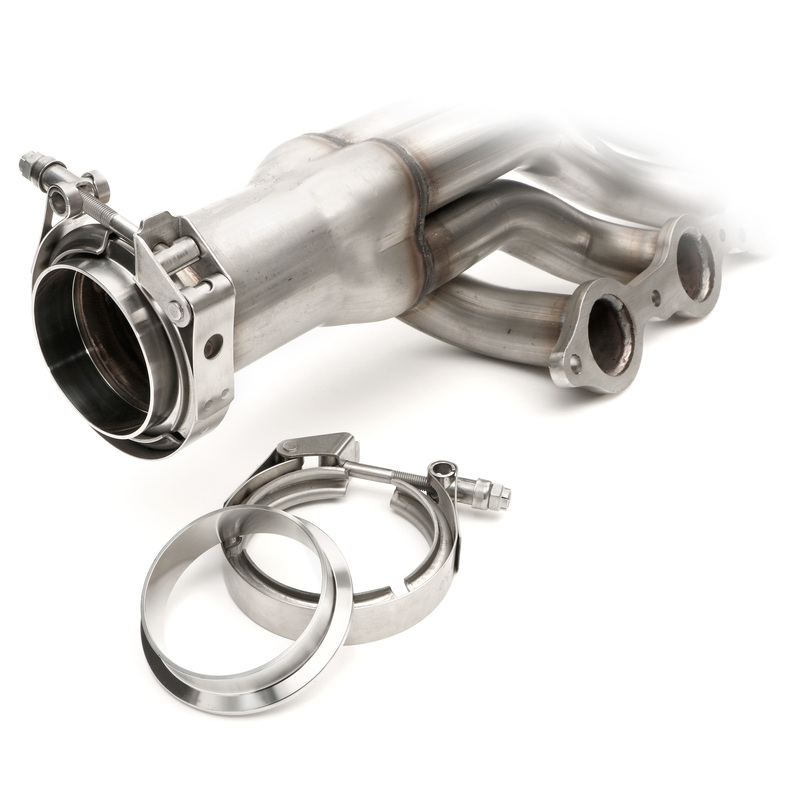

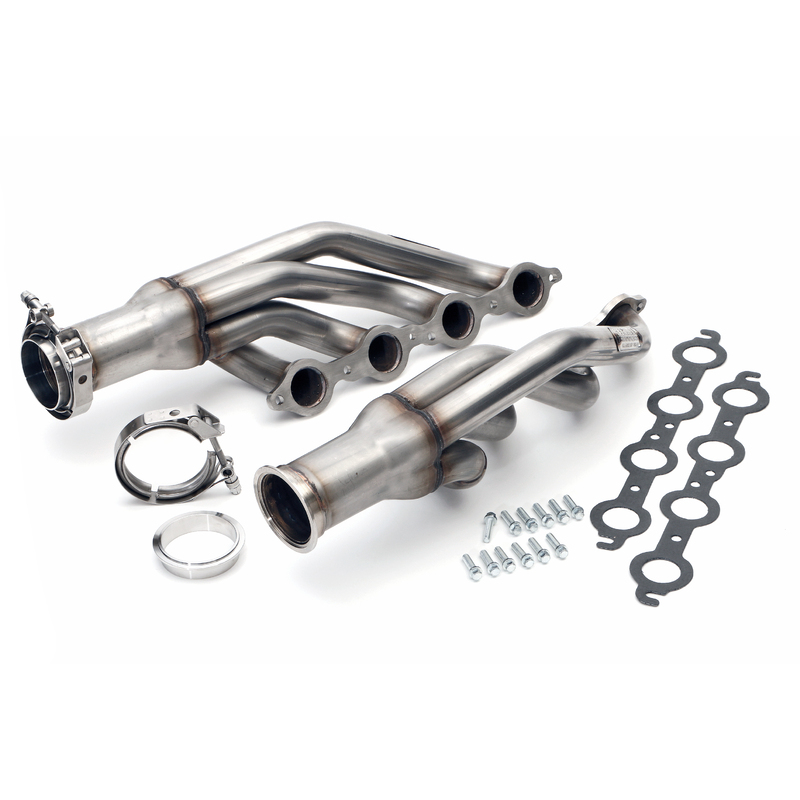

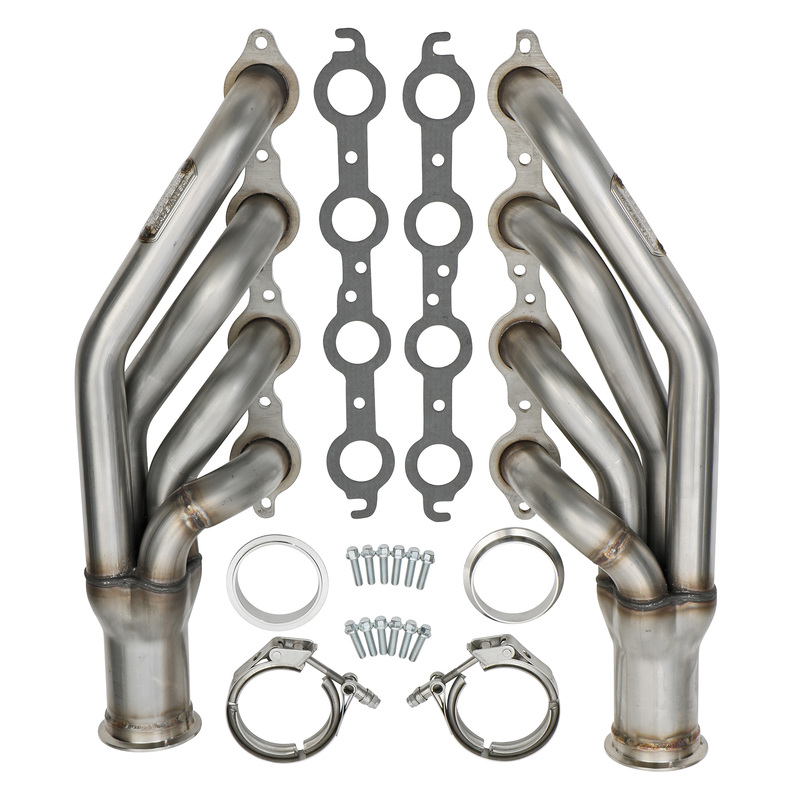

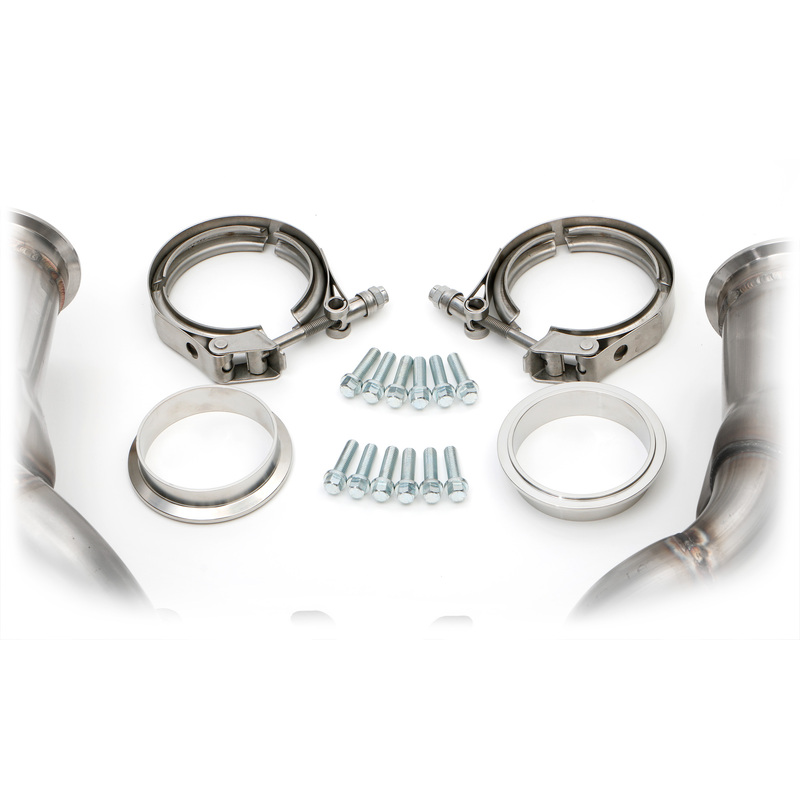

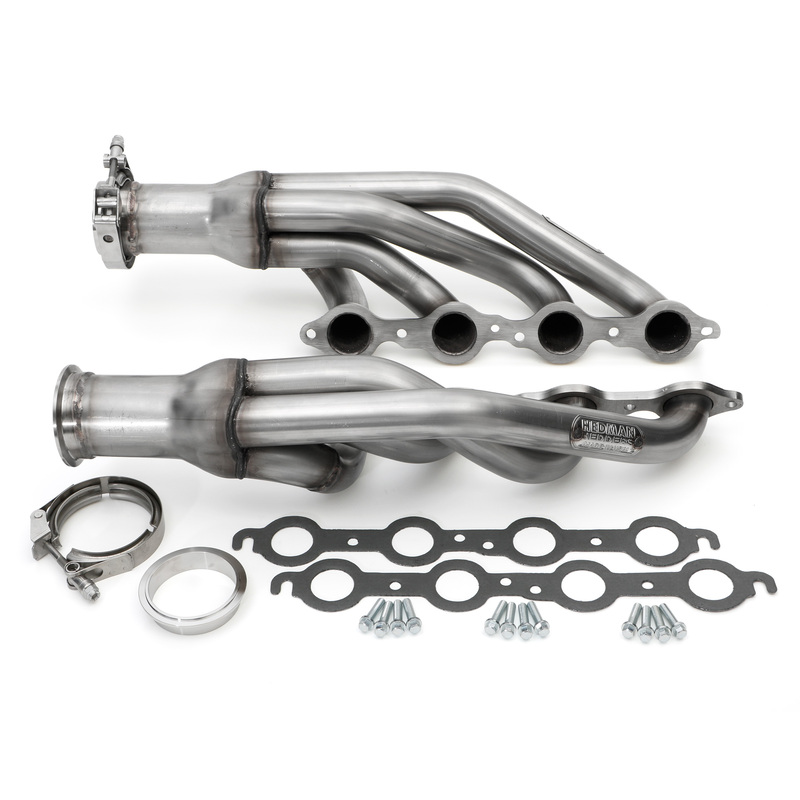

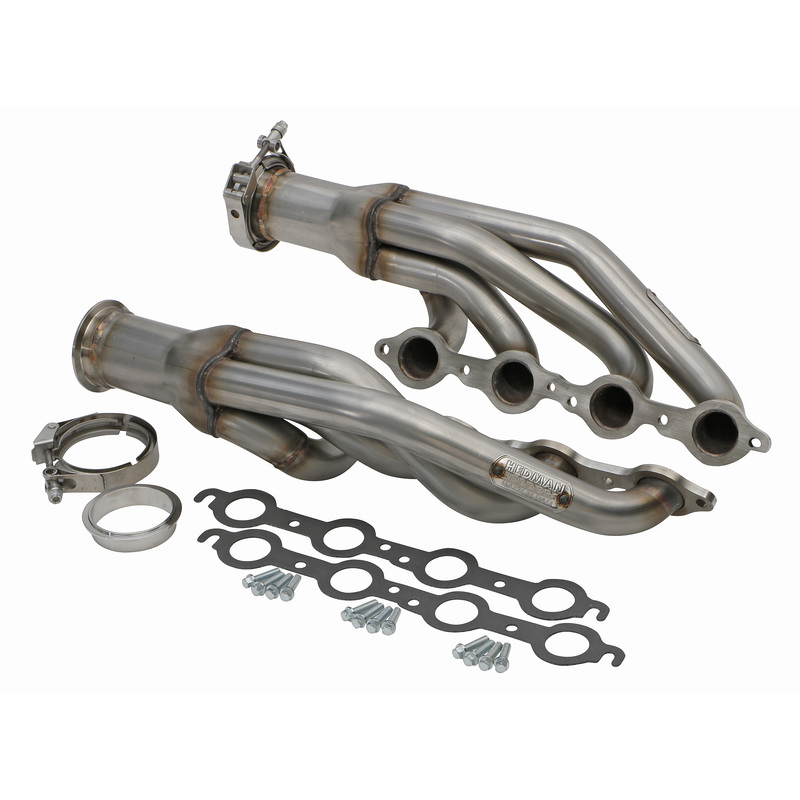

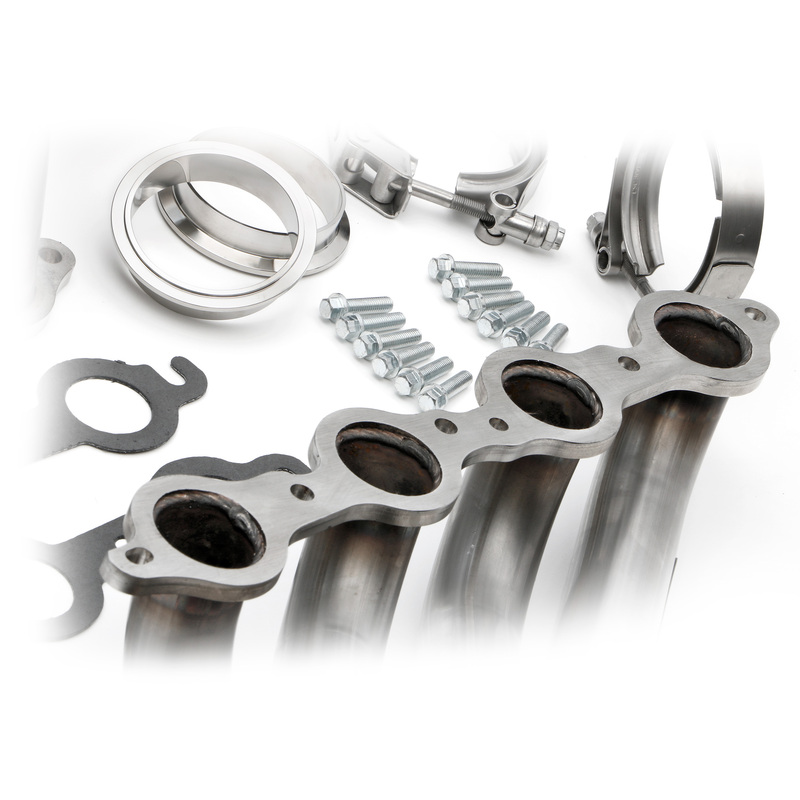

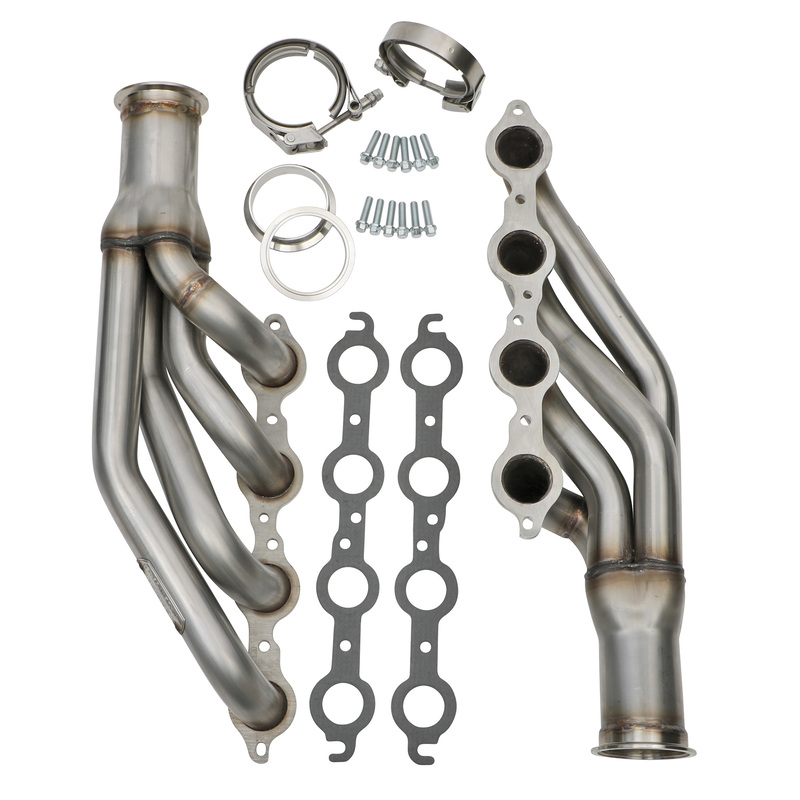

Hedman?s high-performance turbo headers are built in the USA using durable 16g T304 stainless steel primary tubes and bulletproof 3/8 in. T304 stainless flanges. All tubes are mandrel-bent to ensure a smooth flow of exhaust gasses to maximize the benefits of your turbo. Each pair of Turbo headers includes gaskets, mounting hardware, and V-band clamps to make integrating these headers into your turbo system easier and cost effective. This set fits GM 4.8L, 5.3L, 6.0L LS Series (GenIII/IV) Engines engines. These headers are uncoated, but coated models are also available. The headers are backed by Hedman's Limited Lifetime Warranty.
Retail price
  • $1,568.46
Features
  • SKU
    62120
  • Brand
    Hedman Hedders
  • 50-State Street Legal
    Please Refer to Vehicle Fitment Data for CARB EO Information
  • Air Conditioning
    No
  • Automatic Transmission - Column
    Yes
  • Automatic Transmission - Floor
    Yes
  • Collector Diameter
    3.0 in.
  • Cylinder Head Port Shape
    Round
  • Engine Fitment
    Chevy LS Series
  • Exhaust System Diameter
    3.0 in.
  • Finish
    Uncoated
  • Fitment Note
    Fits Stock Profile Heads
  • Flange Style
    Standard
  • Flange Thickness
    0.375 in.
  • Header Style
    Mid-Length
  • Includes Bolts/Studs
    Yes
  • Includes Catalytic Converters
    No
  • Includes Crossover Pipe
    No
  • Includes Gasket/Seal
    Yes
  • Includes Motor Mounts
    No
  • Includes Mounting Hardware
    Yes
  • Includes Reducers
    Yes
  • Manual Transmission - Column
    Yes
  • Manual Transmission - Floor
    Yes
  • Material
    T-304 Stainless Steel
  • O2 Provision
    No
  • Primary Tube Diameter
    1.75 in.
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Reducer Outlet Size
    3.0 in.
  • Replacement Head Flange Gasket Part Number
    27470
  • Replacement Manifold Gasket Part Number
    27470
  • Sold As
    Pair
  • Tube Design
    Standard
  • Tube Diameter
    1.75 in.
  • Tube Size
    1.75 in.
  • Tube Thickness
    16 ga
  • With Power Steering
    Yes
