Triple-R Single-Lamp Wiring Kit (2-Pin, Superseal, 12V) - 1L-LP-120
TRIPLE-R-LIGHTS

Triple-R Single-Lamp Wiring Kit (2-Pin, Superseal, 12V) - 1L-LP-120

Part Number:1L-LP-120

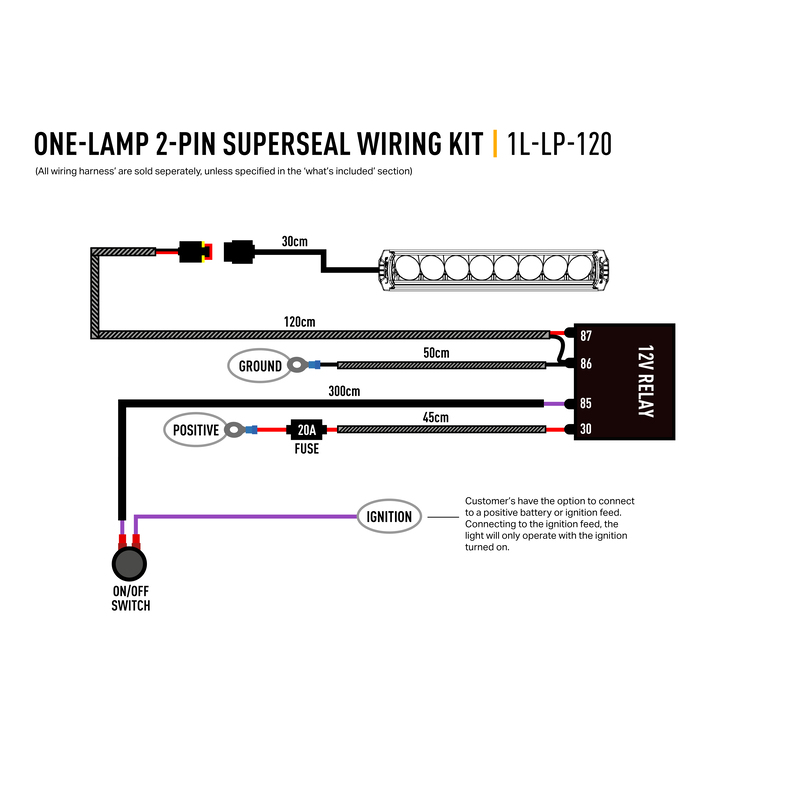

One-Lamp wiring kit for Triple-R Lights' High Performance LED lights. The setup is quick, easy, and reliable with 2-pin Superseal connection and no configuration procedures. The kit features a 12V relay (in waterproof housing), fuse, a battery terminal at one end, and 1.2m of flex on the lamp cable, and allows for the operation of Triple-R products either in parallel with the standard lighting on the vehicle (DOT/SAE approved products only), and/or via an independent switch which can be mounted inside your vehicle. All Triple-R Lights are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system. Compatible with: LR-750 Elite LR-850 Elite LR-1000 Elite Linear-6 Elite Linear-36 Linear-42 Linear-48 Sentinel 7'' Sentinel 9'' Elite

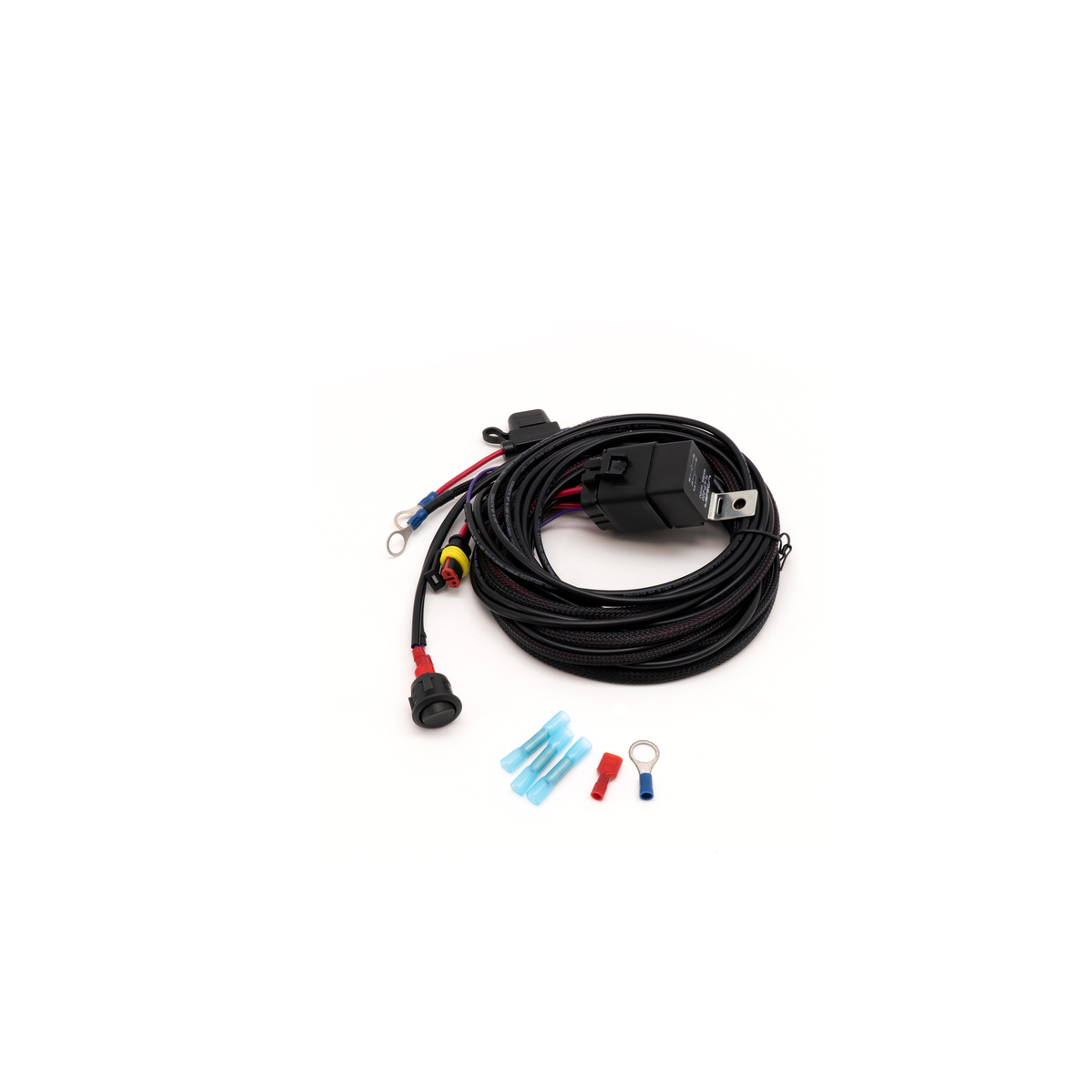

  • One-Lamp Wiring Kit for Triple-R LED Lights (see product description for compatibility)
  • 1.2m cable length
  • Includes 12V relay and 20 amp fuse
  • 2-pin Superseal connections
  • Includes optional on/off switch for independent operation of high beam
  • Braided cable sections for added protection in engine bay
Retail price
  • $45.00
Features
  • SKU
    1L-LP-120
  • Brand
    TRIPLE-R-LIGHTS
  • Color
    Black
  • Prop 65 - Required to list in California with Warning
    No
  • Voltage
    12.0V DC
Fitment
Installation
More Detail
Videos
