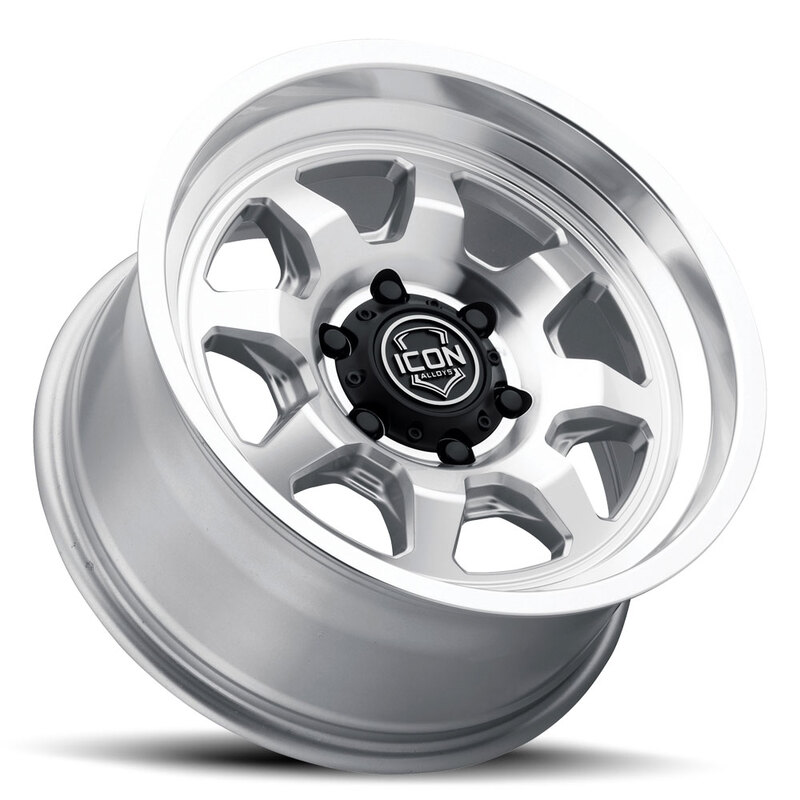

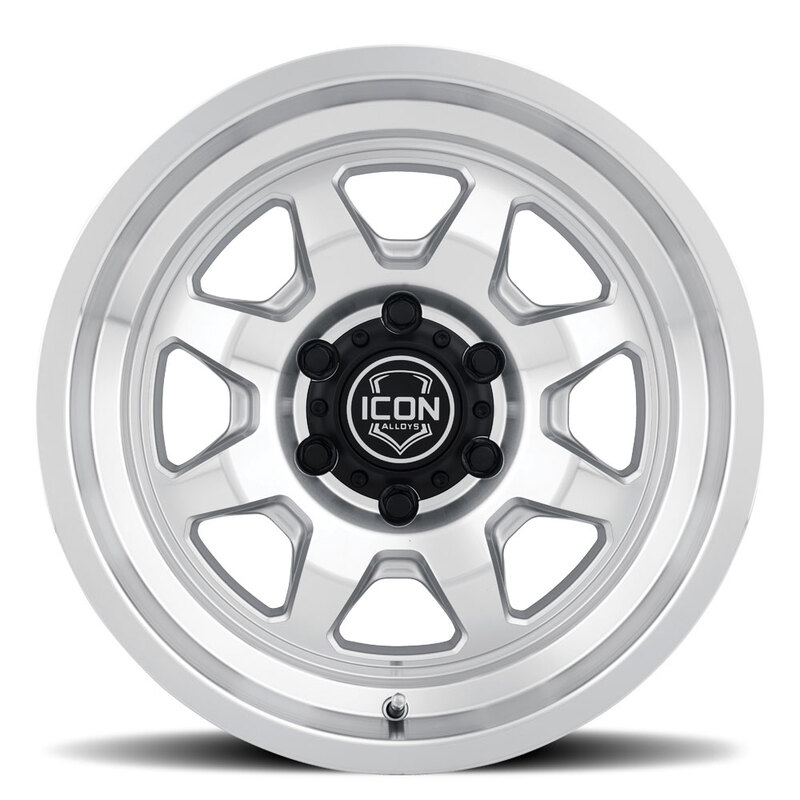

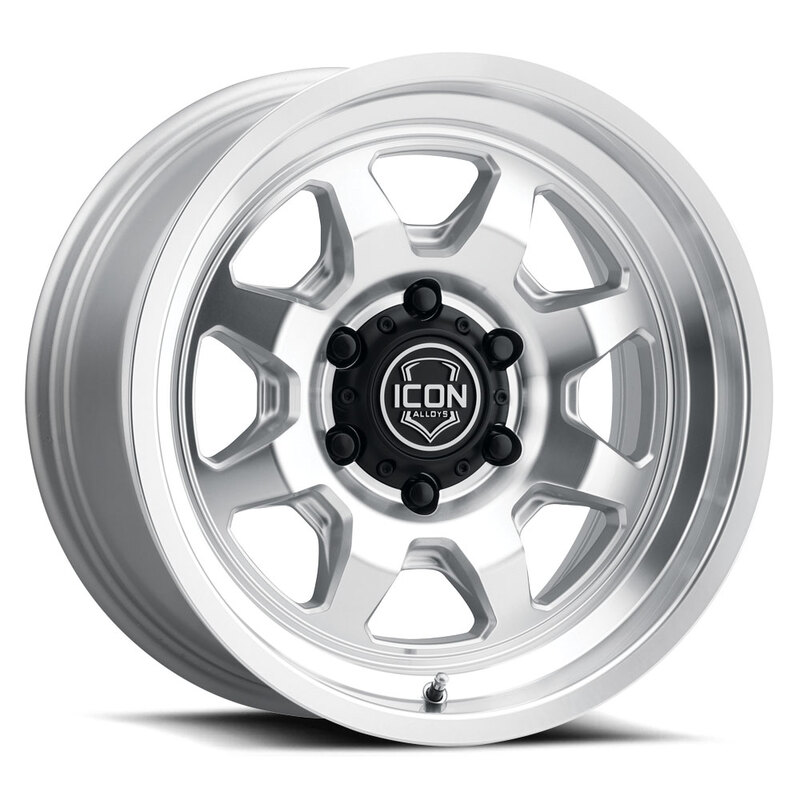

ICON Alloys Nuevo, Silver Machined, 17 x 8.5 / 6 x 5.5, 25mm Offset, 5.75" BS
ICON Alloys

ICON Alloys Nuevo, Silver Machined, 17 x 8.5 / 6 x 5.5, 25mm Offset, 5.75" BS

Part Number:8117859057SM
Teeming with offroad pedigree, the Nuevo’s modern take on a classic offroad look means all business. The timeless 8 spokes and deep step lip lend the Nuevo a purposeful look, on or off the trail. A sophisticated Silver Machined as well Satin black are offered in both 5 or 6 lug applications. Available offsets ranging from -6mm through +25 are perfect for making the Nuevo ‘at home’ on your ride.; Staying true to the ICON Alloys approach, the Nuevo has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace dimensions and wheel offset have been strategically developed to reduce scrub radius, improving all-around handling and ride quality and making a set of these wheels the perfect complement to an ICON Vehicle Dynamics suspension system.
  • Classic 8-spoke styling with deep step lip
  • 17" X 8.5" in 5-lug & 6-lug bolt patterns
  • Silver machined surface with clear powder coat finish for corrosion resistance
  • Application-specific dimensions optimize vehicle dynamics and tire clearance
  • Reduced unsprung weight and rotating mass improves on and off-road vehicle performance
  • Aluminum alloy construction provides strength properties that are well suited for off-road use
  • 2750lbs load rating
Retail price
  • $317.51
Features
  • SKU
    8117859057SM
  • Brand
    ICON Alloys
  • Backspacing
    5.75 in.
  • Diameter
    17.0 in.
  • Finish
    Powder Coated
  • Includes Center Cap
    Yes
  • Includes Lug Nut Insert
    No
  • Includes TPMS
    Yes
  • Includes Tires
    No
  • Includes Wheel Nuts
    No
  • Inside Diameter
    95.1 mm
  • Lug Hole Diameter
    1.1 in.
  • Lug Hole Quantity
    6
  • Lug Nut Seat Type
    Conical
  • Material
    Aluminum
  • Material
    Cast
  • Maximum Load Rating
    2,750 lbs.
  • Offset
    25 mm
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Split Type
    No
  • Spoke Quantity
    8
  • TPMS
    Is Compatible
  • Wheel Lug Hole Quantity
    6
  • Width
    8.5 in.
