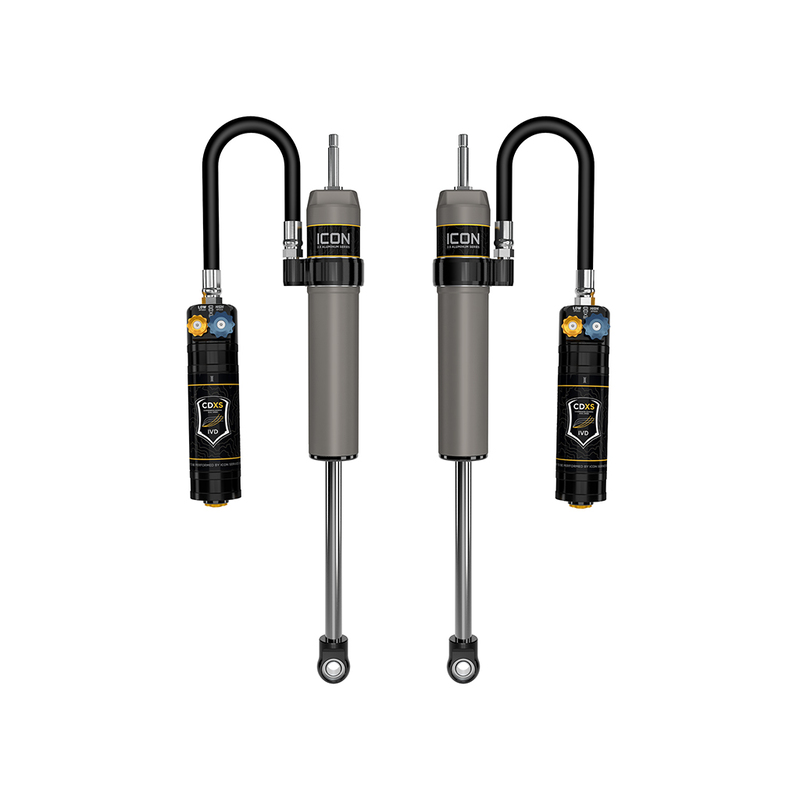

ICON 2024 Toyota Land Cruiser 250 Series/2024 Lexus GX550, 0-3” Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Remote Reservoir w/ CDXS, Pair
ICON Vehicle Dynamics

ICON 2024 Toyota Land Cruiser 250 Series/2024 Lexus GX550, 0-3” Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Remote Reservoir w/ CDXS, Pair

Part Number:57870XP

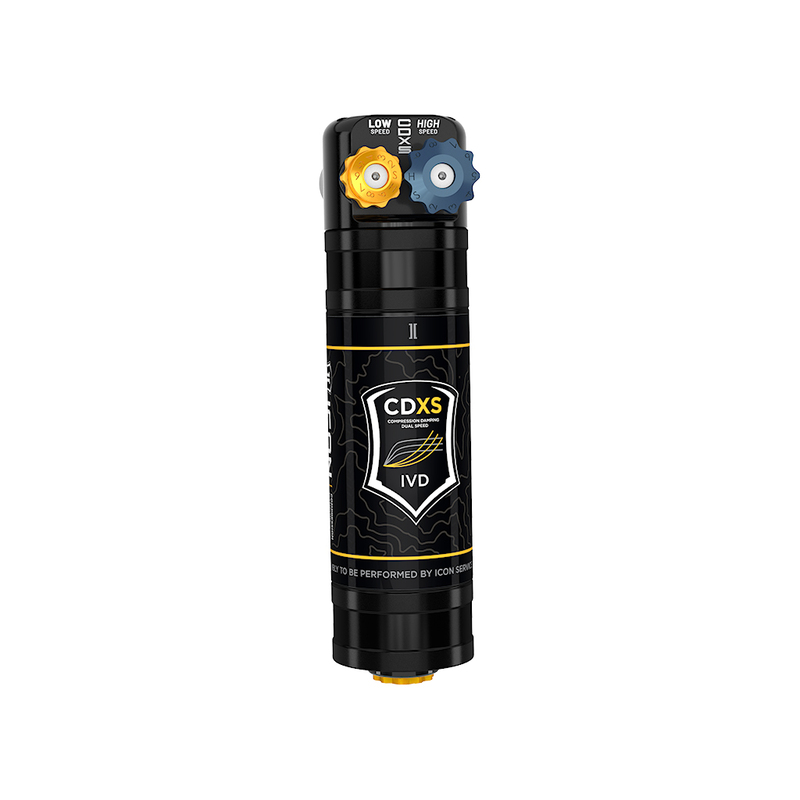

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness.
  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components
  • Fully rebuildable and re-tunable
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with remote reservoir

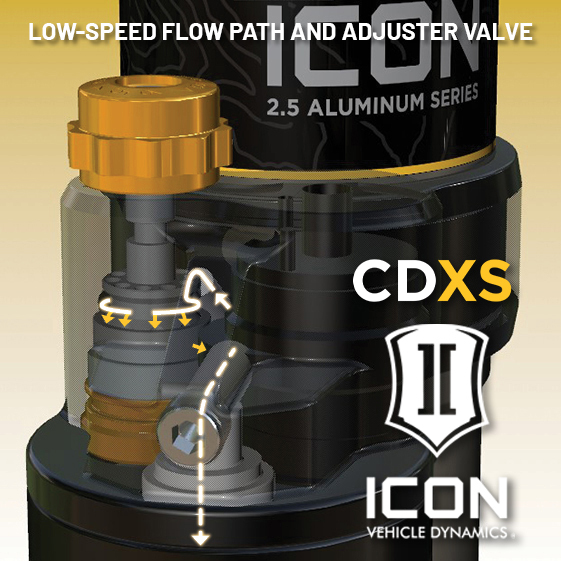

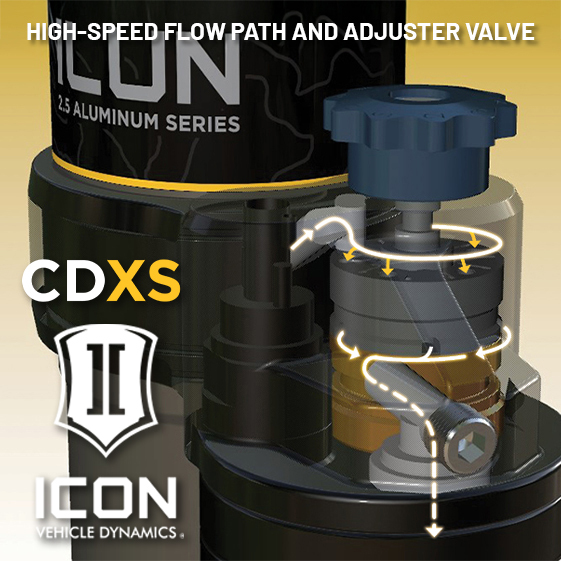

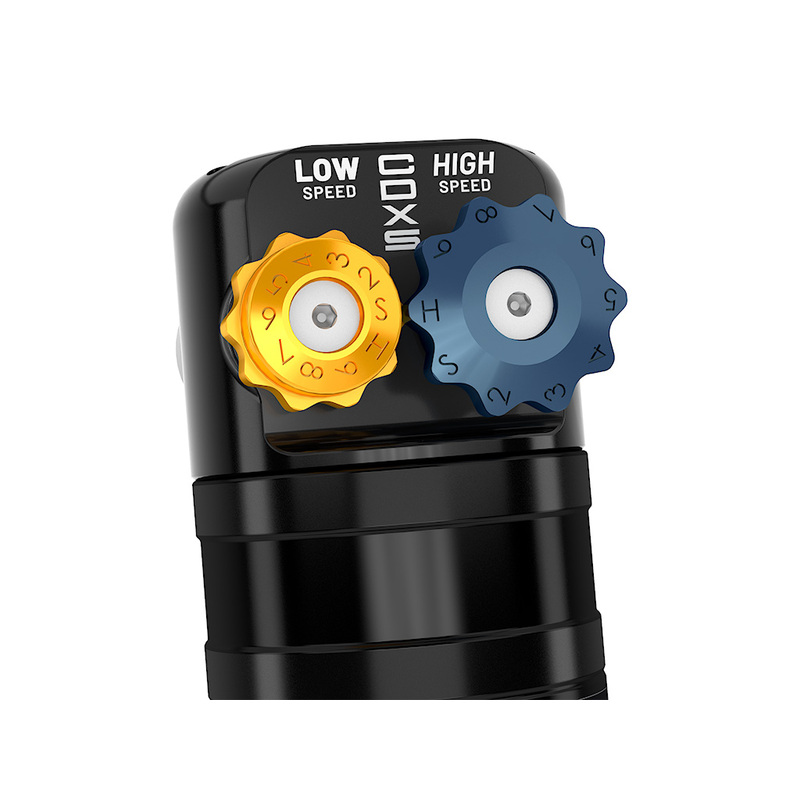

  • ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • Rubber dust boot included for added shaft protection
Retail price
  • $1,808.25
Features
  • SKU
    57870XP
  • Brand
    ICON Vehicle Dynamics
  • Adjustable
    Yes
  • Adjustable Damping
    Yes
  • Bore Diameter
    57.15.0 mm
  • Cylinder Diameter
    2.5 in.
  • Damping Type
    Oil
  • External Reservoir
    Yes
  • Gas Charged
    Yes
  • Grade Type
    Performance
  • Includes Boot
    Yes
  • Includes Mounting Hardware
    Yes
  • Lower Mount Type
    Eyelet
  • Mount Type - Upper
    Stem
  • Prop 65 - Short Label
    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Recommended Additional Part
    252011 - 2.5 Piggyback/remote Reservoir/bypass Rebuild Kit
  • Recommended Additional Part
    252012 - -4 TO -10 HOSE SHIELD KIT
  • Shaft Diameter
    0.875 in.
  • Shock Absorber Body End Measuring Point
    Shoulder of Stem
  • Shock Absorber Rod End Measuring Point
    Center of Eyelet
  • Tube Outside Diameter
    2.5 in.
