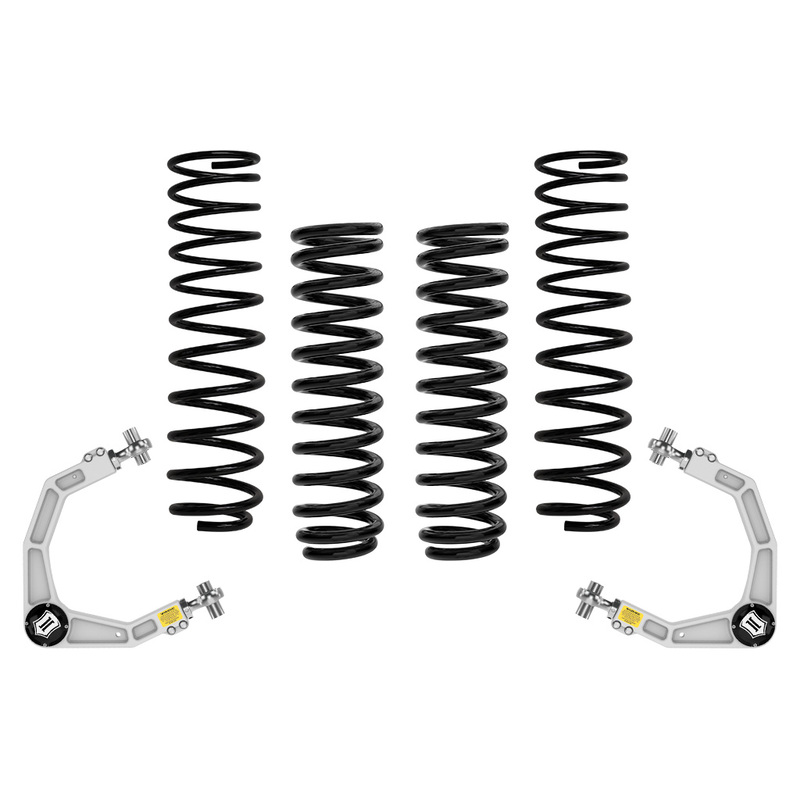

Transform your 2021-2024 Gen3 F-150 Raptor’s performance and stance with the ICON Vehicle Dynamics Stage 2 suspension system, engineered specifically for vehicles equipped with OE shock absorbers. The front coil springs utilize a linear spring rate for consistent performance and precise handling while delivering 2.25" of front lift for standard Raptors and 2" for Raptor R models, ensuring an aggressive look and increased ground clearance. Designed for seamless compatibility, they maintain full electronic shock functionality while enhancing your truck's capability and ride quality.; The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2021-2024 Ford F-150 Raptor with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.; This Stage 2 system is configured for more upfitted Raptors that have constant load in the bed, with triple-rate rear coil springs tailored to deliver a 1" rear lift on Raptors with approximately 300lbs of additional rear weight. ICON-engineered droop, ride, and overload rates ensure optimal suspension performance across a variety of driving conditions. The performance ride rate balances comfort and compliance, while the overload rate enhances load handling and bottom-out resistance. For maximum articulation and efficiency, the rear coils feature a tapered wire design, providing exceptional droop travel and off-road capability.; Built for both durability and ease of installation, these springs feature a dual-stage powder coating that protects against corrosion in any environment. Their bolt-on design eliminates the need for cutting or modifications, allowing for a straightforward install. Backed by a lifetime guarantee against sagging or breakage, these coil springs redefine your Raptor’s on- and off-road performance, delivering unmatched reliability and confidence wherever the journey takes you.
- Vehicle specific design for the Gen3 F-150 Raptor equipped with OE shock absorbers
- Performance ride rate for compliance and comfort, overload rate for load and bottom out resistance, extra soft initial rate for maximum droop travel
- Tapered wire rear coil design achieves maximum travel and efficiency
- Significantly improves on- and off-road ride quality and performance over stock
- Bolt-on installation with no cutting required
- Dual stage powder coating for maximum corrosion resistance
- Lifetime guarantee against sagging/breakage
- Front coils yield 2.25" front lift height over stock on Raptor or 2" of front lift on Raptor R
- Compatible with all versions of available OE shock absorbers
- Maintains electronic shock functionality
- Linear rate front coil springs

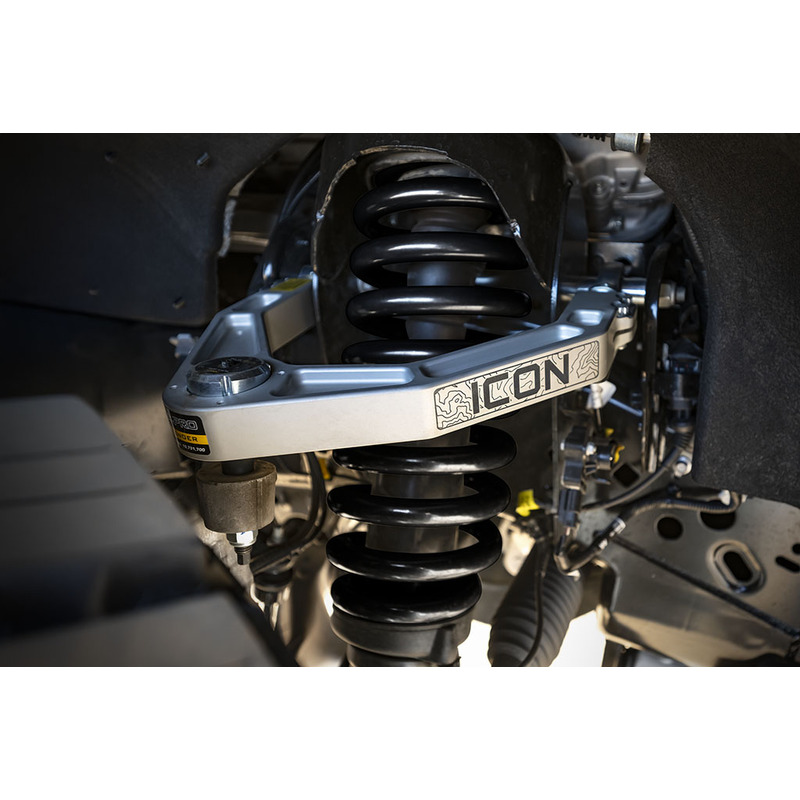

- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- 1" rear lift height over stock on Raptors with approximately 300lbs of additional weight in the rear
- Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
